UL 1015 Wire and Cables
Home /

Appliance Wiring Material

/

UL 1015 Wire and Cables

/

UL 1015 good price copper wire Hook-Up Wire and Cables

UL 1015 hook-up wire
UL 1015 hook-up wire
UL 1015 hook-up wire
UL 1015 hook-up wire
UL 1015 hook-up wire

UL 1015 good price copper wire Hook-Up Wire and Cables

UL 1015 good price copper wire Hook-Up Wire and Cables, are PVC hook-up wire which is an Appliance Wiring Material (AWM) style that is based on the requirements of UL Standard 758, Appliance Wiring Materials. AWM 1015 is a general style for a single conductor wire that has an 80, 90 or 105°C temperature rating. UL 1015 wire also has a wide variety of applications including internal wiring for appliance and electronic equipment, panels, meters, point-to-point wiring, wiring and cable assemblies in data and electronic equipment and many other applications.
  • Brand:

    Seebest
  • Item NO.:

    Seebest-EX-027
  • Order(MOQ):

    3000
  • Payment:

    T/T, L/C, Cash.
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 3-7 working days as soon as we received the deposit.

UL 1015 good price copper wire Hook-Up Wire and Cables



PRODUCTS NAME

UL 1015 good price copper wire Hook-Up Wire and Cables.

PRODUCTS KEYWORDS

UL1015, hook up wire, copper wire, pvc insulated cable, electrical wire, electronic wire, electric cable, wire and cables, good price.

PRODUCTS APPLICATION

UL 1015 good price copper wire Hook-Up Wire and CablesUL 1015 wire also has a wide variety of applications including internal wiring for appliance and electronic equipment, panels, meters, point-to-point wiring, wiring and cable assemblies in data and electronic equipment and many other applications.

     UL1015 hook-up wire

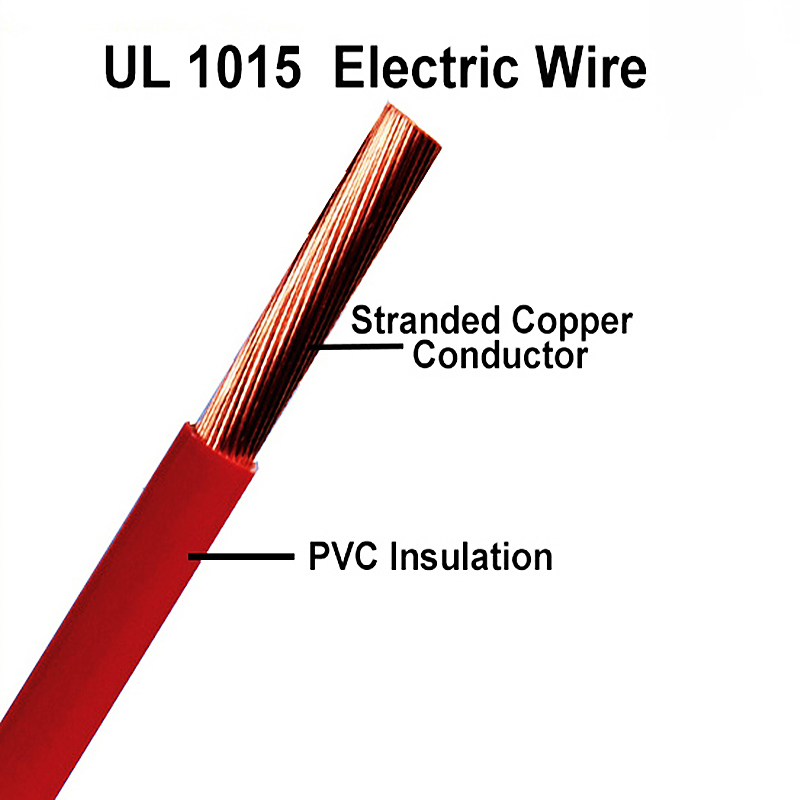

PRODUCTS STRUCTURE

UL 1015 good price copper wire Hook-Up Wire and Cables, the structure as below:

---Conductor Material

Plain annealed copper wire; tinned copper; stranded Class 2.

---Insulation Material

PVC (polyvinyl chloride).

---Sheath Material

Non-Sheath.a

PRODUCTS DESCRIPTION

 Description

of Cable

 Products Main Technical Sheet
 Products Name

 UL 1015 good price copper wire Hook-Up Wire and Cables

 Conductor Material

 Plain annealed copper wires; tinned copper, stranded Class 2.

 Conductor Structure  7/0.20 mm.
 Insulation Material  PVC (Polyvinyl Chloride), comply with RoHS requirement.
 Insulation Thickness  0.83 mm.
 Insulation Colour  Red, yellow, blue, green, black, grey, white, yellow/green, or others.
Sheath Material  Non-sheath.
 Conductor Cross-section  24 AWG.
 Core Number  Single core, 1 core, 1C.
 Out Diameter  2.25 mm.
 Voltage Rate  600V.
 Max. Working   Temperature  105℃

 Max. Conductor DC

 Resistance at 20

  in Air

 94.2 Ω/km.

 Min. Insulated

 Resistance at 20

 15 MΩ.km.

 Dielectric Strength

 VAC 1 Minuter

 2,000.
 Production Standard  UL1015, UL758, UL1581, CSA C22.2 No. 210.2.
 Remarks  UL VW-1, CSA FT1 and JQA-F-Mark flame test.

           UL 1015 electronic wire
