what are you looking for?
Brand:
SeebestItem NO.:
Seebest-EX-061Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit.AS/NZS 5000.2 BVVB Flat TPS PVC Insulated Electrical Cables
PRODUCTS NAME

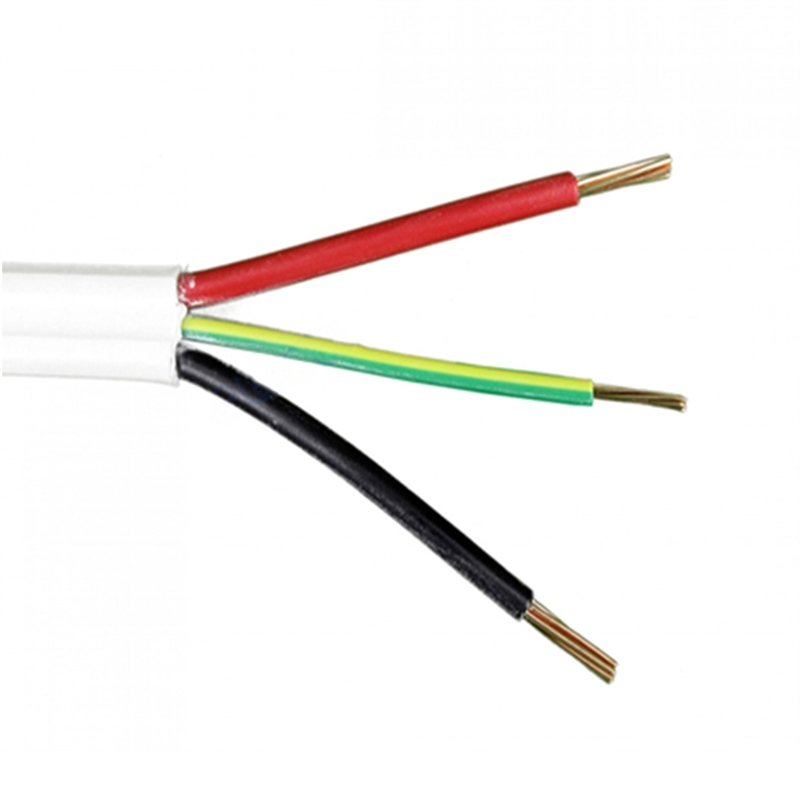

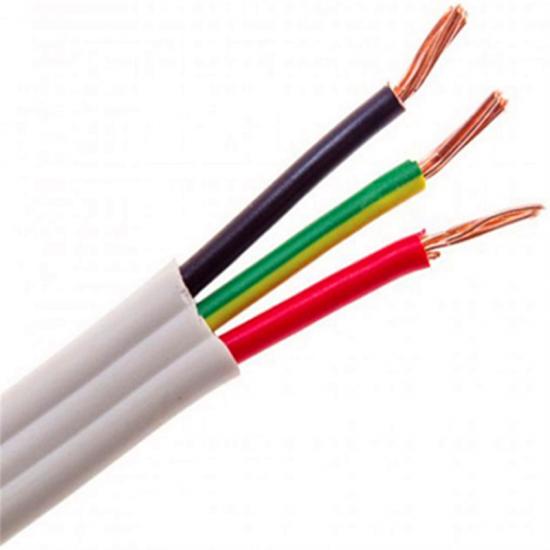

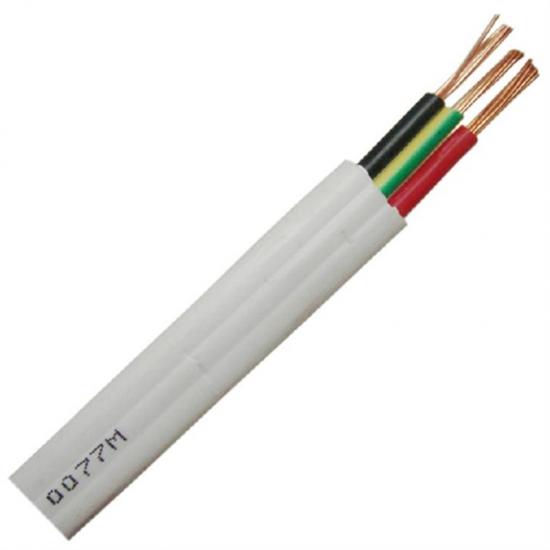

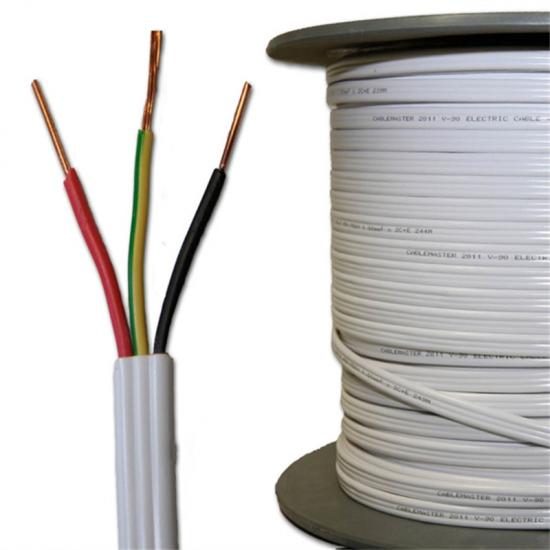

AS/NZS 5000.2 BVVB Flat TPS PVC Insulated Electrical Cables
PRODUCTS KEYWORDS
BVVB, AS/NZS 5000.2, flat TPS cable, flat TPS and earth cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
AS/NZS 5000.2 BVVB Flat TPS PVC Insulated Electrical Cables, the BVVB flat TPS cable is used in building wiring, installation on insulator or cable conduit, and widely used in household appliances. But cables cannot be installed in conduit or buried underground. BVVB flat twin cable, it is simply understood that 2 or 3 pieces BV cables are placed in parallel, and a layer of sheath material is added outside, the cable’s surface and appearance is flat, is not round.

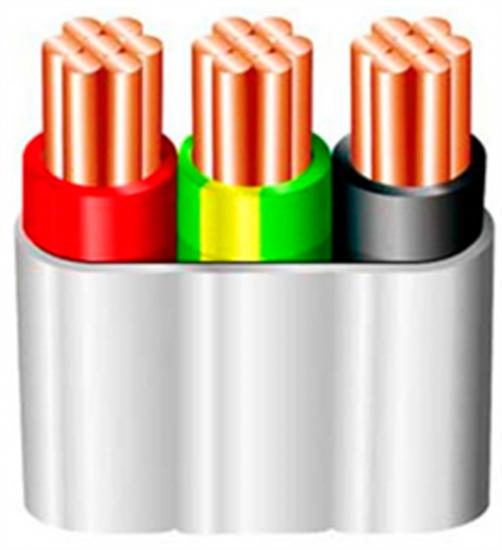

PRODUCTS STRUCTURE

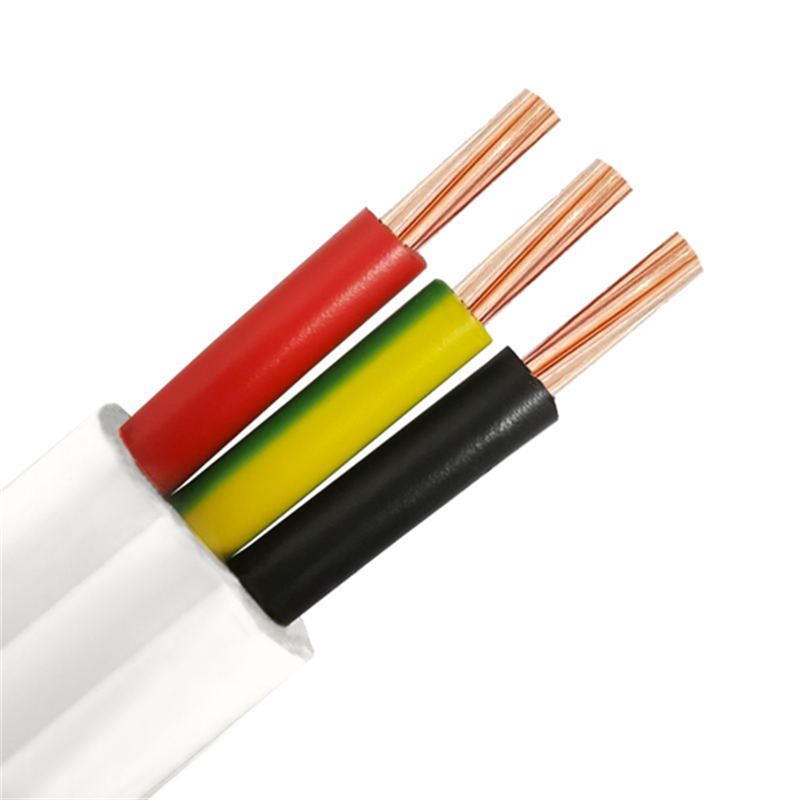

AS/NZS 5000.2 BVVB Flat TPS PVC Insulated Electrical Cables
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
V-90 PVC (polyvinyl chloride).
---Sheath Material
3V-90 easy-tear PVC (polyvinyl chloride).
---Core Number
2 Cores, 3 Cores; 2C, 3C, 2C+E.
---Products Surface
Flat, it is not ground and circular.
PRODUCTS DIMENSIONS
| Description of Cable | Products Main Technical Sheet |
| Products Name |
AS/NZS 5000.2 BVVB Flat TPS PVC Insulated Electrical Cables. |
| Products Size | 2x2.5+1x2.5mm2. |
| Conductor Material | Plain annealed copper wire, Class 2 stranded. |
| Conductor Structure | 2C x 7/0.68 mm. |
| Insulation Material | V-90 PVC (Polyvinyl Chloride). |
| Insulation Thickness | 0.7 mm. |
| Insulation Colour | Red, black. |
| Earth Conductor | Plain annealed copper wire, Class 2 stranded |
| Earth Conductor Structure | 1C: 7/0.68 mm. |
| Earth Insulation |
V-90 PVC (Polyvinyl Chloride) |
| Earth Insulated Thickness | 0.7mm |
| Earth Colour | Yellow/green |
| Sheath Material | 3V-90 easy-tear PVC (Polyvinyl Chloride). |
| Sheath Thickness | 1.0 mm. |
| Sheath Colour | White. |
| Core Number | 2 cores plug earth, 2C+E. |
| Out Diameter | 5.4 x 12.2 mm. |
| Voltage Rate | 450/750V (U0/U). |
| About Net Weight | 140 kg/km. |
| Production Standard | AS/NZS 5000.2. |

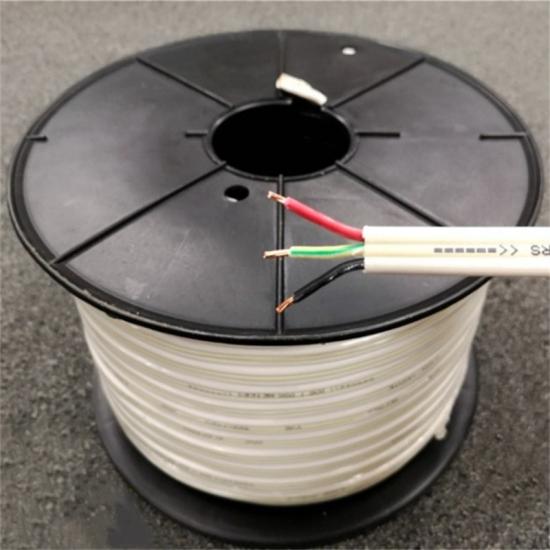

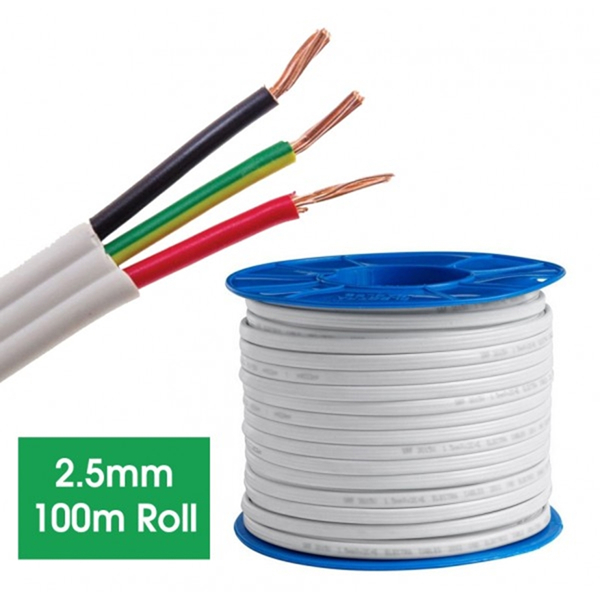

| Packing Type |

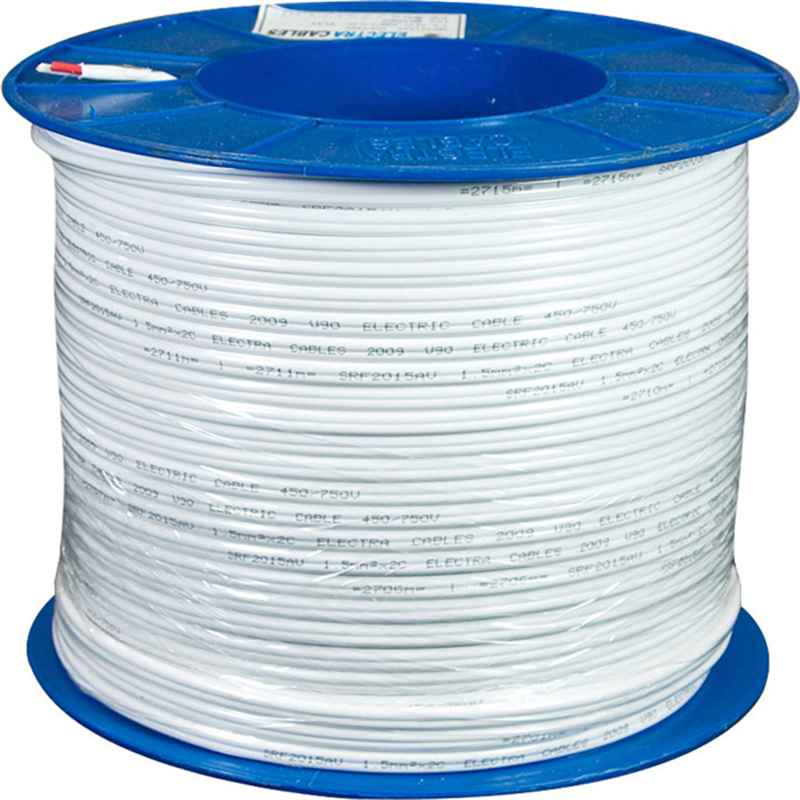

100m/roll; 100 meters per plastic reel, or according to the customers requirements. |
COMPANY PROFILE
WirCablesPro, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.
COMPANY ADVANTAGE
---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.
COMPANY SLOGAN
---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,
Technology Supporter, and Sales Assistant in Wire and Cables Industry.
COMPANY FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.
2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.
3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm2, the MOQ is 5,000 meters;
For the Power Cables more than 25mm2, the MOQ is 1,000 meters;
For the networking cables, the MOQ is 100 boxes/cartons;
For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.
For other customized wire and cables, please negotiate the MOQ with us immediately
