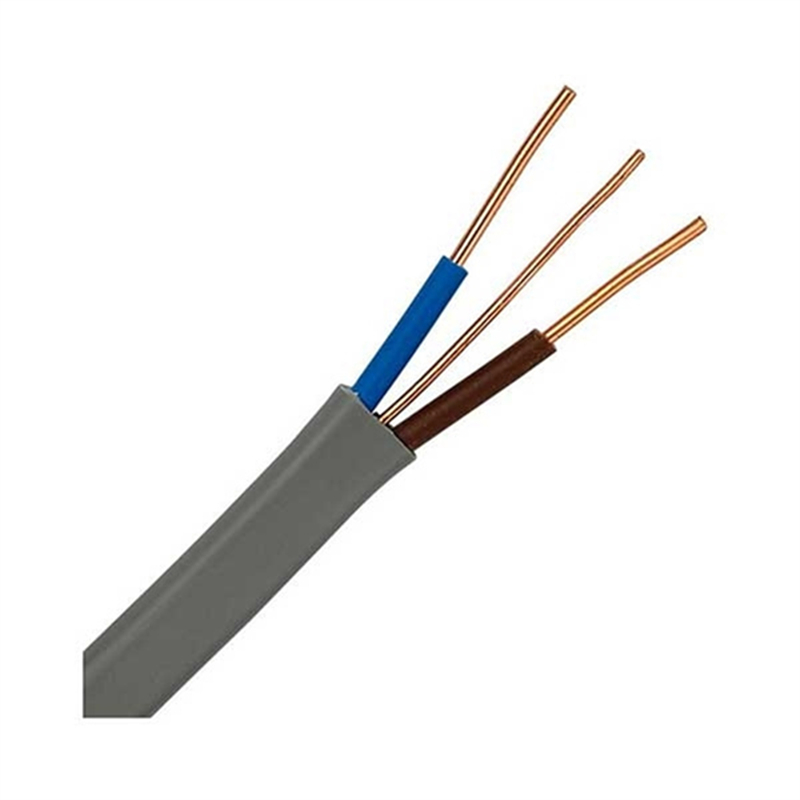

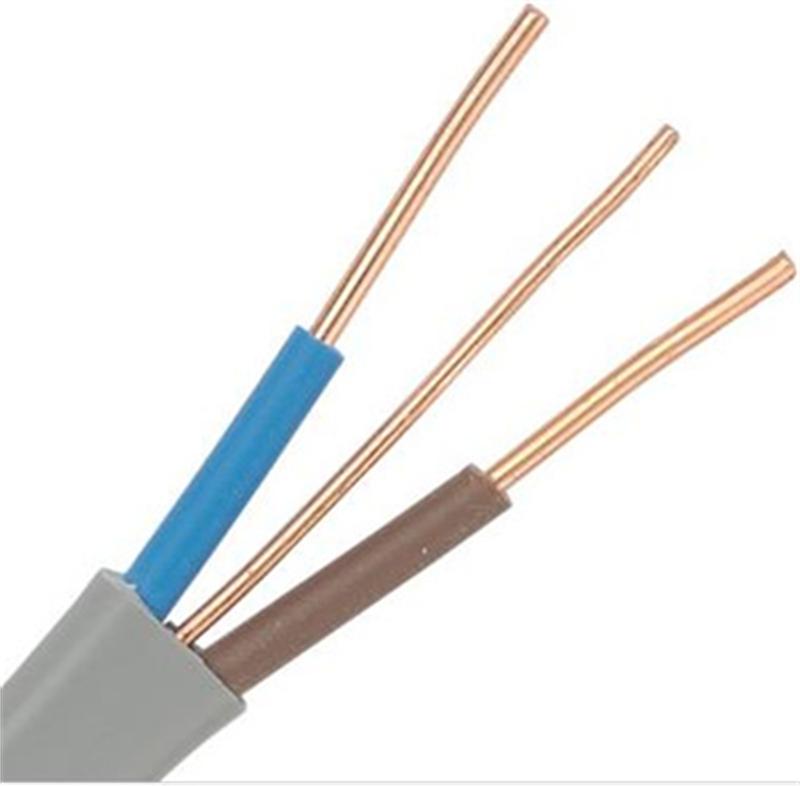

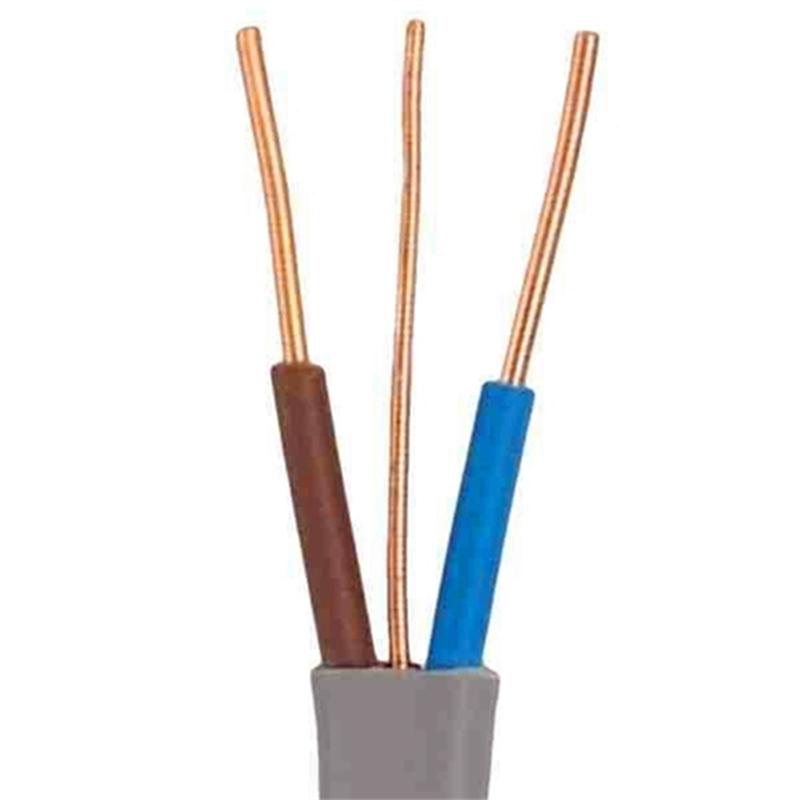

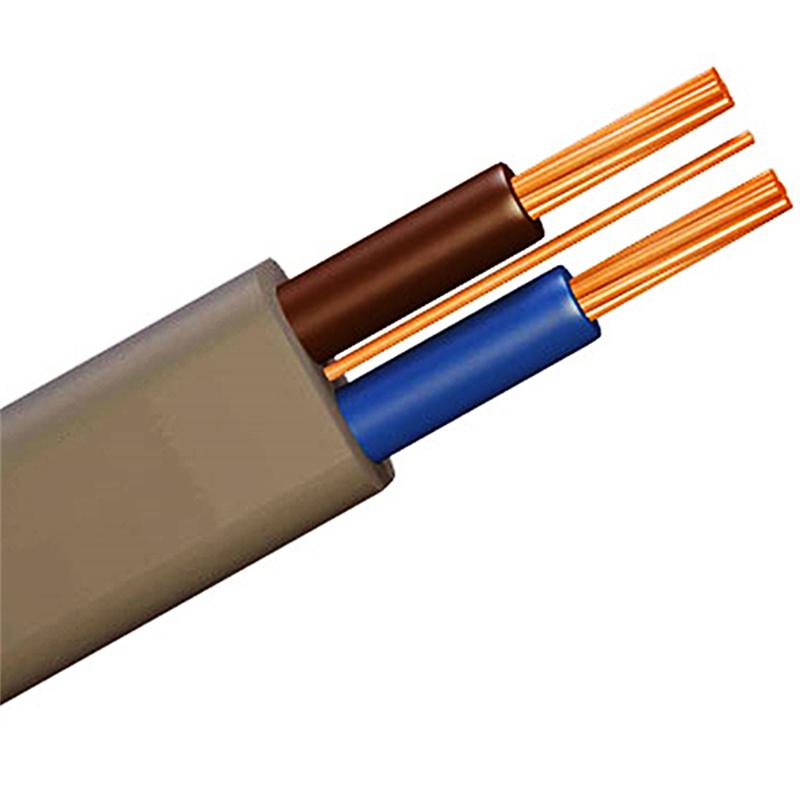

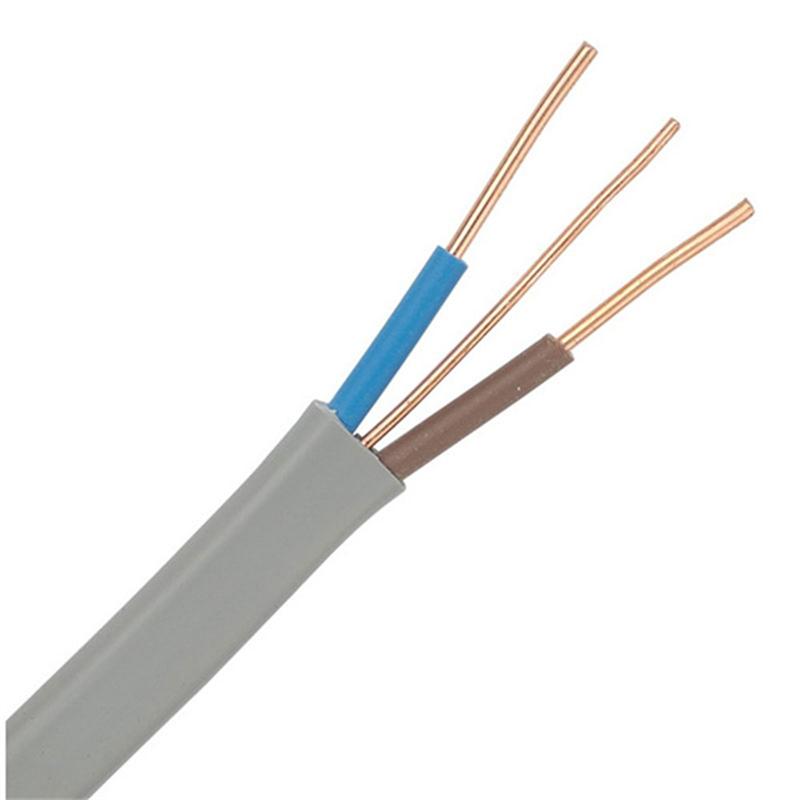

BS6004 6242Y Flat Twin and Earth PVC Insulated Electrical Wire and Cables. 6242Y is a flat PVC sheathed low voltage wiring cable typically used for small power and lighting applications. Individual cores are PVC insulated with two and three core options available, both include an additional un-insulated circuit protective conductor.
Brand:
SeebestItem NO.:
Seebest-EX-008Order(MOQ):
3000Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 5-7 working days as soon as we received the deposit.BS 6004 6242Y Flat Twin and Earth PVC Insulated Electrical Wire and Cables
PRODUCTS NAME
BS 6004 6242Y Flat Twin and Earth PVC Insulated Electrical Wire and Cables.
PRODUCTS KEYWORDS
6242Y, 6243Y, BVVB, flat twin cable, flat twin and earth cable, twin & earth cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
BS 6004 6242Y Flat Twin and Earth PVC Insulated Electrical Wire and Cables, domestic wiring cable. Can be installed in fixed installations in dry or damp premises clipped to surface, on trays or in free air where the risk of mechanical damage would not be an issue. Suitable for laying in conduit or trunking where mechanical protection is required.

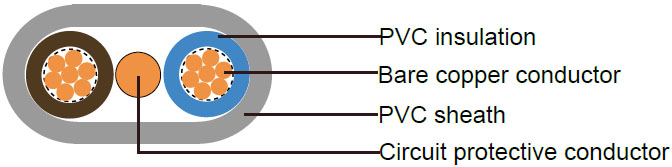

PRODUCTS STRUCTURE

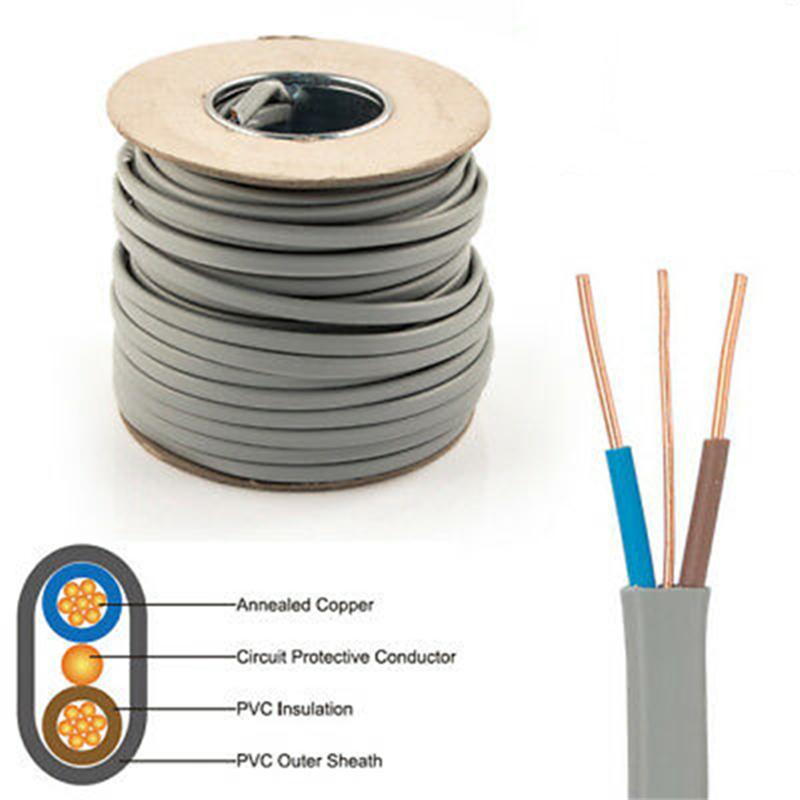

BS 6004 6242Y Flat Twin and Earth PVC Insulated Electrical Wire and Cables, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Earth Conductor Material
Bare copper wire, solid Class 1, or stranded Class 2.
---Sheath Material
PVC (polyvinyl chloride).
---Products Surface
Flat, it is not groud and circular.
aPRODUCTS DIMENTIONS
| Description of Cable | Products Main Technical Sheet |
| Products Name |
BS 6004 6242Y Flat Twin and Earth PVC Insulated Electrical Wire and Cables. |
| Conductor Material |
Plain annealed copper wires, solid Class 1, or stranded Class 2. RE: 1.0-2.5mm²: Class 1 solid copper. RM: 4-16mm²: Class 2 stranded copper. |
| Conductor Structure | 2C x 1/1.78 mm. |
| Insulation Material | PVC (Polyvinyl Chloride). |
| Insulation Thickness | 0.8 mm. |
| Insulation Colour | Brown, blue; or others. |
| Earth Conductor Material |
Plain annealed copper wires, solid Class 1, or stranded Class 2. 1.0-2.5mm²: Class 1 solid copper; 4-16mm²: Class 2 stranded copper. |
| Earth Conductor Structure | 1C x 1/1.38 mm. |
| Earth Insulated Material | Bare earth, without insulation material. |
| Sheath Material | PVC (Polyvinyl Chloride). |
| Sheath Thickness | 1.0 mm. |
| Sheath Colour | Grey. |
| Conductor Cross-section | 2 x 2.5 + 1 x 1.5 mm2. |
| Core Number | 2 cores, 3 cores, 2C, 3C. |
| Out Diameter | Max: 5.65 x 10.65 mm. |
| Voltage Rate | 300/500V (U0/U). |
| About Net Weight | 120 kg/km. |
| Production Standard | BS 6004, IEC 60227. |

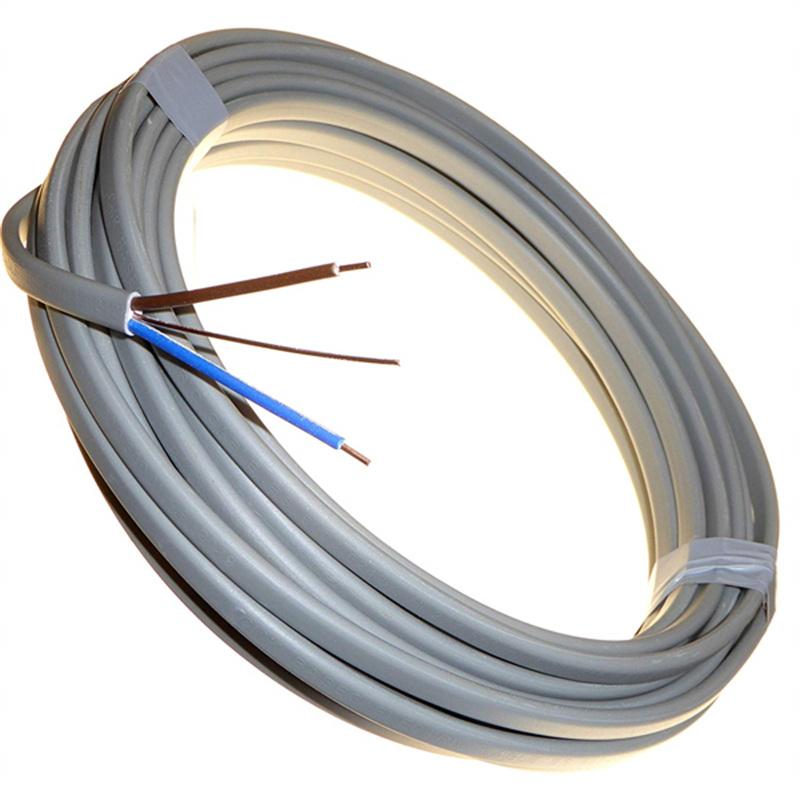

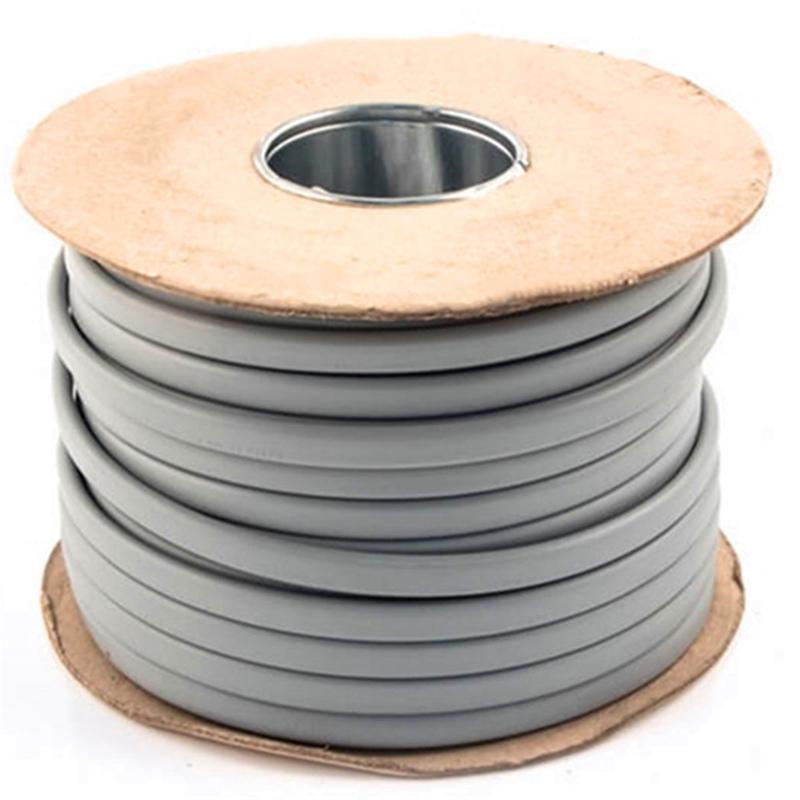

| Packing Type | 100 Meters per roll, 100 Yards per paper drum, or others. |
|
Max. Conductor DC Resistance at 20℃ in Air |
7.41 Ω/km. |
|
Min. Insulated Resistance at 70℃ |
0.010 MΩ.km. |
|
Max. Ampacity at 40 ℃ in air |
27A. |
