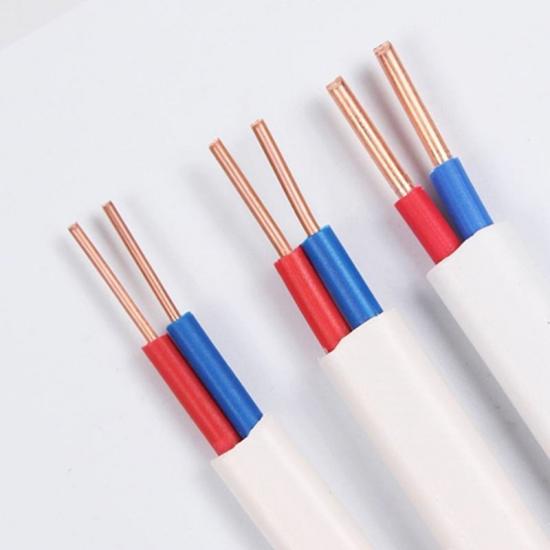

BVVB 2x1.5mm2 PVC Insulated Flat Twin Electric Cables meet to IEC 60227. BVVB Cable is structured with copper core PVC insulation jointed flexible wires. the first B means general wiring, double V means PVC insulation and sheath, the second B means flat surface. A BVVB Cable commonly consists of two flexible copper cores and PVC insulation as sheathing.
Brand:
SeebestItem NO.:
Seebest-EX-022Order(MOQ):
1000Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 5-7 working days as soon as we received the deposit.BVVB 2x1.5mm2 PVC Insulated Flat Twin Electric Cables meet to IEC 60227
PRODUCTS NAME
BVVB 2x1.5mm2 PVC Insulated Flat Twin Electric Cables meet to IEC 60227.
PRODUCTS KEYWORDS
BVVB, 2x1.5mm2, VAF, VAF-G, flat twin cable, flat twin and earth cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
BVVB 2x1.5mm2 PVC Insulated Flat Twin Electric Cables meet to IEC 60227, meet to IEC 60227 and JB/T 8734-2016, 300/500V. BVVB flat twin cable, maybe its earth wire is optional. The BVVB flat twin cable is used in building wiring, installation on insulator or cable conduit, and widely used in household appliances. But cables cannot be installed in conduit or buried underground. BVVB flat twin cable, it is simply understood that 2 or 3 pieces BV cables are placed in parallel, and a layer of sheath material is added outside, the cable’s surface and appearance is flat, is not round/circular.
PRODUCTS STRUCTURE
BVVB 2x1.5mm2 PVC Insulated Flat Twin Electric Cables meet to IEC 60227, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Sheath Material
PVC (polyvinyl chloride).
---Core Number
2 Cores, 3 Cores; 2C, 3C.
---Products Surface
Flat, it is not groud and circular.
aPRODUCTS DIMENTIONS
| Description of Cable | Products Main Technical Sheet |
| Products Name |
BVVB 2x1.5mm2 PVC Insulated Flat Twin Electric Cables meet to IEC 60227. |
| Conductor Material | Plain annealed copper wires, solid Class 1. |
| Conductor Structure | 2C x 1/1.38 mm. |
| Insulation Material | PVC (Polyvinyl Chloride). |
| Insulation Thickness | 0.7 mm. |
| Insulation Colour | Brown, blue; red, blue; or others. |
| Sheath Material | PVC (Polyvinyl Chloride). |
| Sheath Thickness | 0.9 mm. |
| Sheath Colour | White. |
| Conductor Cross-section | 2 x 1.5 mm2. |
| Core Number | 2 cores, 2C. |
| Out Diameter | Max. 5.3 x 8.5 mm. |
| Voltage Rate | 300/500V (U0/U). |
| About Net Weight | 63 kg/km. |
| Production Standard | JB/T 8734-2016, GB/T 5023-2008, IEC 60227. |
| Packing Type |
100m/roll; 100 meters per plastic reel, or according to the customers requirements. |
|
Max. Conductor DC Resistance at 20℃ in Air |
12.1 Ω/km. |
|
Min. Insulated Resistance at 70℃ |
0.011 MΩ.km. |
|
Max. Ampacity at 40 ℃ in air |
20A. |
