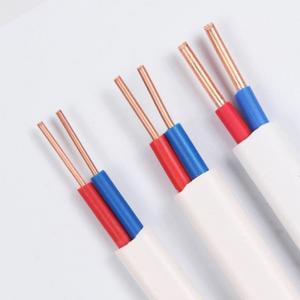

IEC 60227 BVVB Flat Twin PVC Insulated Electrical Wire and Cables.

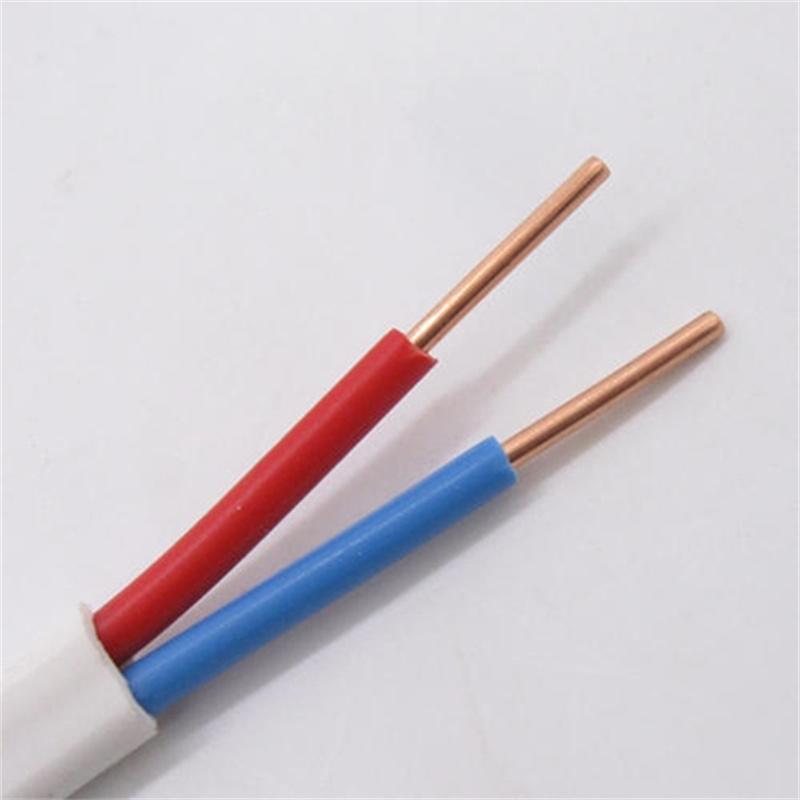

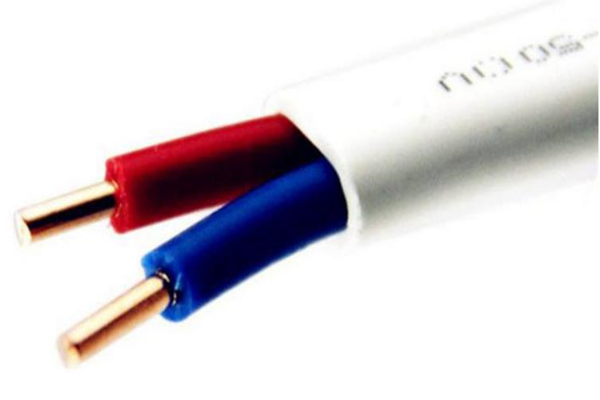

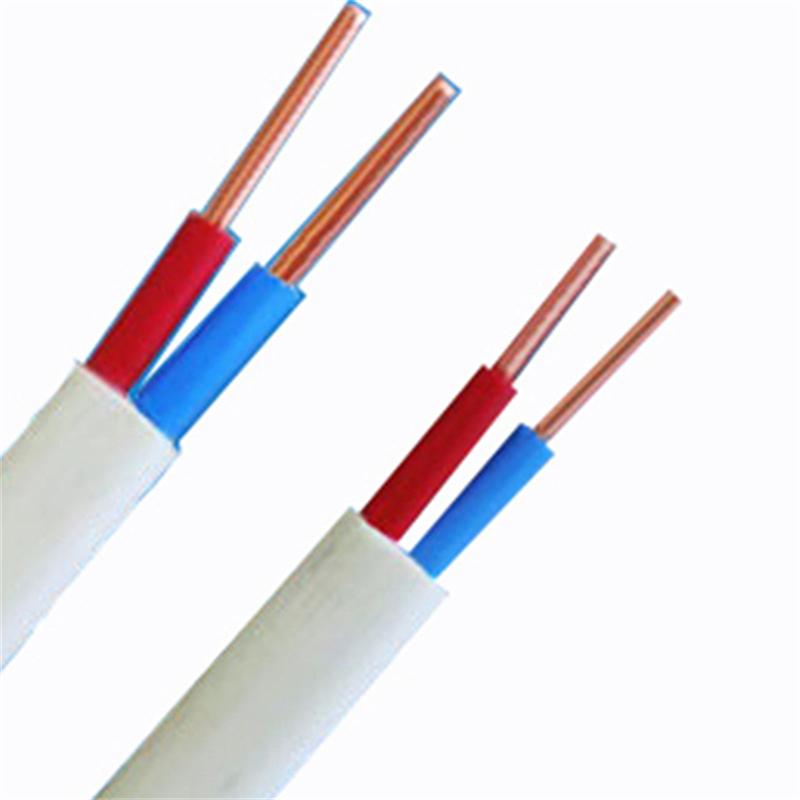

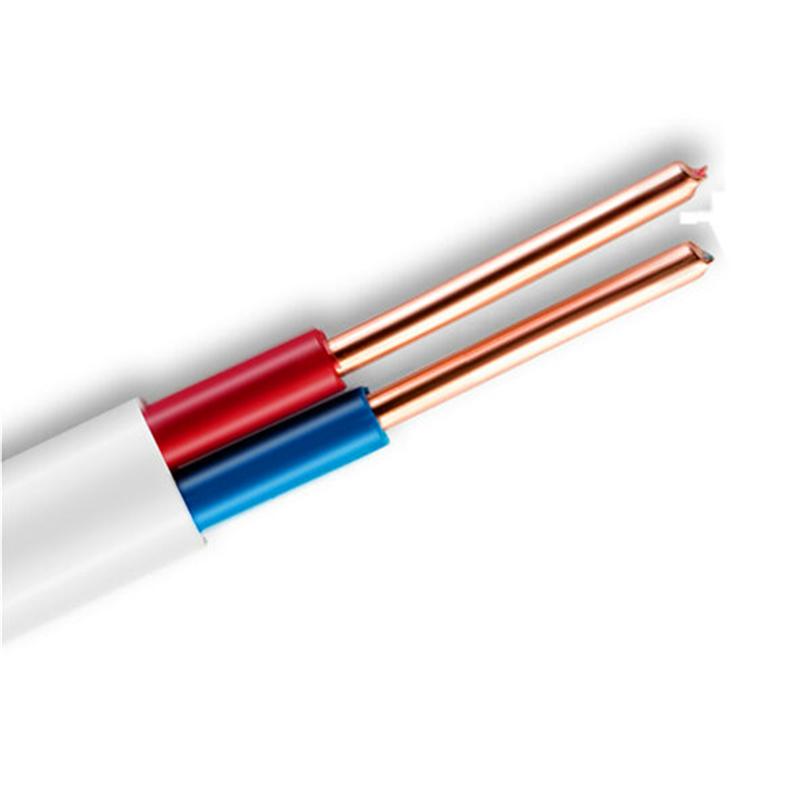

BVVB Cable is structured with copper core PVC insulation jointed flexible wires. the first B means general wiring, double V means PVC insulation and sheath, the second B means flat surface. A BVVB Cable commonly consists of two flexible copper cores and PVC insulation as sheathing.
Brand:
SeebestItem NO.:
Seebest-EX-007Order(MOQ):
1000Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 5-7 working days as soon as we received the deposit.IEC 60227 BVVB Flat Twin PVC Insulated Electrical Wire and Cables
PRODUCTS NAME
IEC 60227 BVVB Flat Twin PVC Insulated Electrical Wire and Cables.
PRODUCTS KEYWORDS
BVVB, VAF, VAF-G, flat twin cable, flat twin and earth cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION

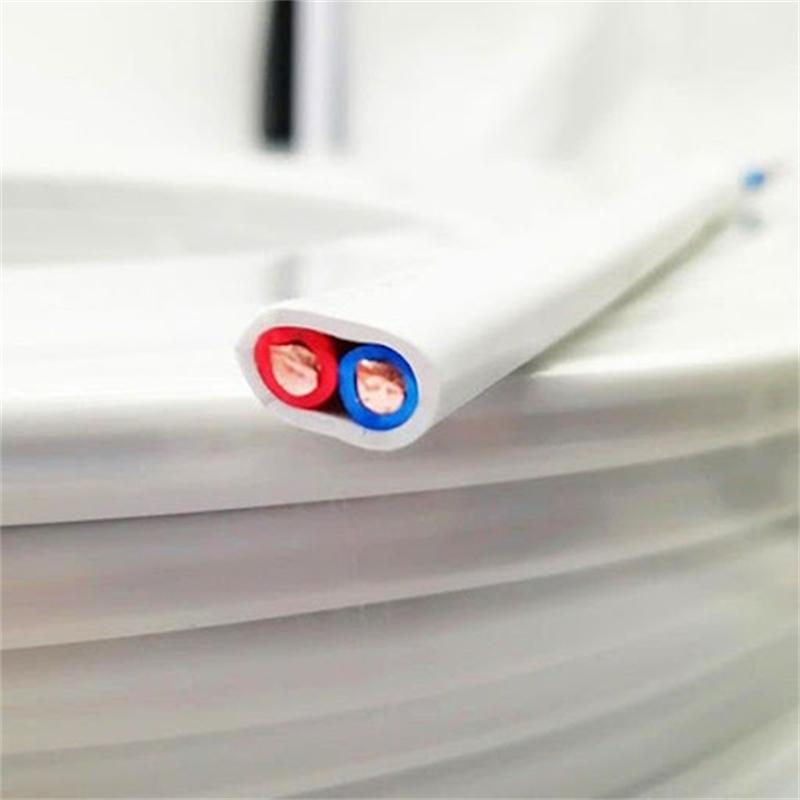

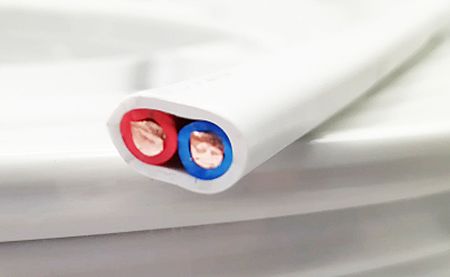

IEC 60227 BVVB Flat Twin PVC Insulated Electrical Wire and Cables, the BVVB flat twin cable is used in building wiring, installation on insulator or cable conduit, and widely used in household appliances. But cables cannot be installed in conduit or buried underground. BVVB flat twin cable, it is simply understood that 2 or 3 pieces BV cables are placed in parallel, and a layer of sheath material is added outside, the cable’s surface and appearance is flat, is not round.
PRODUCTS STRUCTURE
IEC 60227 BVVB Flat Twin PVC Insulated Electrical Wire and Cables, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Sheath Material
PVC (polyvinyl chloride).
---Core Number

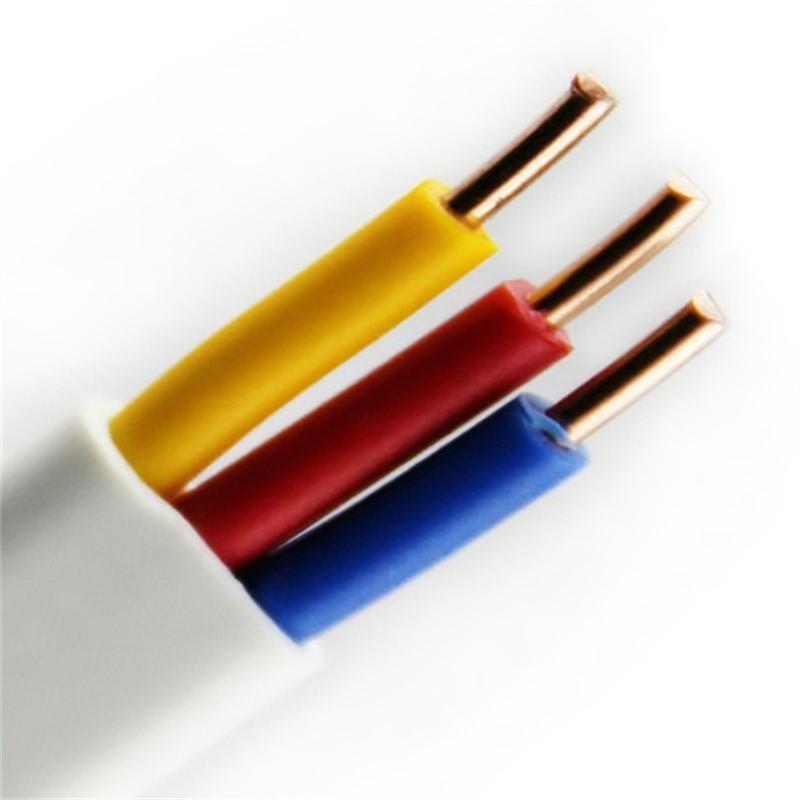

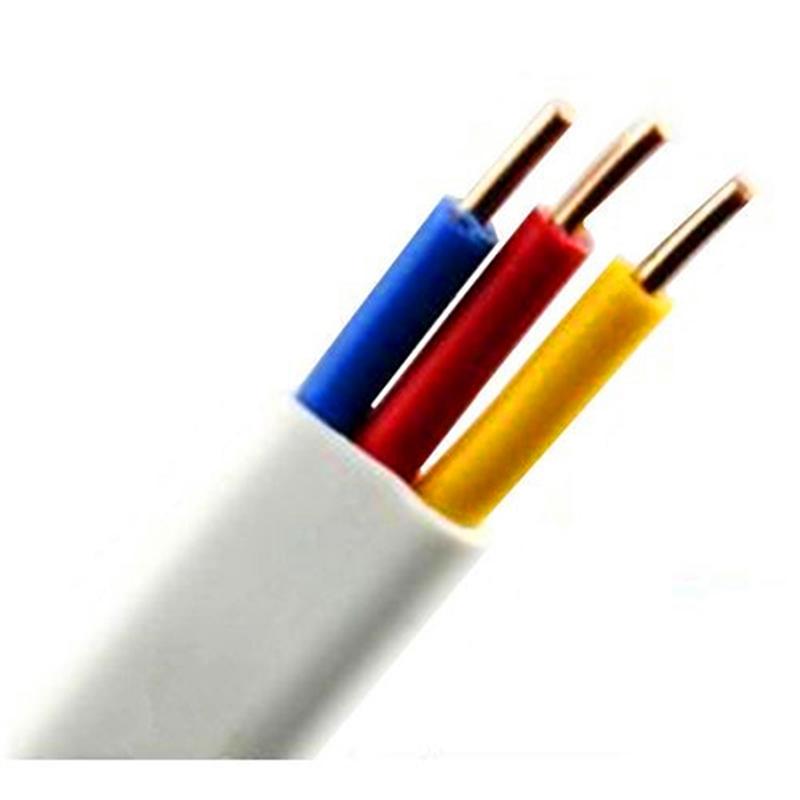

2 Cores, 3 Cores; 2C, 3C.
---Products Surface
Flat, it is not groud and circular.
aPRODUCTS DIMENTIONS
| Description of Cable | Products Main Technical Sheet |
| Products Name |
IEC 60227 BVVB Flat Twin PVC Insulated Electrical Wire and Cables. |
| Conductor Material | Plain annealed copper wires, solid Class 1, or stranded Class 2. |
| Conductor Structure | 2C x 1/1.78 mm. |
| Insulation Material | PVC (Polyvinyl Chloride). |
| Insulation Thickness | 0.8 mm. |
| Insulation Colour | Brown, blue; red, blue; brown, blue, Y/G; or others. |
| Sheath Material | PVC (Polyvinyl Chloride). |
| Sheath Thickness | 1.0 mm. |
| Sheath Colour | White. |
| Conductor Cross-section | 2 x 2.5 mm2. |
| Core Number | 2 cores, 2C. |
| Out Diameter | Max. 6.2 x 10.1 mm. |
| Voltage Rate | 300/500V (U0/U). |
| About Net Weight | 90 kg/km. |
| Production Standard | JB/T 8734-2016, GB/T 5023-2008, IEC 60227. |
| Packing Type |

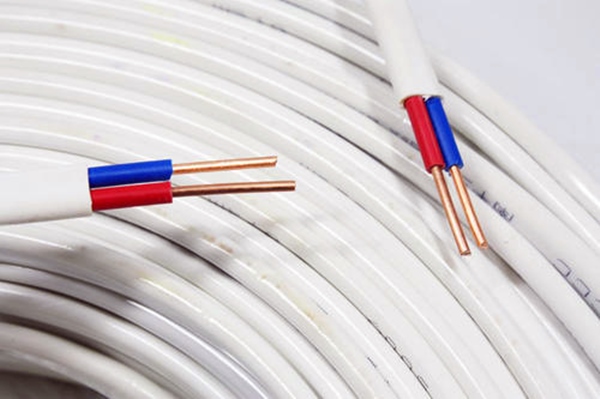

100m/roll; 100 meters per plastic reel, or according to the customers requirements. |
|
Max. Conductor DC Resistance at 20℃ in Air |
7.41 Ω/km. |
|
Min. Insulated Resistance at 70℃ |
0.010 MΩ.km. |
|
Max. Ampacity at 40 ℃ in air |
27A. |
COMPANY PROFILE
WirCablesPro, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.
COMPANY ADVANTAGE
---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.
COMPANY PRODUCTS
---Electrical Wires: PVC or LSZH Insulated Electrical Wires.
---Power Cables: 0.6/1kV, PVC, XLPE, or LSZH Insulated Power Cables.
---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282,
VDE 0250, and other Electronic Wires.
---Customized Products: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Power
Cables, LSZH, LSOH, LSFH and other RoHs Cables, and Environmental Protection Cables.
---Communication Cables: Networking Cables, Telephone Cables, Coaxial Cables, Speaker Cables.
---Power Plugs: CCC, UL, VDE, and other standards Power Plugs.
COMPANY SLOGAN
---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,
Technology Supporter, and Sales Assistant in Wire and Cables Industry.
COMPANY FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.
2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.
3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm2, the MOQ is 5,000 meters;
For the Power Cables more than 25mm2, the MOQ is 1,000 meters;
For the networking cables, the MOQ is 100 boxes/cartons;
For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.
For other customized wire and cables, please negotiate the MOQ with us immediately.
4. Can you give me the price discount?
We can give you the price discount, but the discount percent depends on the quantity, quality, packaging and payment terms in your order.
In addition, price is an important factor, but it should not the decisive factor; the price can be lower, but we must keep the safe bottom-line. The high-quality products can help you saving more money, and there is not potential safety hazard, you don't worry about them every day.
5. Can you provide the OEM, OBM and ODM services?Yes, we can provide OEM, OBM and ODM services for you, but you should provide the Power of Attorney for Trademark and other detailed information to us.
