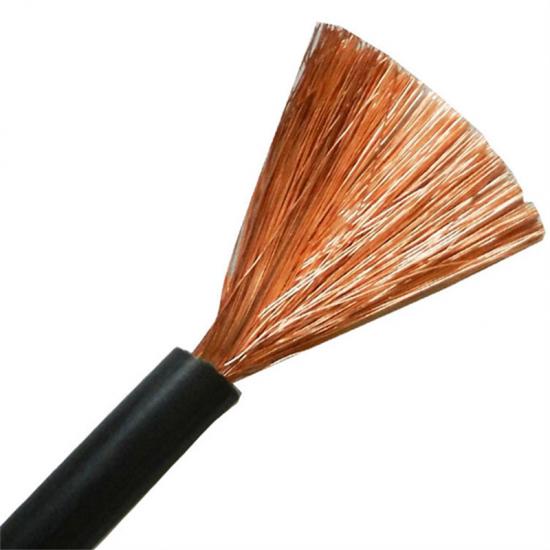

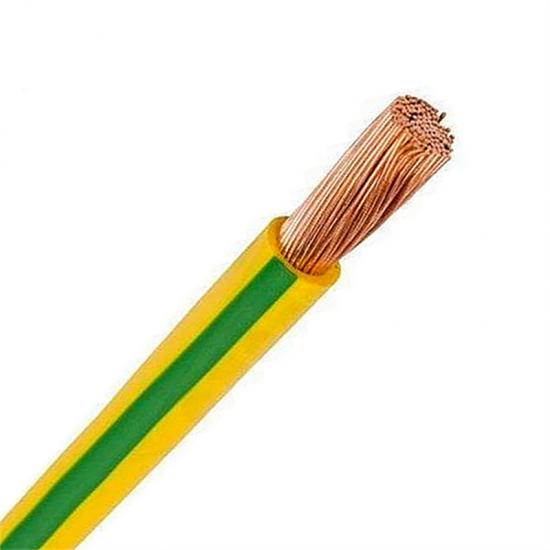

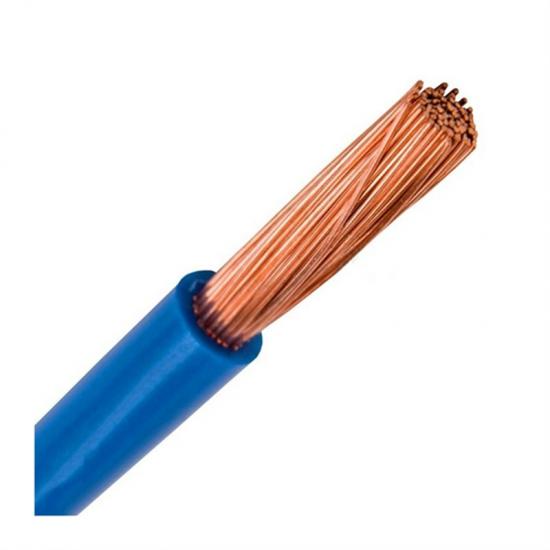

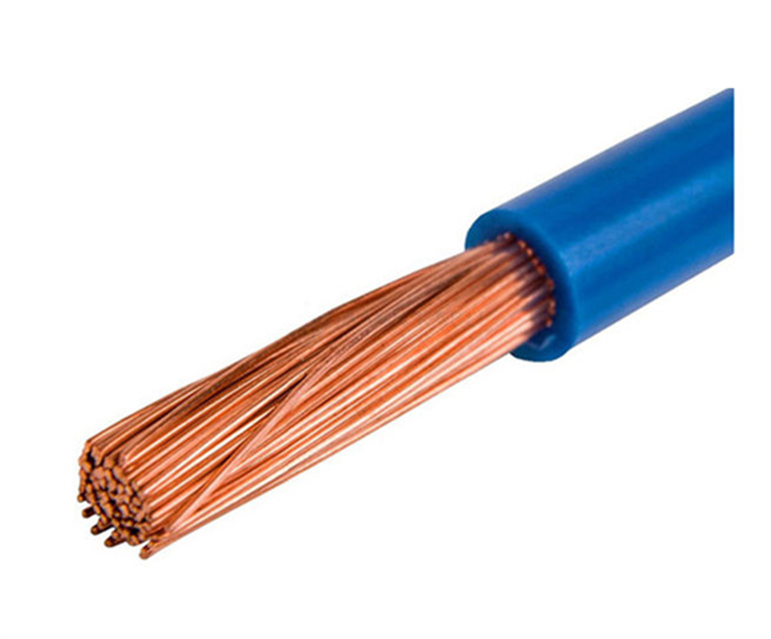

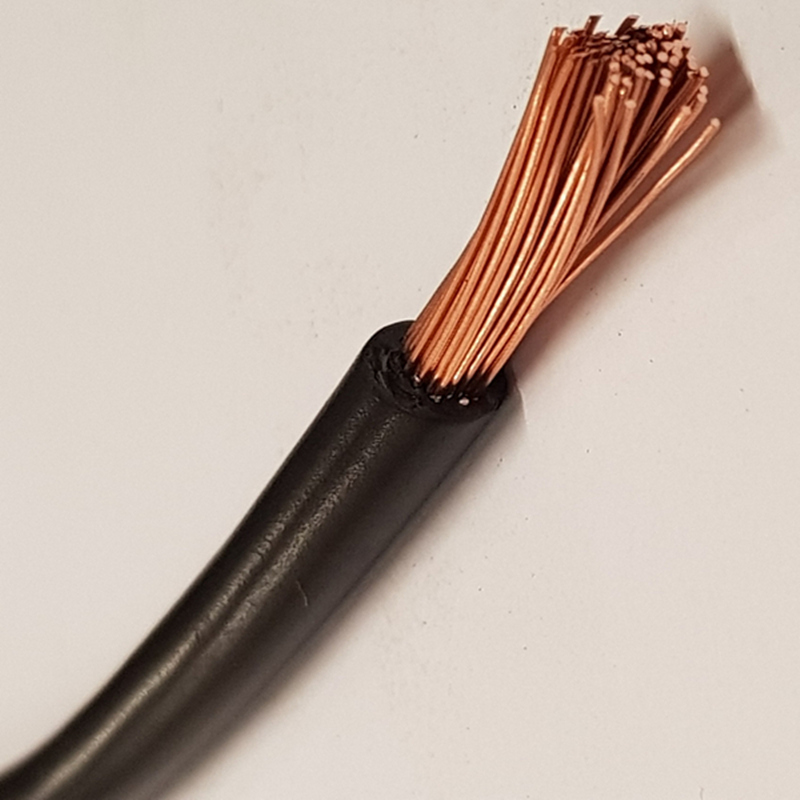

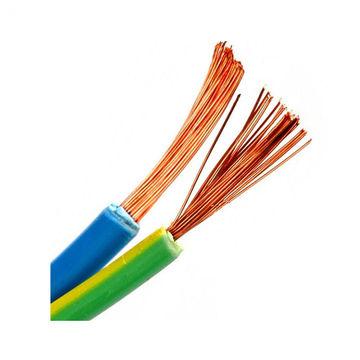

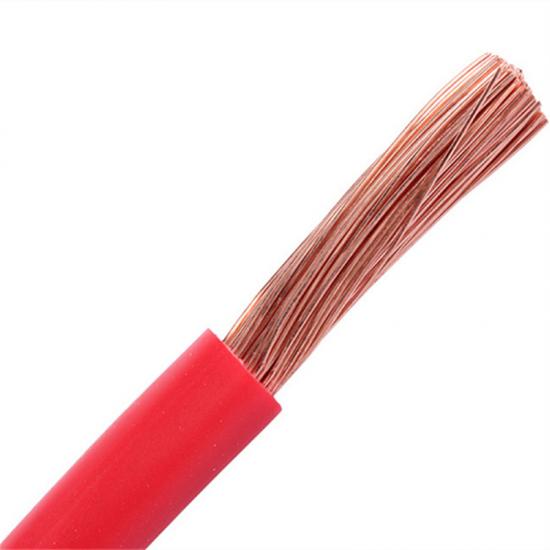

2491X H05V-K RV Stranded PVC Insulated Flexible Cable, for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Brand:
SeebestItem NO.:
Seebest-EX-062Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:

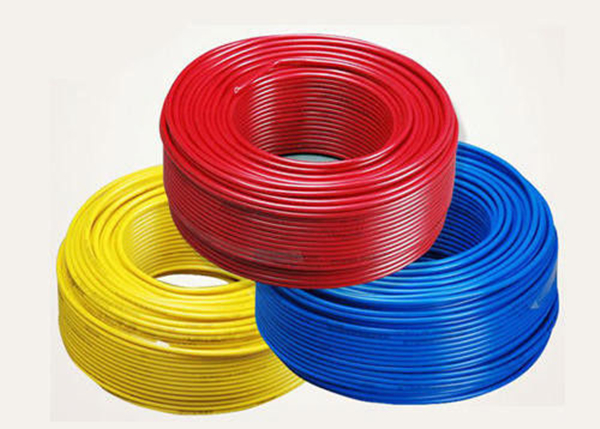

Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 3-7 working days as soon as we received the deposit.2491X H05V-K RV Stranded PVC Insulated Flexible Cable
PRODUCTS NAME
2491X H05V-K RV Stranded PVC Insulated Flexible Cable.
PRODUCTS KEYWORDS
H05V-K, H07V-K, 2491X, RV, stranded copper wire, single core flexible cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
2491X H05V-K RV Stranded PVC Insulated Flexible Cable, for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.

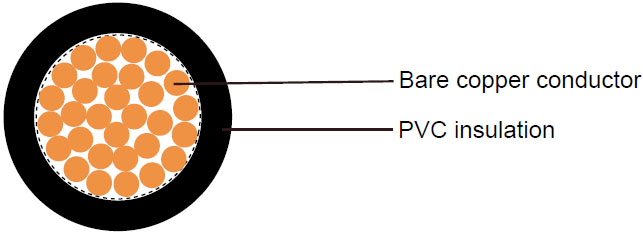

2491X H05V-K RV Stranded PVC Insulated Flexible Cable, the structure as below:
---Conductor Material
Plain annealed copper wire, stranded Class 5, or Class 6.
---Insulation Material
Flexible 85P PVC (polyvinyl chloride).
---Sheath Material
Non-Sheath.
---Core Number
Single core, 1C, 1 core.
PRODUCTS DIMENSIONS
| Description of Cable | Products Main Technical Sheet |
| Products Name |
2491X H05V-K RV Stranded PVC Insulated Flexible Cable.
|
| Cross-section | 1 x 0.75 mm2 |
| Conductor Material | Plain annealed copper wires, stranded Class 5, or Class 6. |
| Conductor Structure | 25/0.20 mm. |
| Insulation Material | PVC (Polyvinyl chloride). |
| Insulated Thickness | 0.6mm. |

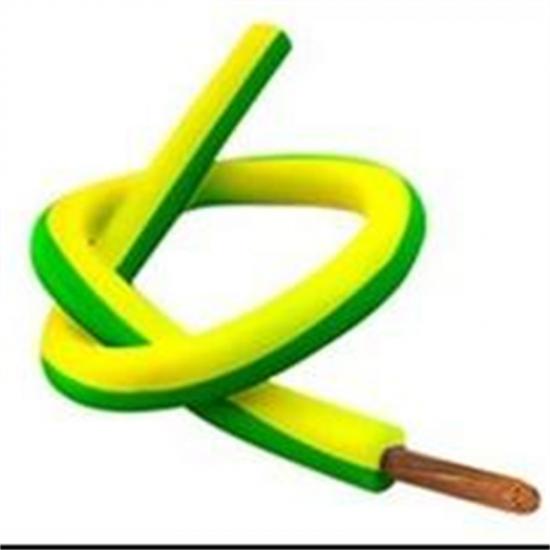

| Insulation Colour | Red, yellow, blue, green, black, grey, white, yellow/green, or others. |
| Sheath Material | Non-sheath. |
| Core Number | Single core, 1 core, 1C. |
| Out Diameter | 2.7 mm. |
| Voltage Rate | 300/500V (U0/U). |
| About Net Weight | 12 kg/km. |
| Production Standard | JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31. |
COMPANY PROFILE
WirCablesPro, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.
COMPANY ADVANTAGE
---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.
COMPANY SLOGAN
---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,
Technology Supporter, and Sales Assistant in Wire and Cables Industry.
COMPANY FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.
2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.
3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm², the MOQ is 5,000 meters;
For the Power Cables more than 25mm², the MOQ is 1,000 meters;
For the networking cables, the MOQ is 100 boxes/cartons;
For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.
For other customized wire and cables, please negotiate the MOQ with us immediately.
