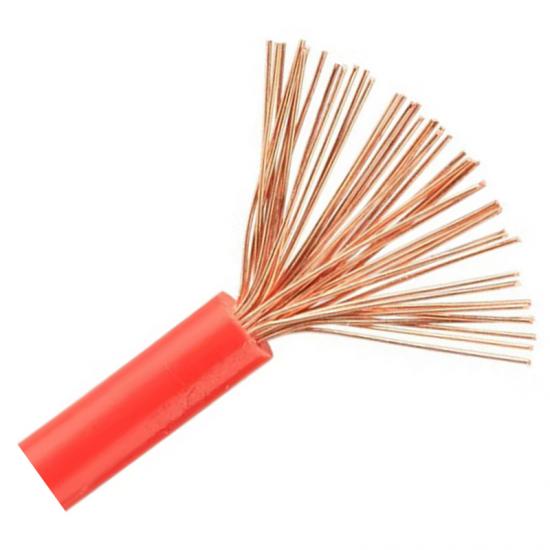

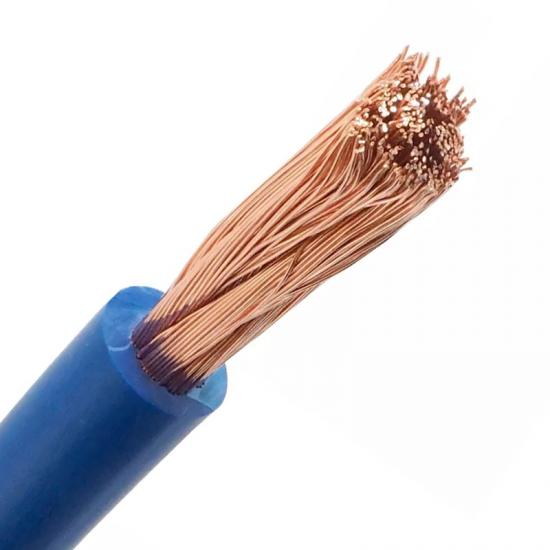

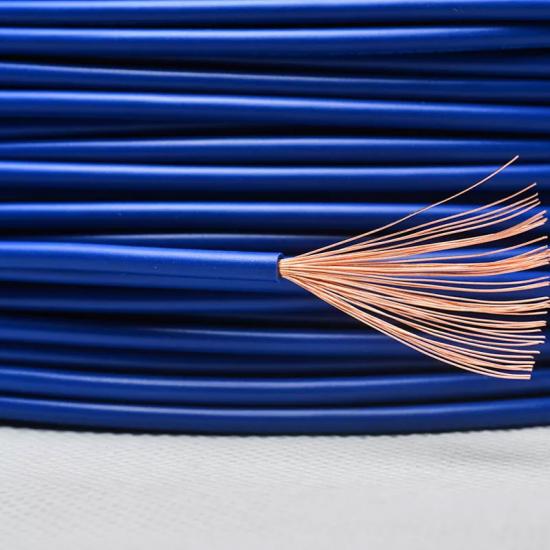

H05V-K cable is used for the internal wiring of electric motors and transformers as well as other electrical appliances and lighting applications. It can be used in and at electronic appliances for measuring, regulating and controlling. The cables are also ideal for laying in pipes, surface wiring and conduit installations.
Brand:
SeebestItem NO.:
Seebest-EX-074Order(MOQ):
1000Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:

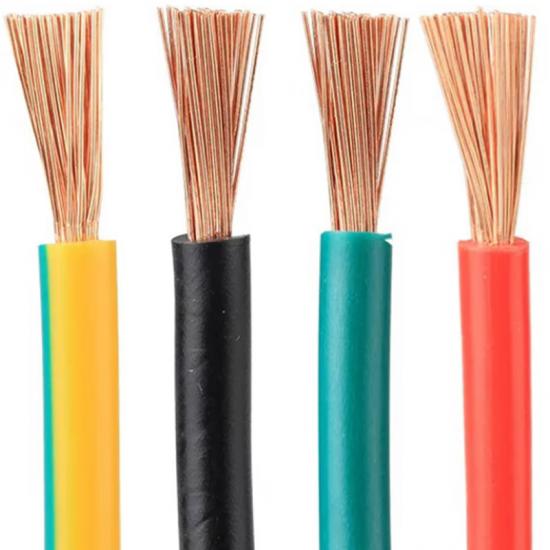

Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 3-7 working days as soon as we received the deposit.H05V-K PVC Insulation Class 5 Copper Conductor Flexible RV Power Cable
PRODUCTS FEATURES
PRODUCTS APPLICATION
H07V-K Cables, PVC panel wiring for use in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
PRODUCTS STRUCTURE

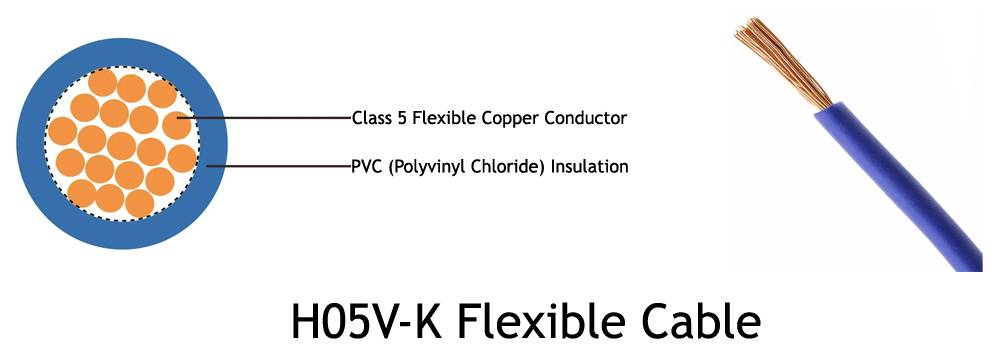

H05V-K Flexible Cable structure as below:
---Conductor Material
Plain annealed copper wire, stranded Class 5.
---Insulation Material
PVC(polyvinyl chloride).
---Sheath Material
Non-Sheath.
---Core Number
Single core, 1C, 1 core.
PRODUCTS SPECIFICATION
|
Type |
No. Of Cores x Nominal Cross Section |
Conductor Material |
Insulation Material |
Insulation Thickness |
Reference Max. Diameter |
Reference Weight |
Voltage Rating |
Max. DC Resistance at 20℃ |
Min. Insulation Resistance at 70℃ |
Reference Ampacity In Air
at 40℃
|
|
(mm2) |
(mm) |
(mm) |
(kg/km) |
(U0/U) |
(Ω/km) |
(MΩ.km) |
(A) |
|||
|
H05V-K |
1 x 0.5 |
Class 5
Flexible Copper
|
PVC |
0.6 |
2.5 |
9 |
300/500V |
39 |
0.0130 |
13 |
|
1 x 0.75 |
Class 5
Flexible Copper
|
PVC |
0.6 |
2.7 |
12 |
300/500V |
26 |
0.0120 |
17 |
|
|
1 x 1.0 |
Class 5
Flexible Copper
|
PVC |
0.6 |
2.8 |
15 |
300/500V |
19.5 |
0.0100 |
20 |
|
|
H07V-K |
1 x 1.5 |
Class 5
Flexible Copper
|
PVC |
0.7 |
3.4 |
22 |
450/750V |
13.3 |
0.0100 |
14 |
|
1 x 2.5 |
Class 5
Flexible Copper
|
PVC |
0.8 |
4.1 |
34 |
450/750V |
7.98 |
0.0090 |
20 |
|
|
1 x 4 |
Class 5
Flexible Copper
|
PVC |
0.8 |
4.8 |
51 |
450/750V |
4.95 |
0.0070 |
27 |
|
|
1 x 6 |
Class 5
Flexible Copper
|
PVC |
0.8 |
5.3 |
74 |
450/750V |
3.30 |
0.0060 |
34 |
|
|
1 x 10 |
Class 5
Flexible Copper
|
PVC |
1.0 |
6.8 |
116 |
450/750V |
1.91 |
0.0056 |
49 |
|
|
1 x 16 |
Class 5
Flexible Copper
|
PVC |
1.0 |
8.1 |
177 |
450/750V |
1.21 |
0.0046 |
67 |
MORE INFORMATION
|
H05V-K, H07V-K, H07V-R, H07V-U |
|
|
Voltage Rating |
450/750V |
|
Conductor |
H05V-K: Class 5 Flexible Copper |
|
H07V-K: Class 5 Flexible Copper |
|
|
H07V-R: Class 2 Stranded Copper |
|
|
H07V-U: Class 1 Solid Copper |
|
|
Insulation |
PVC (Polyvinyl Chloride) |
European Harmonised Standard H05V-K Single Core PVC Insulated Flexible Cable. H05V-K are most standard harmonized PVC European Flexible single conductor wires. Ideal for the inside wiring of appliances, apparatus, switchboards, distributor boards and telecommunication devices.
