Within 3-7 working days as soon as we received the deposit.BS 6004 6181Y BVV Single Core Electrical Wire And Cables
PRODUCTS NAME

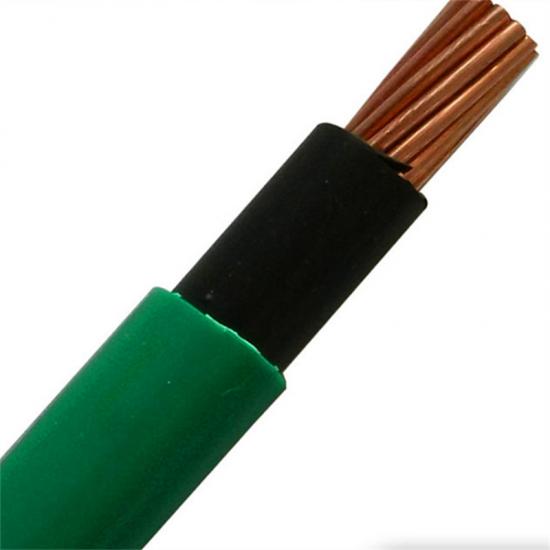

BS 6004 6181Y BVV Single Core Electrical Wire And Cables
PRODUCTS KEYWORDS
6181Y, BVV, SDI electric cable, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
BS 6004 6181Y BVV Single Core Electrical Wire And Cables, fixed installation in dry or damp areas for domestic and light industrial wiring. Also used in connection to (smart) meters.
PRODUCTS STRUCTURE
BS 6004 6181Y BVV Single Core Electrical Wire And Cables, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Sheath Material
PVC (polyvinyl chloride).
---Core Number
Single core, one core, 1 core, 1C.
PRODUCTS DIMENSIONS
| Items No. | Description of Products |
| Products Name |
BS 6004 6181Y BVV Single Core Electrical Wire And Cables |
| Conductor Material | Plain annealed copper wires, solid Class 1, or stranded Class 2. |
| Conductor Structure | 1 x 1/1.78 mm. |
| Insulation Material | PVC (Polyvinyl Chloride). |
| Insulation Thickness | 0.8 mm. |
| Insulation Colour | Red, yellow, blue, green,black, grey, white, yellow/green, or others. |
| Sheath Material | PVC (Polyvinyl Chloride). |
| Sheath Thickness | 0.8 mm. |
| Sheath Colour | Black, grey, red, blue, yellow, or others. |
| Conductor Cross-section | 1 x 2.5 mm2. |
| Core Number | Single core, 1 core, 1C. |
| Out Diameter | 5.0 mm. |
| Voltage Rate | 300/500V (U0/U). |
| About Net Weight | 46 kg/km. |
| Production Standard | BS 6004, JB/T 8734.2-2016, IEC 60227. |
| Production Packing | 100 Meters per Roll, or others. |
|
Max. Conductor DC Resistance at 20℃ in Air |
7.41 Ω/km. |
|
Min. Insulated Resistance at 70℃ |
0.010 MΩ.km. |
|
Max. Ampacity at 40℃ in air |
43A. |
COMPANY PROFILE
WirCablesPro, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.
COMPANY ADVANTAGE
---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.
COMPANY SLOGAN
---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,
Technology Supporter, and Sales Assistant in Wire and Cables Industry.
COMPANY FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.
2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.
3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm², the MOQ is 5,000 meters;
For the Power Cables more than 25mm², the MOQ is 1,000 meters;
For the networking cables, the MOQ is 100 boxes/cartons;
For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.
For other customized wire and cables, please negotiate the MOQ with us immediately.
