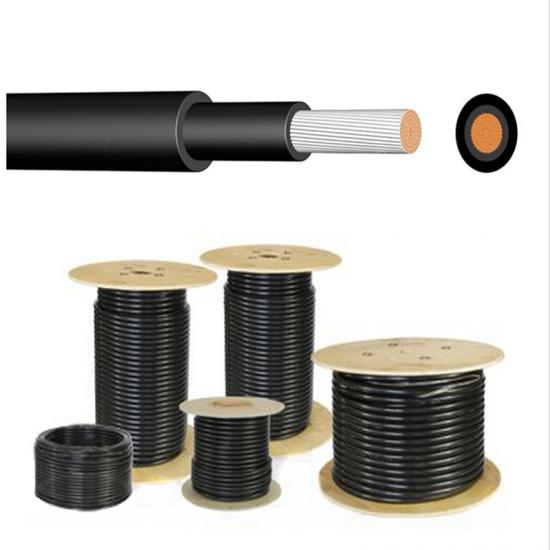

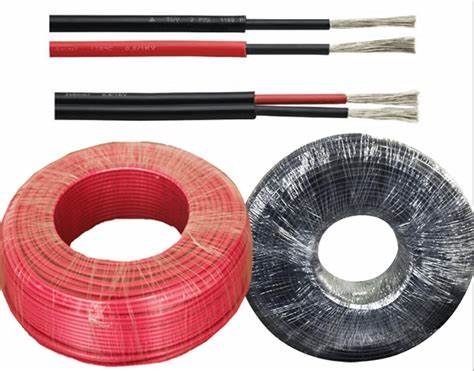

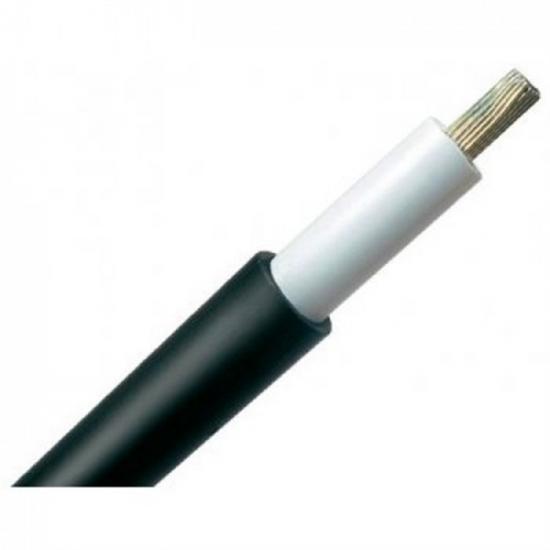

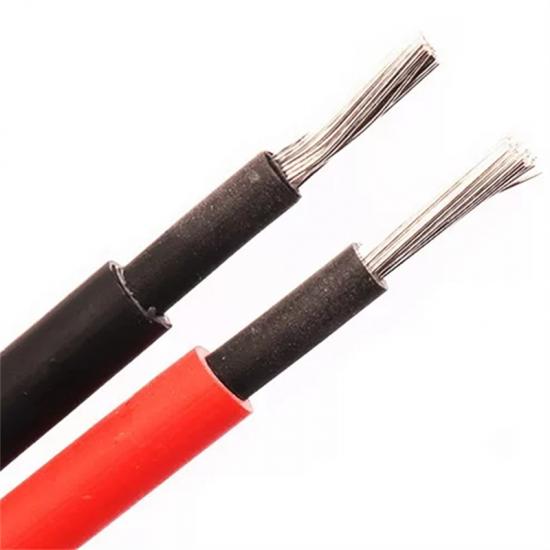

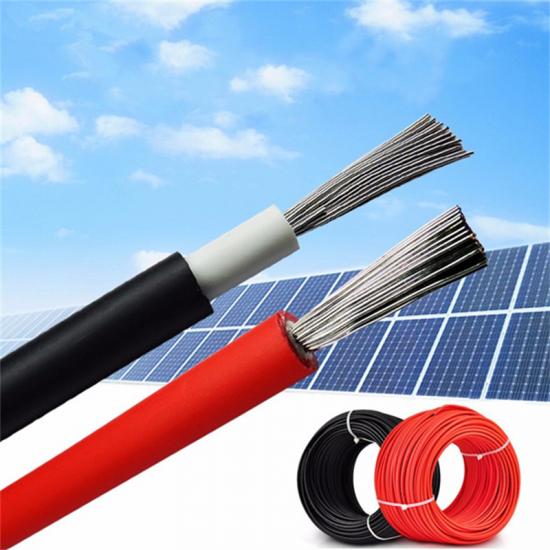

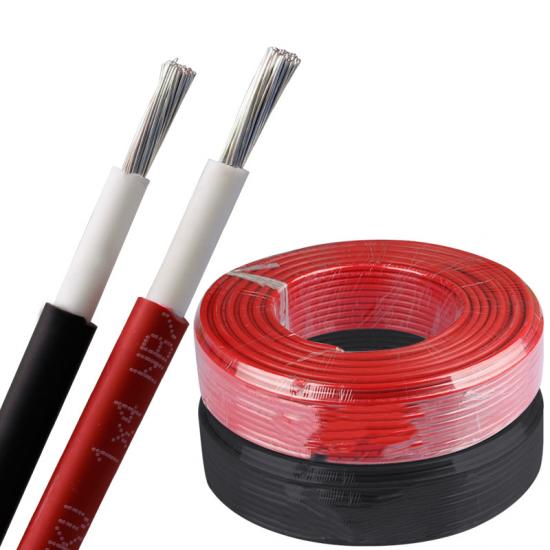

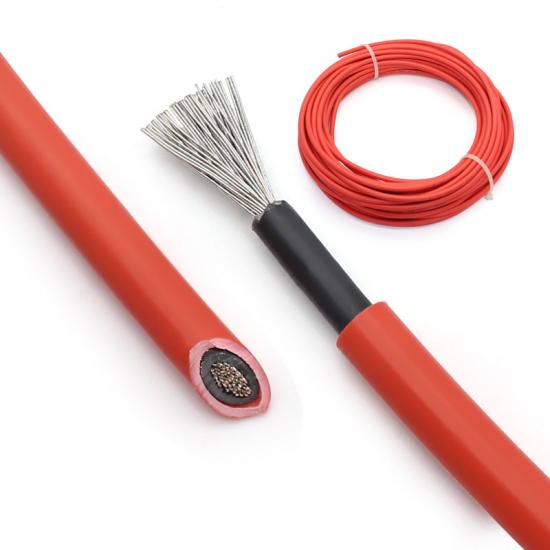

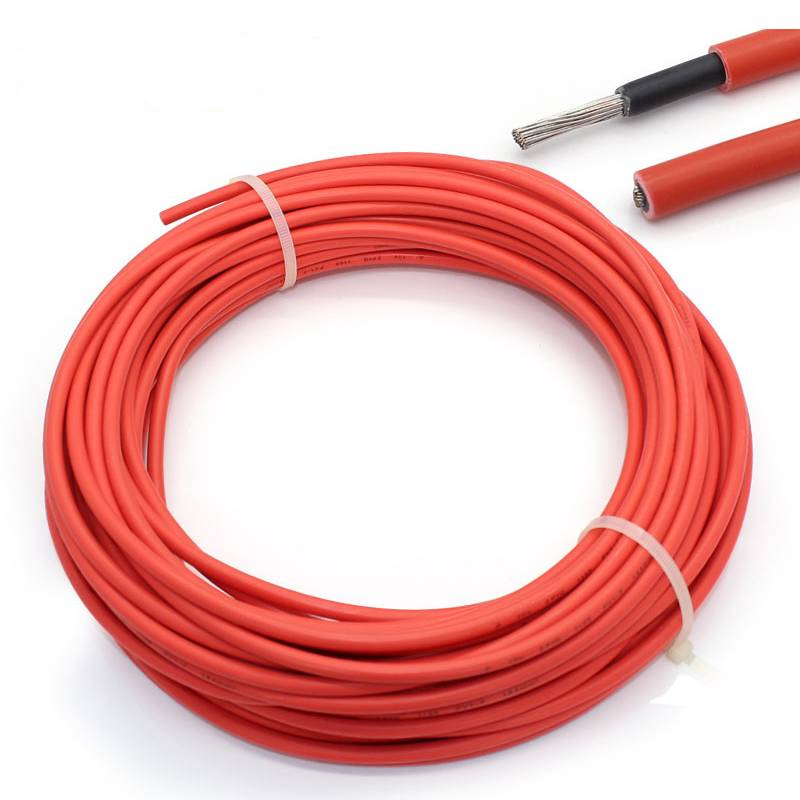

China Customized TÜV 2 pfg 1169 PV1-F Solar Cable, Solar Cable is used in photovoltaic power generation and solar system,interconnects solar panels and electrical components in the photovoltaic system.The size from 1.5 mm2 to120mm2 ,suitable for outdoor extreme environments,UV,ozone,hydrolysis resistant.
Brand:
SeebestItem NO.:
Seebest-EX-032Order(MOQ):
5000Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit.China Customized TÜV 2 pfg 1169 PV1-F Solar Cable
PRODUCTS NAME
China Customized TÜV 2 pfg 1169 PV1-F Solar Cable.
PRODUCTS KEYWORDS
solar cable, TÜV 2 pfg 1169, tuv standard solar cable, pv1-f, photovoltaic cable, H1Z2Z2-K Cable, WDZ-RYJY, solar panel connect cable, tinned copper wire, LSZH insulated cable, electrical wire, electric cable, wire and cables, China customized cables.
PRODUCTS APPLICATION
China Customized TÜV 2 pfg 1169 PV1-F Solar Cable, Updated harmonised (H1Z2Z2-K) European standard solar cable intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems. Impact tested - Suitable for direct burial. For installations where fire, smoke emissions and toxic fumes create a potential risk to life and equipment. Water resistant to AD8.

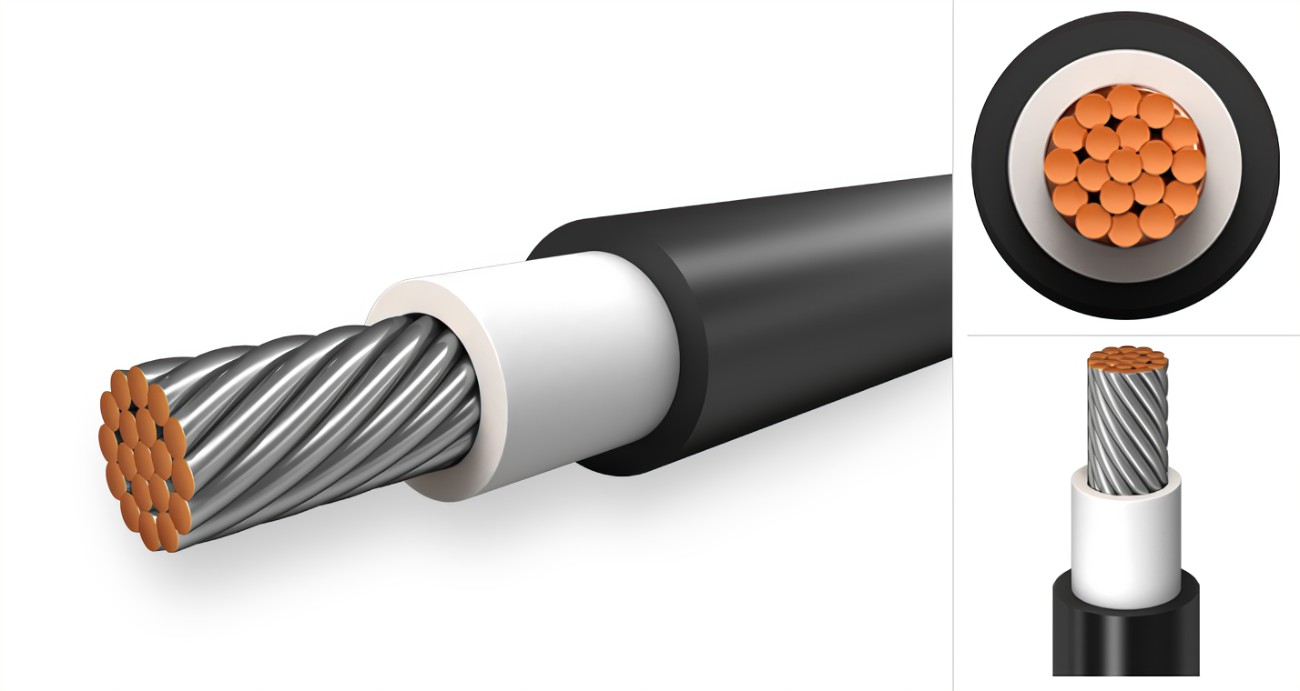

PRODUCTS STRUCTURE

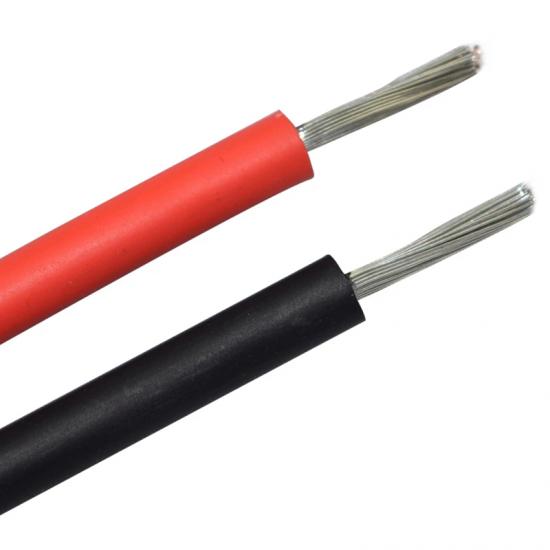

China Customized TÜV 2 pfg 1169 PV1-F Solar Cable:
---Conductor Material
Tinned annealed copper wire, stranded Class 5.
---Insulation Material
LSZH (low smoking zero halogen).
---Sheath Material
LSZH (low smoking zero halogen).
aPRODUCTS DIMENTIONS
| Description of Cable | Products Main Technical Sheet |
| Products Name |
China Customized TÜV 2 pfg 1169 PV1-F Solar Cable. |
| Conductor Material | Tinned annealed copper wire, stranded Class 5. |
| Conductor Structure | 1C x 58/0.29 mm. |
| Insulation Material | LSZH (low smoking zero halogen). |
| Insulation Thickness | 0.7 mm. |
| Insulation Colour | Black, white, or others. |
| Sheath Material | LSZH (low smoking zero halogen). |
| Sheath Thickness | 0.8 mm. |
| Sheath Colour | Black, red, or others. |
| Conductor Cross-section | 1 x 4 mm2. |
| Core Number | Single core, 1 core, 1C. |
| Out Diameter | 5.6 mm. |
| Voltage Rate | 0.6/1kV (U0/U). |
| About Net Weight | 60 kg/km. |
| Production Standard |
TÜV 2 pfg 1169.08-2007, JB/T 10491-2004, GB/T 19666-2019 |
| Products Packing | 100 Meters per roll, or according to the customers requirement. |
|
Max. Conductor DC Resistance at 20℃ in Air |
7.98 Ω/km. |
|
Max. Ampacity at 40 ℃ in air |
55A. |
| Working Temperature | -20℃ to +90℃ |
| Max. Working Temperature | +120℃ |
COMPANY PROFILE
WirCablesPro, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.
COMPANY ADVANTAGE
---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.
COMPANY PRODUCTS
---Electrical Wires: PVC or LSZH Insulated Electrical Wires.
---Power Cables: 0.6/1kV, PVC, XLPE, or LSZH Insulated Power Cables.
---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282,
VDE 0250, and other Electronic Wires.
---Customized Products: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Power
Cables, LSZH, LSOH, LSFH and other RoHs Cables, and Environmental Protection Cables.
---Communication Cables: Networking Cables, Telephone Cables, Coaxial Cables, Speaker Cables.
---Power Plugs: CCC, UL, VDE, and other standards Power Plugs.
COMPANY SLOGAN
---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,
Technology Supporter, and Sales Assistant in Wire and Cables Industry.
COMPANY FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.
2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.
3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm2, the MOQ is 5,000 meters;
For the Power Cables more than 25mm2, the MOQ is 1,000 meters;
For the networking cables, the MOQ is 100 boxes/cartons;
For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.
For other customized wire and cables, please negotiate the MOQ with us immediately.
4. Can you give me the price discount?
We can give you the price discount, but the discount percent depends on the quantity, quality, packaging and payment terms in your order.
In addition, price is an important factor, but it should not the decisive factor; the price can be lower, but we must keep the safe bottom-line. The high-quality products can help you saving more money, and there is not potential safety hazard, you don't worry about them every day.
5. Can you provide the OEM, OBM and ODM services?Yes, we can provide OEM, OBM and ODM services for you, but you should provide the Power of Attorney for Trademark and other detailed information to us.
