VV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables. The structurer is CU/PVC/PVC/STA/PVC, includes the Copper Wire Condutor, PVC Insulation, PVC Inner Sheath, Steel Tape Armoured, PVC Out Sheath. STA armoured cable is a steel tape armored cable. It is a kind of armored cable. It is usually used for transmission lines below 35KV. The steel belt armored cable has a metal armor layer in the cable sheath, which is mainly used to prevent the cable is damaged by external squeezing.
Brand:
SeebestItem NO.:
Seebest-EX-014Order(MOQ):
500Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 10-15 working days as soon as we received the deposit.VV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables
PRODUCTS NAME
VV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables.
PRODUCTS KEYWORDS
VV22, STA Armoured, cu/pvc/sta/pvc, power cable, copper wire, pvc insulated cable, electric cable, wire and cables.
PRODUCTS APPLICATION
VV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables, power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.
PRODUCTS STRUCTURE

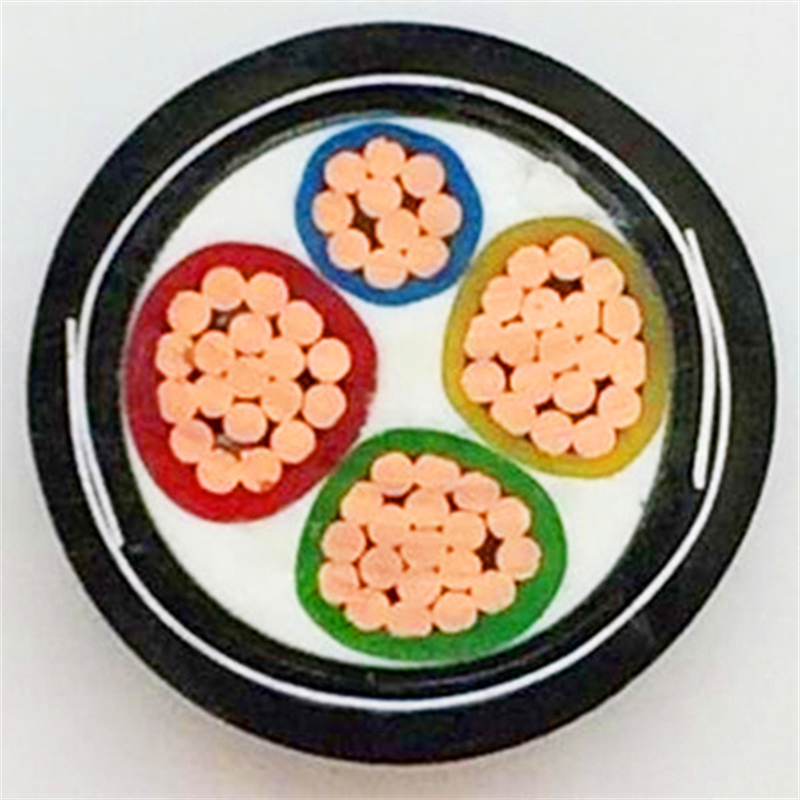

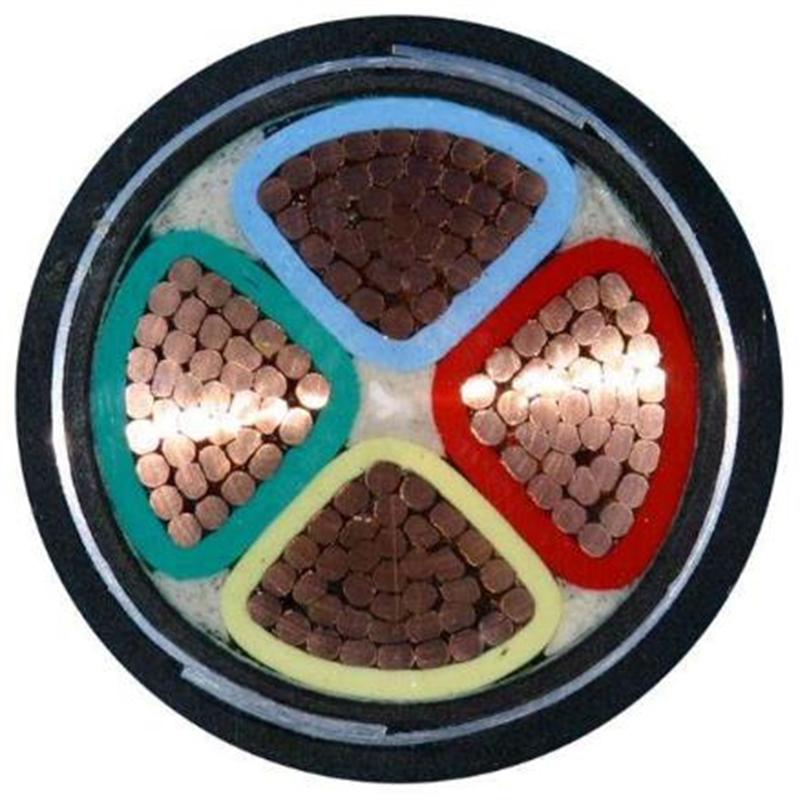

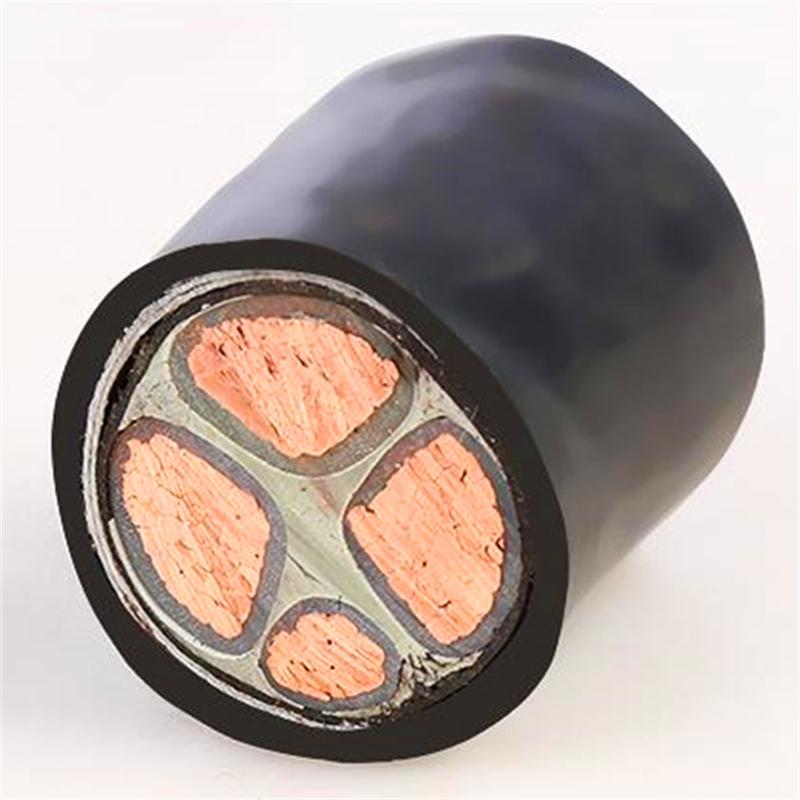

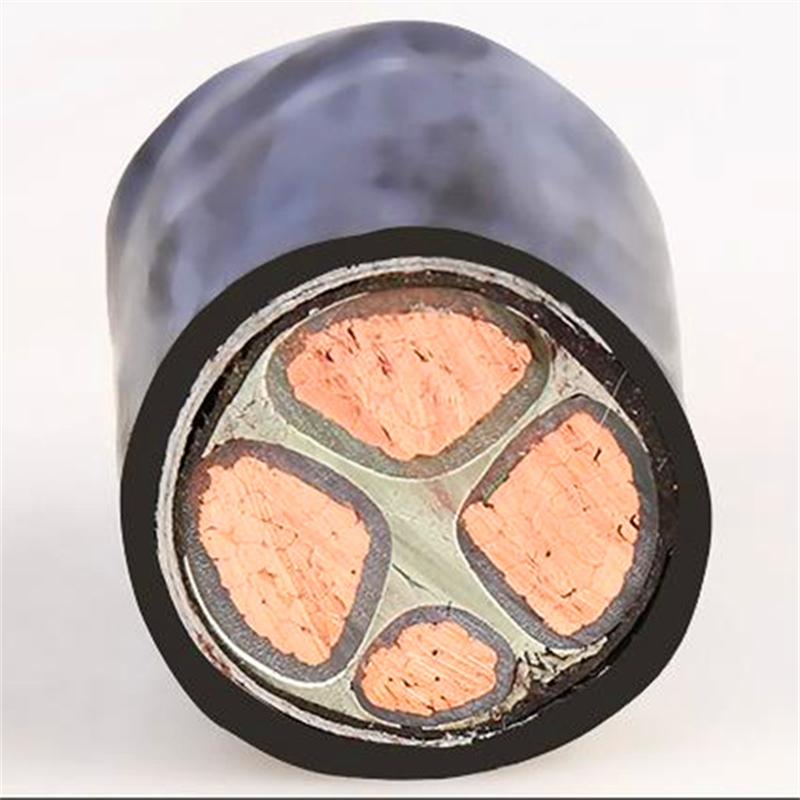

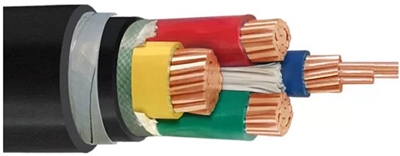

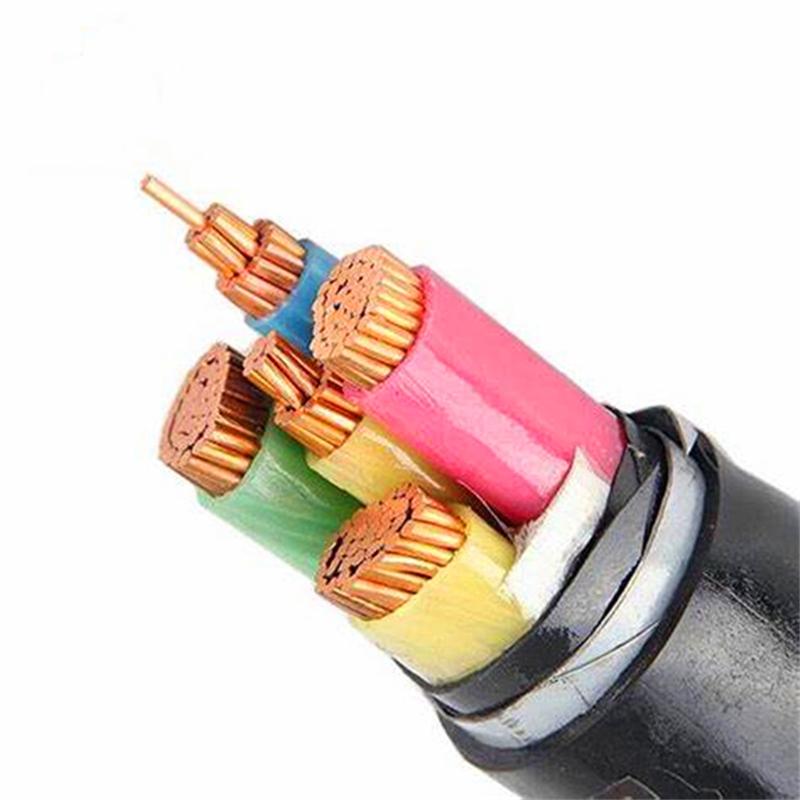

VV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables, the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Inner Sheath Material
PVC (polyvinyl chloride).
---Armoured Material
Galvanized steel tape armoured, double layers, 100% coverage.
---Out Sheath Material
PVC (polyvinyl chloride).
aPRODUCTS DIMENTIONS
| Description of Cable | Products Main Technical Sheet |
| Products Name |
VV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables. |
| Conductor Material | Plain annealed copper wires, stranded Class 2. |
| Conductor Structure | 3C x 7/2.14 mm. |
| Insulation Material | PVC (Polyvinyl Chloride). |
| Insulation Thickness | 1.2 mm. |
| Insulation Colour | Brown, blue, yellow/green; or others. |
| Inner Sheath Material | PVC (Polyvinyl Chloride). |
| Inner Sheath Thickness | 1.0 mm. |
| Inner Sheath Colour | Black. |
| Armoured Material | Galvanized steel tape, double layers. |
|
Out Sheath Material |
PVC (Polyvinyl Chloride). |
| Out Sheath Thickness | 1.8 mm. |
| Out Sheath Colour | Black, red, orange, or others. |
| Conductor Cross-section | 3 x 25 mm2. |
| Core Number | Three cores, 3 cores, 3C. |
| Out Diameter | 17.7 mm. |
| Voltage Rate | 600/1000V, 0.6/1kV (U0/U). |
| About Net Weight | 1166 kg/km. |
| Production Standard |
GB/T 12706-2020, IEC 60502. |
|
Max. Conductor DC Resistance at 20℃ in Air |
0.727 Ω/km. |
|
Min. Insulated Resistance at 70℃ |
0.009 MΩ.km. |
|
Max. Ampacity at 25℃ in Undergroun |
110A. |
