Brand:
SeebestItem NO.:
Seebest-EX-054Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 3-7 working days as soon as we received the deposit.6491X H07V-R Copper Wire PVC Insulated Electrical Cable
PRODUCTS NAME

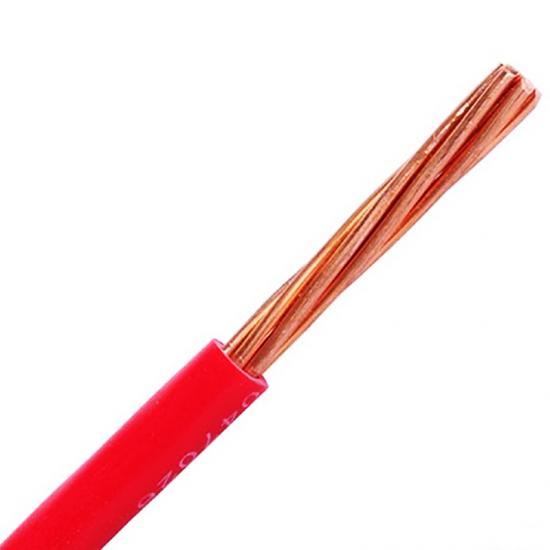

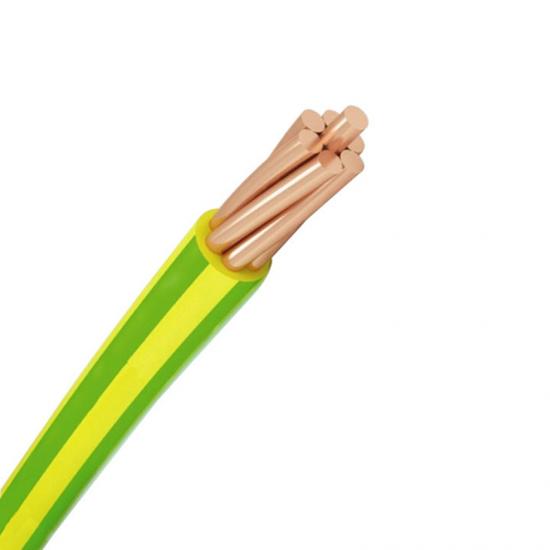

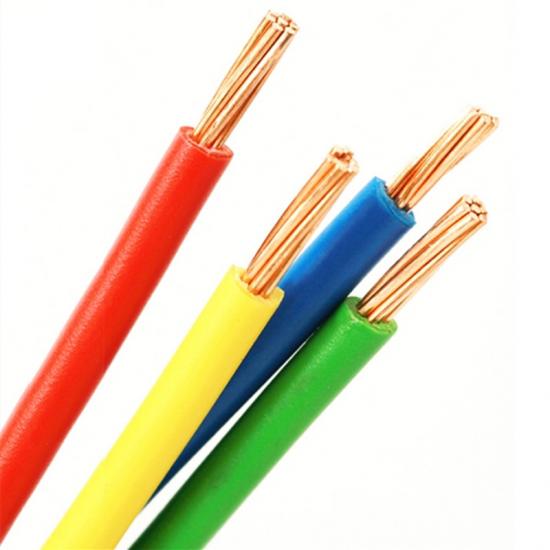

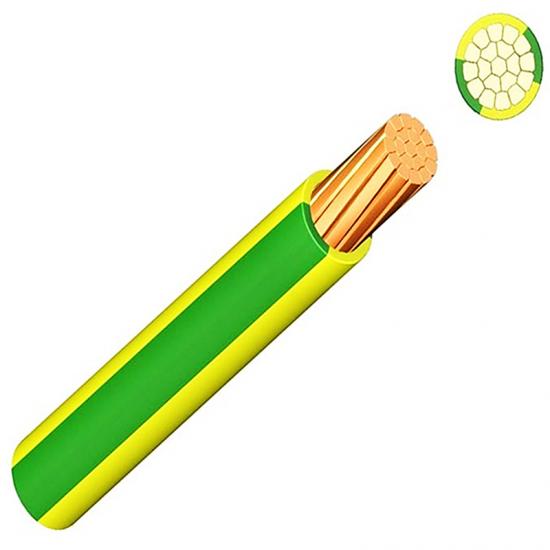

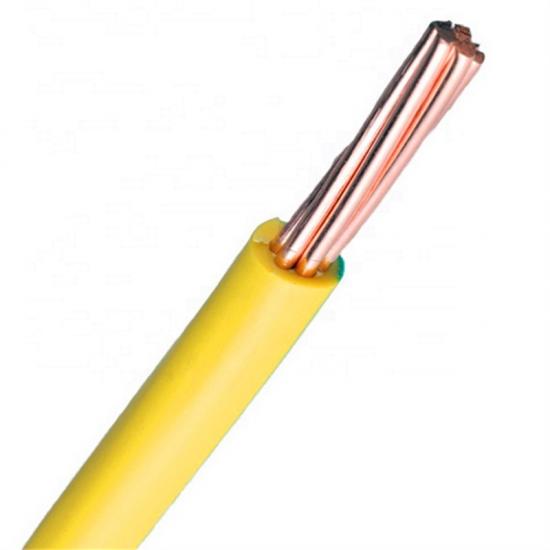

6491X H07V-R Copper Wire PVC Insulated Electrical Cable.
PRODUCTS KEYWORDS
H07V-R, 6491X, NYA, BV, stranded copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
6491X H07V-R Copper Wire PVC Insulated Electrical Cable, are suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

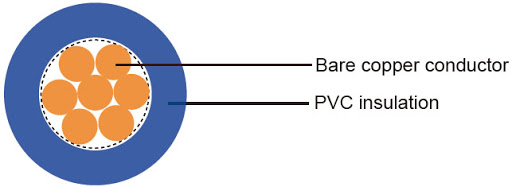

PRODUCTS STRUCTURE
6491X H07V-R Copper Wire PVC Insulated Electrical Cable, the structure as below:
---Conductor Material
Plain annealed copper wire, stranded Class 2.
---Insulation Material
PVC (polyvinyl chloride).
---Sheath Material
Non-Sheath.
PRODUCTS DESCRIPTION
| Description of Cable | Products Main Technical Sheet |
| Products Name |
6491X H07V-R Copper Wire PVC Insulated Electrical Cable. |
| Conductor Material | Plain annealed copper wires, stranded Class 2. |
| Conductor Structure | 7/0.68 mm. |
| Insulation Material | PVC (Polyvinyl Chloride). |
| Insulation Thickness | 0.8 mm. |
| Insulation Colour | Red, yellow, blue, green, black, grey, white, yellow/green, or others. |
| Sheath Material | Non-sheath. |
| Conductor Cross-section | 1 x 2.5 mm2. |
| Core Number | Single core, 1 core, 1C. |
| Out Diameter | 4.0 mm. |
| Voltage Rate | 450/750V (U0/U). |
| About Net Weight | 34 kg/km. |
|
Max. Conductor DC Resistance at 20℃ in Air |
7.41 Ω/km. |
|
Min. Insulated Resistance at 70℃ |
0.010 MΩ.km. |
|
Max. Ampacity at 40 ℃ in air |
34A. |
| Production Standard |
JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31. |
COMPANY PROFILE
WirCablesPro, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.
* How to assure the quality of products?
1. Most of our products have certified.
2. Our QC staff will test the material and check the process card before production.
3. The O.D tester is testing all the time during production, and the production line is always under control.
4. The product will be test by QC staff after producing.
* Do you offer free sample or not?
1. If we have inventory about the sample you need and the total amount is not large,it's free.
2. If we don't have inventory, according to our company's rule, sample and freight cost need to be paid by your esteemed company. And we will return the sample cost to you when you place the first order with us. Thanks for your support.
* When I want customized products, how to do?
We have professional equipments, technicians & skilled empolyees, OEM & customized service is welcome. Drawings or samples are required. Of course, purchase quantity should meet our MOQ.
