H07V-R Stranded Copper Wire Electrical Wires

/

Stranded Copper Conductor H07V-R 6491X BV Electrical Wire and Cables

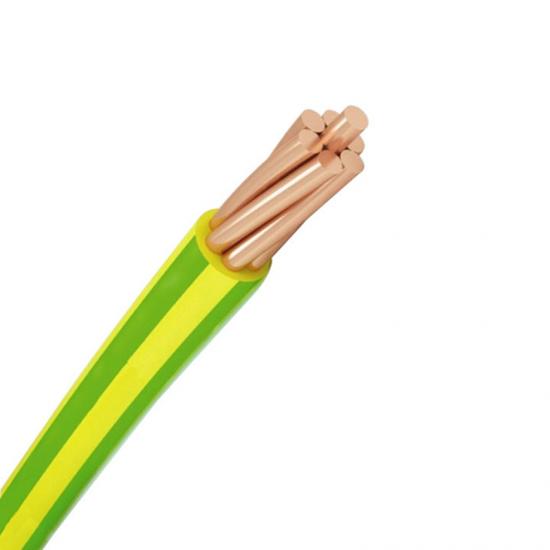

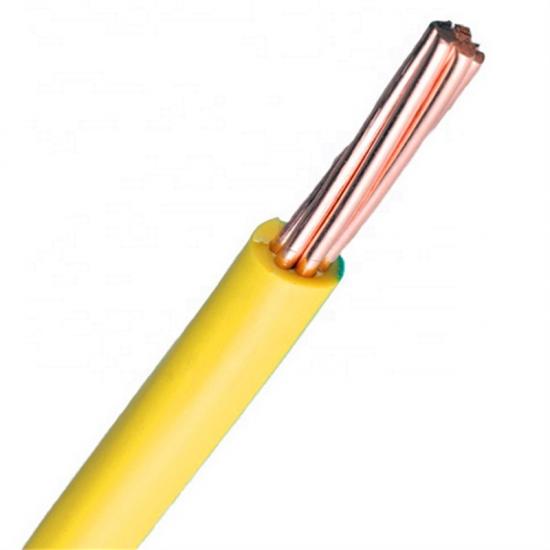

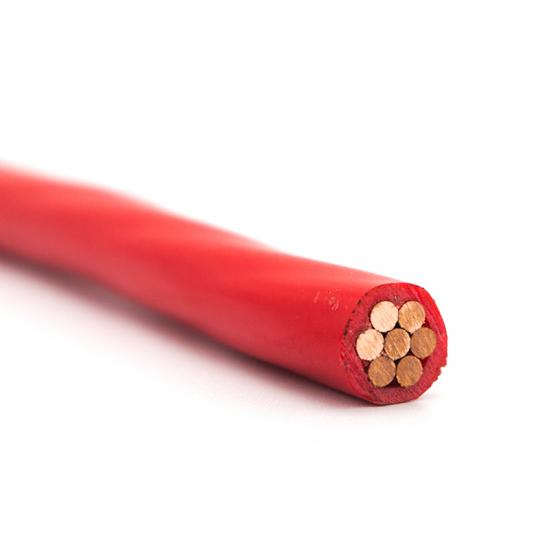

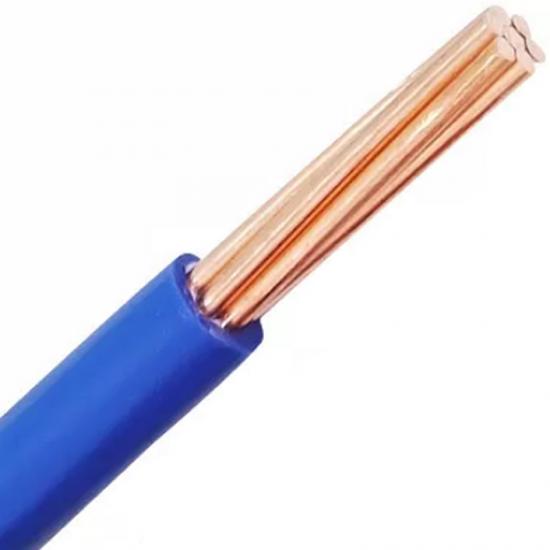

H07V-R Stranded Copper BV
H07V-R Stranded Copper BV
H07V-R Stranded Copper BV
H07V-R Stranded Copper BV
H07V-R Stranded Copper BV
H07V-R Stranded Copper BV

Stranded Copper Conductor H07V-R 6491X BV Electrical Wire and Cables

Stranded Copper Conductor H07V-R 6491X BV Electrical Wire and Cables, these cables are indicated for executing permanent installations in housing, premises and offices, electrical control panels, as well as domestic and industrial lighting.

  • Brand:

    Seebest
  • Item NO.:

    Seebest-EX-072
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Cash.
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 3-7 working days as soon as we received the deposit.

Stranded Copper Conductor H07V-R 6491X BV Electrical Wire and Cables



PRODUCTS FEATURES

  • Standard: EN 50563, IEC 60227
  • Voltage:450/750V
  • Conductor: Class 2 stranded copper conductor
  • Insulation: PVC (Polyvinyl Chloride)
  • Temperature Rating: -15°C to +70°C

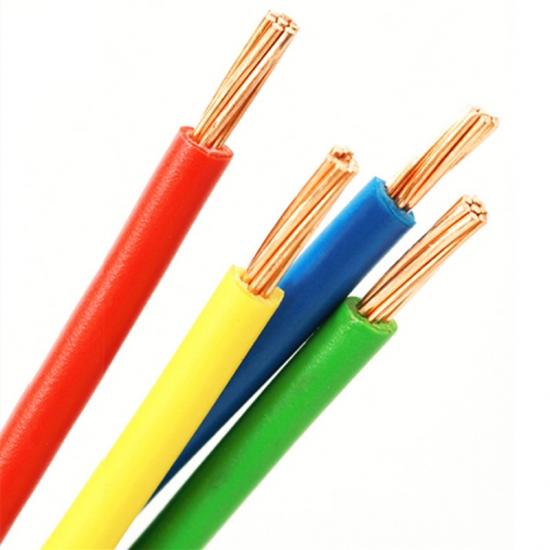

  • Insulation Color: Red, Black, Blue, Orange, Yellow, White, Green/Yellow, Grey, Brown or according to your requirements



PRODUCTS APPLICATION

H07V-R BV Stranded Copper Wire PVC Insulated Electrical Wire and Cables, are suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

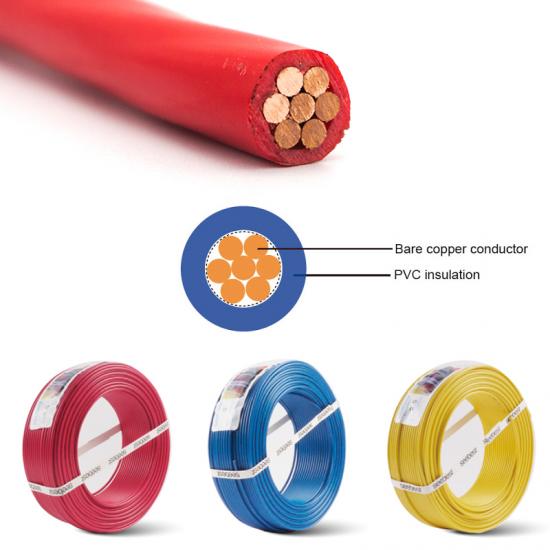

PRODUCTS STRUCTURE

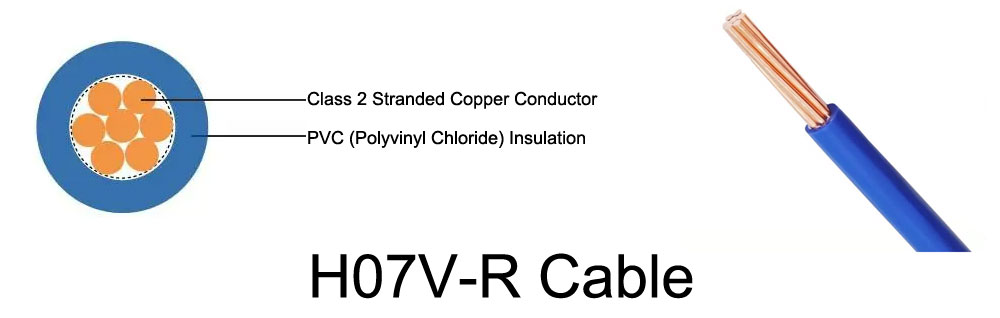

H07V-R Cable

H07V-R Cable structure as below:

---Conductor Material

    Plain annealed copper wire, stranded Class 2.

---Insulation Material

   PVC(polyvinyl chloride).

---Sheath Material

   Non-Sheath.



 PRODUCTS SPECIFICATION



Type No. Of Cores x Nominal Cross Section Conductor Material Conductor Structure Insulation Material Insulation Thickness Reference Max. Diameter Reference Weight Voltage Rating Max. DC Resistance at 20℃ Min. Insulation Resistance at 70℃ Reference Ampacity In Air
at 40℃
(mm2) (pcs/mm) (mm) (mm) (kg/km) (U0/U) (Ω/km) (MΩ*km) (A)
H07V-R 1 x 1.5 Class 2
Stranded Copper
7/0.52 PVC 0.7 3.3 21 450/750V 12.1 0.01 21
1 x 2.5 Class 2
Stranded Copper
7/0.68 PVC 0.8 4 34 450/750V 7.41 0.009 29
1 x 4 Class 2
Stranded Copper
7/0.85 PVC 0.8 4.6 49 450/750V 4.61 0.0077 38
1 x 6 Class 2
Stranded Copper
7/1.04 PVC 0.8 5.2 69 450/750V 3.08 0.0065 49
1 x 10 Class 2
Stranded Copper
7/1.35 PVC 1 6.7 113 450/750V 1.83 0.0065 68
1 x 16 Class 2
Stranded Copper
7/1.70 PVC 1 7.8 175 450/750V 1.15 0.005 91



MORE INFORMATION

H07V-R, H07V-U and H07V-K

Voltage Rating:

450/750V

Conductor:

H07V-U: Class 1 Solid Copper

H07V-R: Class 2 Stranded Copper

Conductor:

H07V-K: Class 5 Flexible Copper

Insulation:

PVC (Polyvinyl Chloride)
