Brand:
SeebestItem NO.:
Seebest-EX-056Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 3-7 working days as soon as we received the deposit.H07V-R, 450/750V Copper Conductor PVC insulated Wire
PRODUCTS NAME

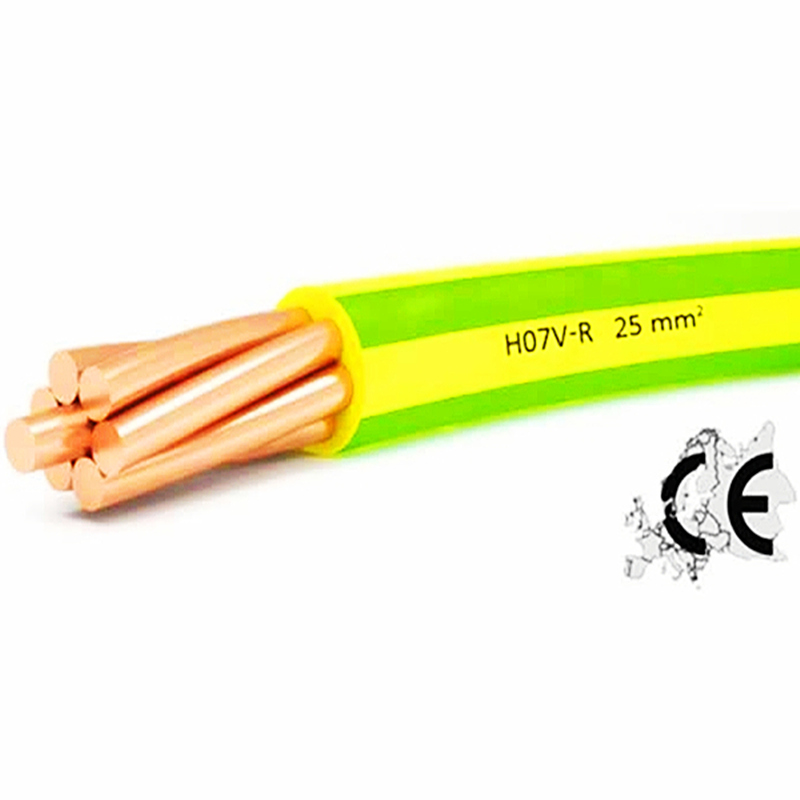

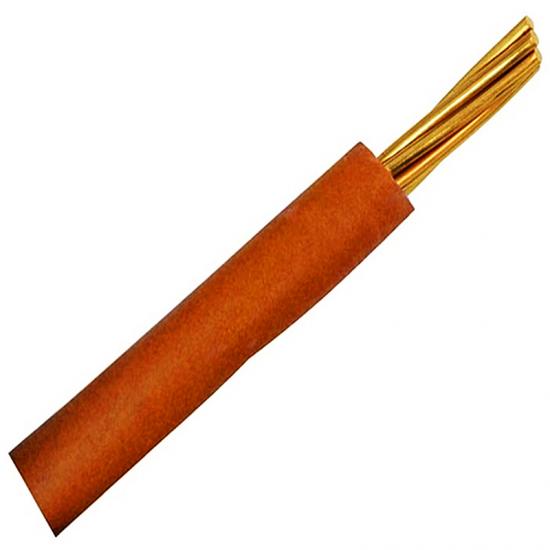

H07V-R, 450/750V Copper Conductor PVC insulated Wire
PRODUCTS KEYWORDS
H07V-R, 6491X, NYA, BV, stranded copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
H07V-R, 450/750V Copper Conductor PVC insulated Wire, are suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.
PRODUCTS STRUCTURE

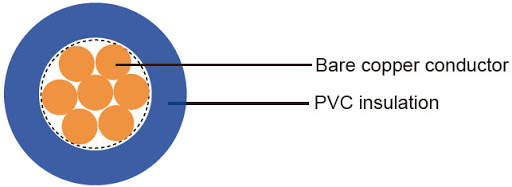

H07V-R, 450/750V Copper Conductor PVC insulated Wire, the structure as below:
---Conductor Material
Plain annealed copper wire, stranded Class 2.
---Insulation Material
PVC(polyvinyl chloride).
---Sheath Material
Non-Sheath.
PRODUCTS DIMENSIONS
| Description of Cable | Description of Products |
| Products Name | H07V-R,450/750V Copper Conductor PVC insulated Wire |
| Conductor Material | Plain annealed copper wires, stranded Class 2. |
| Conductor Structure | 7/0.68 mm. |
| Insulation Material | PVC (Polyvinyl Chloride). |
| Insulation Thickness | 0.8 mm. |
| Insulation Colour | Red, yellow, blue, green, black, grey, white, yellow/green, or others. |
| Sheath Material | Non-sheath. |
| Conductor Cross-section | 2.5 mm². |
| Core Number | Single core, 1 core, 1C. |
| Out Diameter | 3.6 mm. |
| Voltage Rate | 450/750V (U0/U). |
| About Net Weight | 32 kg/km. |
| Production Standard | JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525-2-31. |
|
Max. Conductor DC Resistance at 20℃ in Air |
7.41 Ω/km. |
|
Min. Insulated Resistance at 70℃ |
0.009 MΩ.km. |
|
Max. Ampacity at 40℃ in air |
29A. |
COMPANY PRODUCTS
---Electrical Wires: PVC or LSZH Insulated Electrical Wires.
---Power Cables: 0.6/1kV, PVC, XLPE, or LSZH Insulated Power Cables.
---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282,
VDE 0250, and other Electronic Wires.
---Customized Products: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Power
Cables, LSZH, LSOH, LSFH and other RoHs Cables, and Environmental Protection Cables.
---Communication Cables: Networking Cables, Telephone Cables, Coaxial Cables, Speaker Cables.
---Power Plugs: CCC, UL, VDE, and other standerds Power Plugs.
COMPANY FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.
2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.
3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm², the MOQ is 5,000 meters;
For the Power Cables more than 25mm², the MOQ is 1,000 meters;
For the networking cables, the MOQ is 100 boxes/cartons;
For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.
For other customized wire and cables, please negotiate the MOQ with us immediately.
