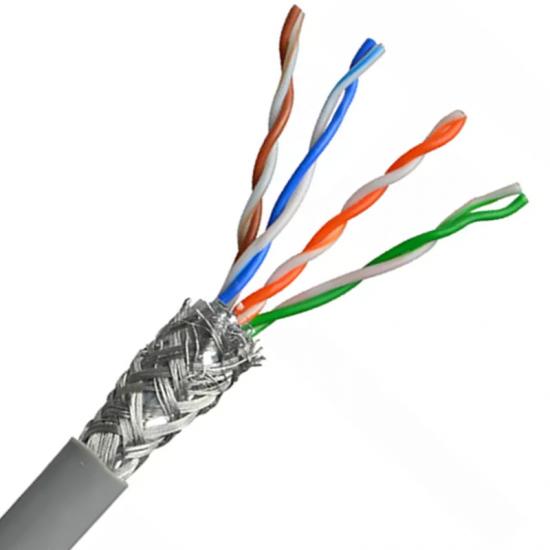

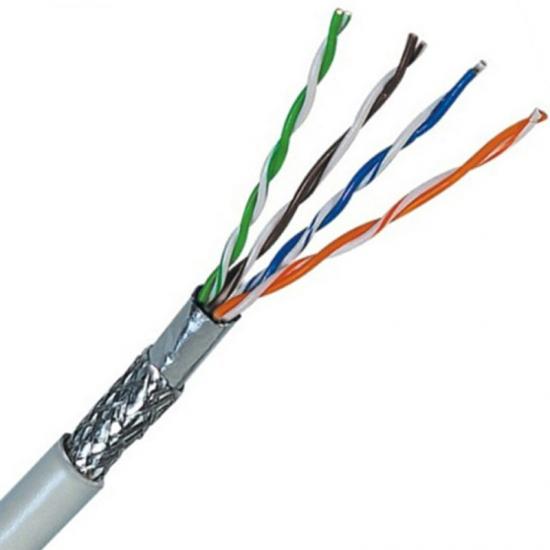

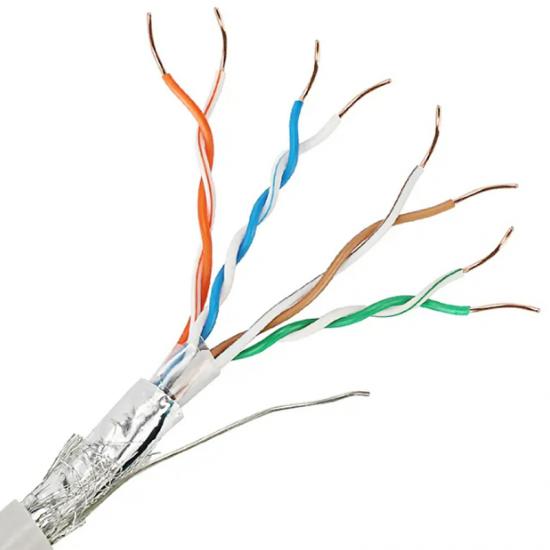

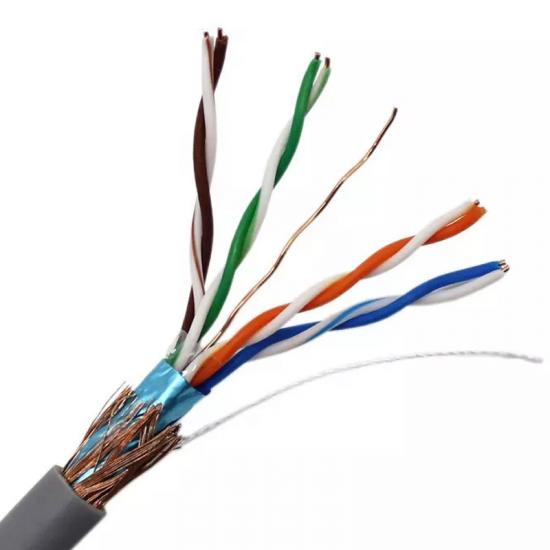

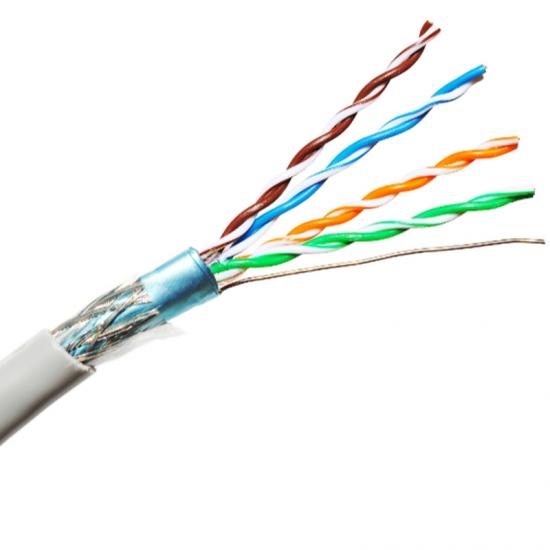

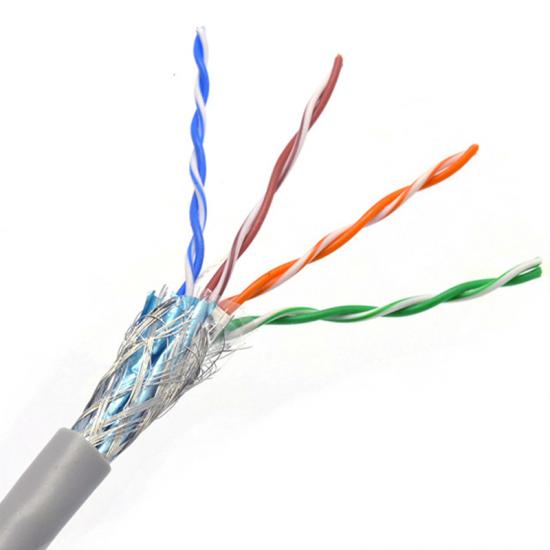

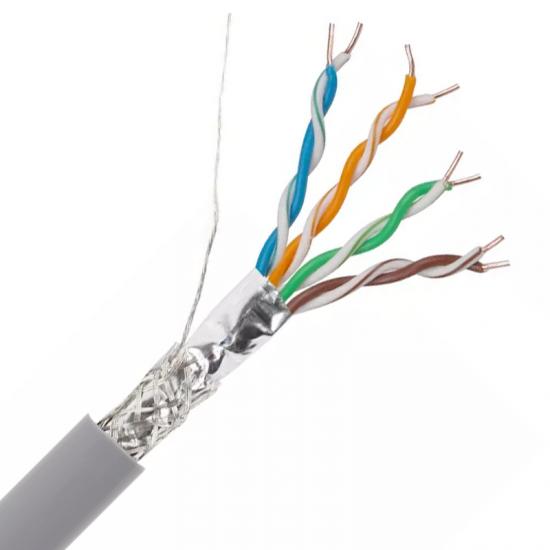

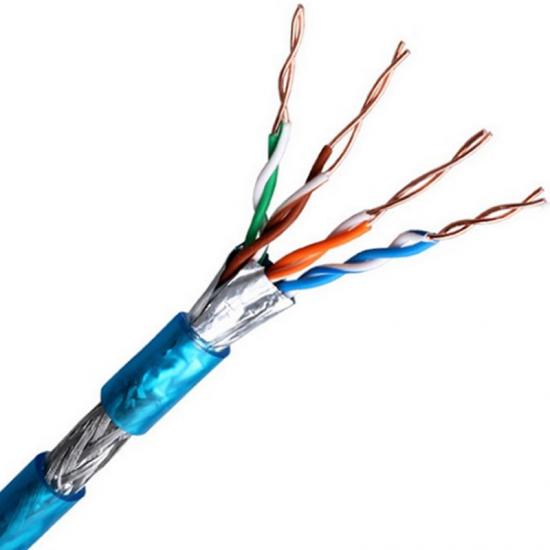

Aluminum Foil And Braiding Screened Cat 5e SFTP Network Cable

Cat 5e SFTP Networking Cable
Cat 5e SFTP Networking Cable
Cat 5e SFTP Networking Cable
Cat 5e SFTP Networking Cable
Cat 5e SFTP Networking Cable
Cat 5e SFTP Networking Cable
Cat 5e SFTP Networking Cable
Cat 5e SFTP Networking Cable

Aluminum Foil And Braiding Screened Cat 5e SFTP Network Cable

CAT5e SFTP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 100 Mhz.  Tinned Copper gives Protection against EMI and avoid signal loss with Higher Mechanical protection.

  • Brand:

    Seebest
  • Item NO.:

    Seebest-EX-068
  • Payment:

    T/T, L/C, Cash.
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 10-15 working days as soon as we received the deposit.

Aluminum Foil And Braiding Screened Cat 5e SFTP Network Cable


PRODUCTS FEATURES

  • 4-pair shielded twisted pair cable
  • 24 AWG solid copper conductor
  • Overall aluminum foil and overall tinned copper or Al-Mg braiding
  • HDPE insulation
  • PVC Sheath
  • Meets the requirements of TIA/EIA 568B & ISO/IEC 11801
  • Packaged in an easy-to-pull box for easier installation



PRODUCTS APPLICATION

4 pair high performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 5E supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second  (Gigabit Ethernet).




PRODUCTS SPECIFICATION

 Description of Cable   Products Main Technical Sheet
 Products Name

 Aluminum Foil And Braiding Screened Cat 5e SFTP Network Cable

 Conductor Material  Plain annealed copper wires, bare copper, Class 1.
 Conductor Structure  8C x 1/0.50 mm.
 Insulation Material  HDPE (High Density Polyethylene).
 Insulation Thickness  0.21 mm.
 Insulation Colour

 Brown, brown/white; blue; blue/white;

 orange, orange/white; green, green/white.

 Screen  Aluminum Foil
Braiding
 Tinned copper or Al-Mg braiding
 Sheath Material  PVC (Polyvinyl Chloride).
 Sheath Thickness   0.50 mm.
 Sheath Colour  White, brown, orange, grey, blue, or black.
 Core Number  8 cores, 8C, 4x2 Cores.
 Out Diameter  6.6 mm.
 About Net Weight  14 kg/box.
 Production Standard  ANSI/EIA/TIA-568B, ISO/IEC 11801.
 Packing Type

305 meters per roll with inner box, 4 inner boxes in 1 carton or as your request.


ELECTRICAL CHARACTERISTICS

Frequency (MHZ)

Impedance (ohm)

Return Loss (dB)

Attenuation (dB/100m)

NEXT Power Pair (dB)

ACR (dB)

Next Power Sum (dB)

ELFEXT Worst Pair (dB/100m)

ELEXT Power Sum (dB/100m)

Nominal Velocity Propagation

0.772

100 ± 15

19.4

1.8

76.0

74.0

74.0

70.0

67.0

0.65

1.0

100 ± 15

20.0

2.0

74.3

72.0

72.3

67.8

64.8

4.0

100 ± 15

23.0

3.8

65.5

61.0

63.3

55.8

52.8

8.0

100 ± 15

24.5

5.3

60.8

55.0

58.8

49.7

46.7

10.0

100 ± 15

25.0

6.0

59.3

53.0

57.3

47.8

44.8

16.0

100 ± 15

25.0

7.6

56.2

49.0

54.2

43.7

40.7

20.0

100 ± 15

25.0

8.5

54.8

46.0

52.8

41.8

38.8

25.0

100 ± 15

24.3

9.5

53.3

44.0

51.3

39.8

36.8

31.25

100 ± 15

23.6

10.7

51.9

41.0

49.9

37.9

34.9

62.5

100 ± 15

21.5

15.4

47.4

32.0

45.4

31.9

28.9

100.0

100 ± 15

20.1

19.8

44.3

24.5

42.3

27.8

24.8

200.0

100 ± 22

18.0

29.0

39.8

10.8

37.8

21.8

18.8

250.0

100 ± 22

17.3

32.8

38.3

5.5

36.3

19.8

16.8


MORE INFORMATION

Product

Cat 5e Network Cable Construction

Cat 6 Network Cable Construction

Cat 5e UTP

Cat 5e FTP

Cat 5e SFTP

Cat 6 UTP

Cat 6 FTP

Cat 6 SFTP

Number of Twisted Pairs

4

4

4

4

4

4

Conductor

24 AWG Solid Bare Copper (Class 1)

23 AWG Solid Bare Copper (Class 1)

Insulation

High Density Polyethylene (HDPE)

High Density Polyethylene (HDPE)

Drain Wire

Optional

Optional

Optional

Optional

Optional

Optional

Separator

-

-

-

Yes

Yes

Yes

Screen

-

Aluminum Foil

Aluminum Foil

-

Aluminum Foil

Aluminum Foil

Braiding

-

-


Tinned Copper
or Al-Mg


-

-


Tinned Copper
or Al-Mg


Rip Cord

Optional

Optional

Optional

Optional

Optional

Optional

Sheath

PVC or LSZH

PVC or LSZH

PVC or LSZH

PVC or LSZH

PVC or LSZH

PVC or LSZH
