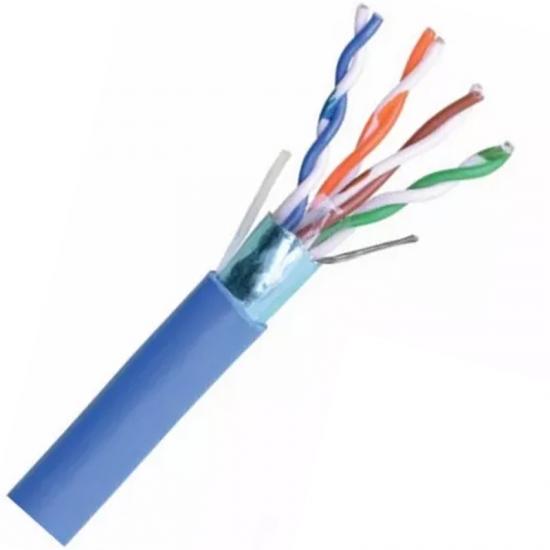

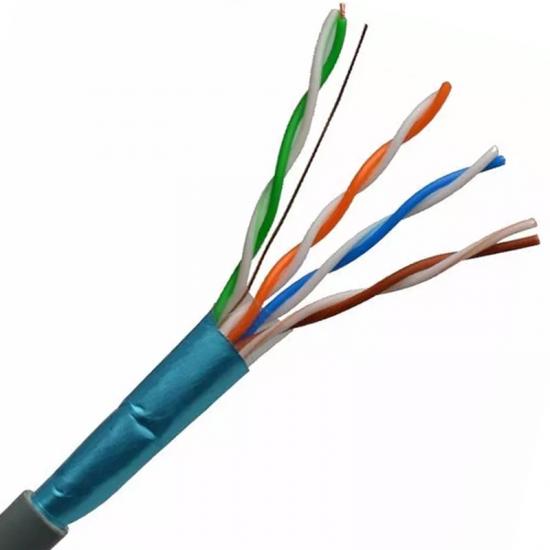

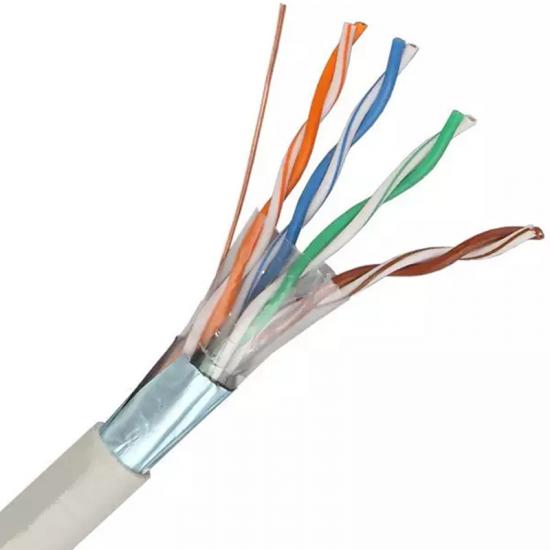

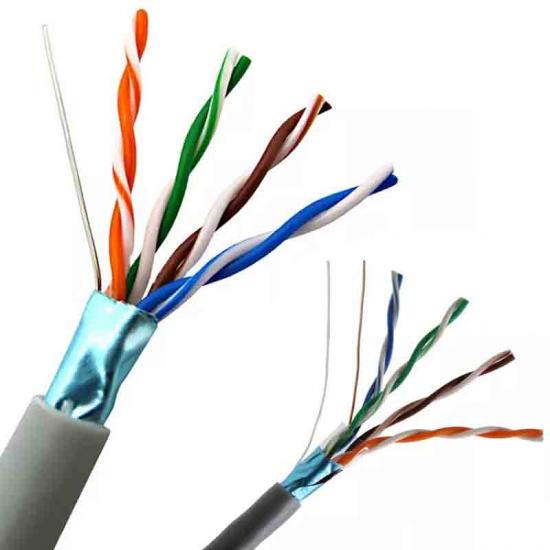

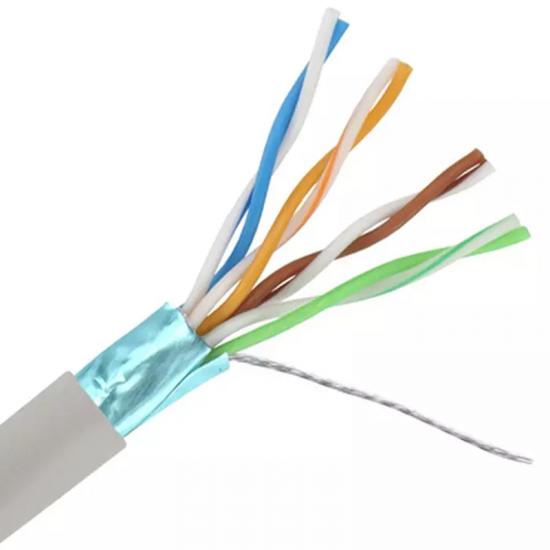

24AWG 4 Pairs PVC Sheath Solid Bare Copper Cat 5e FTP Network Cable
Cat 5e FTP is a foiled cable used when an extra form of protection is needed such as in devices where there is a high degree of EMI. These cables have been guaranteed to deliver 100MHz speed for fast data transmission. Unlike UTP cables where the cables are unshielded, FTP cables ensure further elimination of noise from crosstalks.
Brand:
SeebestItem NO.:
Seebest-EX-070Order(MOQ):
100Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit.24AWG 4 Pairs PVC Sheath Solid Bare Copper Cat 5e FTP Network Cable

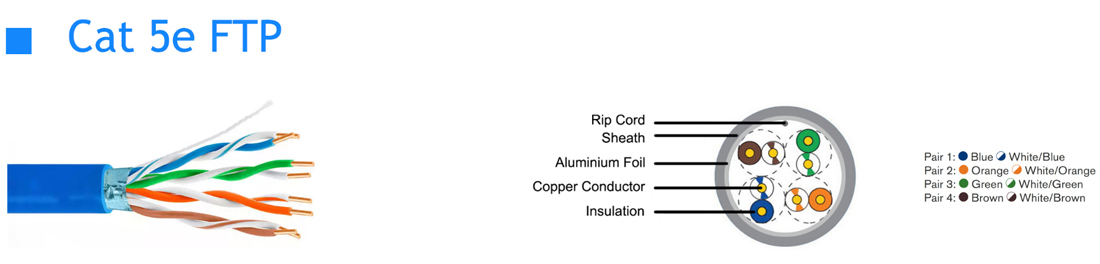

PRODUCTS CONSTRUCTION

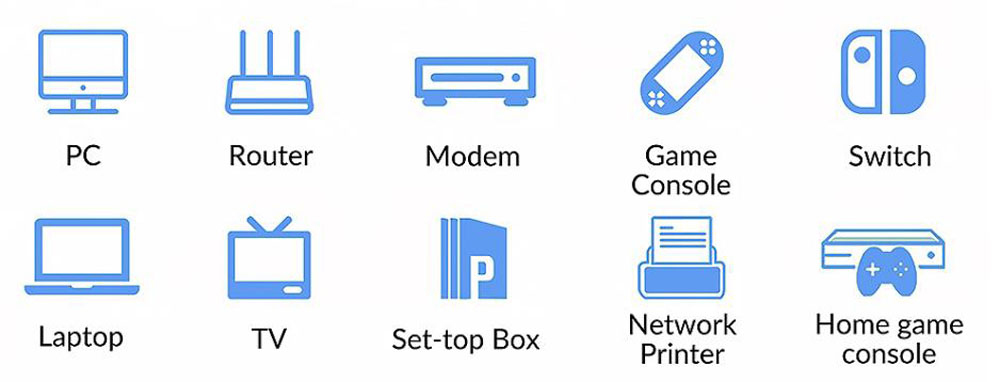

PRODUCTS APPLICATION
24AWG 4 Pairs PVC Sheath Solid Bare Copper Cat 5e FTP Network Cable. 4 pair high performance cable that consists of twisted pair conductors, used mainly for data transmission. Category 5E supports a frequency range of up to 100MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet).
PRODUCTS SPECIFICATION
| Description of Cable | Products Main Technical Sheet |
| Products Name |
24AWG 4 Pairs PVC Sheath Solid Bare Copper Cat 5e FTP Network Cable. |
| Conductor Material | Plain annealed copper wires, bare copper, Class 1. |
| Conductor Structure | 8C x 1/0.50 mm. |
| Insulation Material | HDPE (High Density Polyethylene). |
| Insulation Thickness | 0.21 mm. |
| Insulation Color |
Brown, brown/white; blue; blue/white; orange, orange/white; green, green/white. |
| Sheath Material | PVC (Polyvinyl Chloride). |
| Sheath Thickness | 0.50 mm. |
| Sheath Color | White, brown, orange, grey, blue, or black. |
| Screen | Aluminium Foil |
| Core Number | 8 cores, 8C, 4x2 Cores. |
| Out Diameter | 6.2 mm. |
| About Net Weight | 14 kg/box. |
| Production Standard | ANSI/EIA/TIA-568B, ISO/IEC 11801. |
| Packing Type |

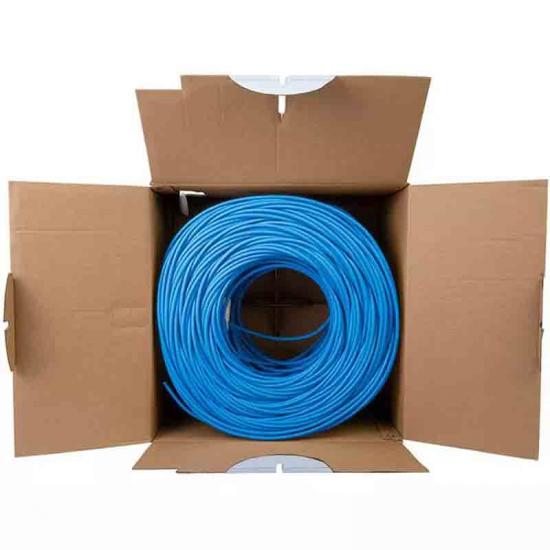

305 meters per box, 4 inner boxes has been loaded into 1 outer carton box. |
ELECTRICAL CHARACTERISTICS
|
Frequency (MHZ) |
Impendance (ohm) |
Return Loss (dB) |
Attenuation (dB/100m) |
NEXT Power Pair (dB) |
ACR (dB) |
Next Power Sum (dB) |
ELFEXT Worst Pair (dB/100m) |
ELEXT Power Sum (dB/100m) |
Nominal Velocity Propagation |
|
0.772 |
100 ± 15 |
19.4 |
1.8 |
76.0 |
74.0 |
74.0 |
70.0 |
67.0 |
0.65 |
|
1.0 |
100 ± 15 |
20.0 |
2.0 |
74.3 |
72.0 |
72.3 |
67.8 |
64.8 |
|
|
4.0 |
100 ± 15 |
23.0 |
3.8 |
65.5 |
61.0 |
63.3 |
55.8 |
52.8 |
|
|
8.0 |
100 ± 15 |
24.5 |
5.3 |
60.8 |
55.0 |
58.8 |
49.7 |
46.7 |
|
|
10.0 |
100 ± 15 |
25.0 |
6.0 |
59.3 |
53.0 |
57.3 |
47.8 |
44.8 |
|
|
16.0 |
100 ± 15 |
25.0 |
7.6 |
56.2 |
49.0 |
54.2 |
43.7 |
40.7 |
|
|
20.0 |
100 ± 15 |
25.0 |
8.5 |
54.8 |
46.0 |
52.8 |
41.8 |
38.8 |
|
|
25.0 |
100 ± 15 |
24.3 |
9.5 |
53.3 |
44.0 |
51.3 |
39.8 |
36.8 |
|
|
31.25 |
100 ± 15 |
23.6 |
10.7 |
51.9 |
41.0 |
49.9 |
37.9 |
34.9 |
|
|
62.5 |
100 ± 15 |
21.5 |
15.4 |
47.4 |
32.0 |
45.4 |
31.9 |
28.9 |
|
|
100.0 |
100 ± 15 |
20.1 |
19.8 |
44.3 |
24.5 |
42.3 |
27.8 |
24.8 |
|
|
200.0 |
100 ± 22 |
18.0 |
29.0 |
39.8 |
10.8 |
37.8 |
21.8 |
18.8 |
|
|
250.0 |
100 ± 22 |
17.3 |
32.8 |
38.3 |
5.5 |
36.3 |
19.8 |
16.8 |
