VDE AC Power Cord CEE 7/16 Europe Two Pins Plug IEC C7 Connector

European VDE Power Cords
European VDE Power Cords
European VDE Power Cords
European VDE Power Cords
European VDE Power Cords
European VDE Power Cords
European VDE Power Cords

VDE AC Power Cord CEE 7/16 Europe Two Pins Plug IEC C7 Connector

The Figure 8 power cord can be used for scanners, printers, LED TV monitors, projectors, powered speakers, other devices that have the 2 prong power connector. The Europe AC plugs and sockets are used in most European countries are the most popular power plugs types.

  • Brand:

    Seebest
  • Item NO.:

    Seebest-EX-078
  • Order(MOQ):

    3000
  • Payment:

    T/T, L/C, Cash.
  • Product Origin:

    Xiamen City, China.
  • Color:

    Black or Customized according to client's requirements.
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    15-30 working days as soon as we received the deposit.

VDE AC Power Cord CEE 7/16 Europe Two Pins Plug IEC C7 Connector



PRODUCTS FEATURES

Seebest AC Power Cord 2Pin Plug C7 Connector

  • Plug type: CEE7/16 Euro Plug
  • Standard: CEE7/16, EN50075, DIN VDE 0620
  • Approvals: VDE
  • Electricity: 2.5A, 250V
  • Number of Poles and Wires: 2 Poles 2 Wires
  • Cable length: 1.0m, 1.5m, 1.8m or custom length

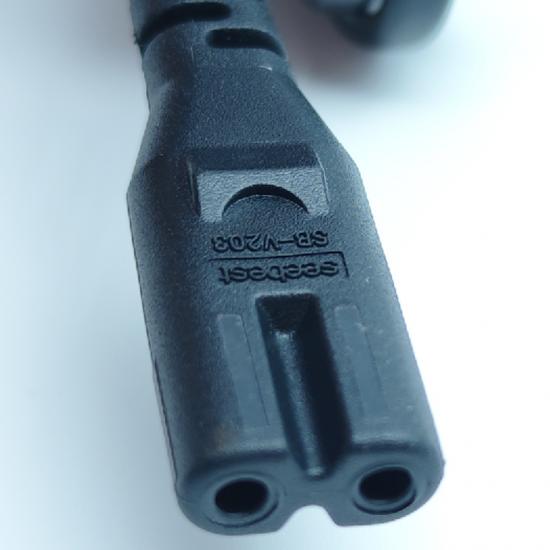

  • End: IEC 60320 C7
  • Color: Black is standard or custom color
  • Outer Mold Material: PVC, Rubber
  • Plug Insert Material: PBT, ABS
  • Blade Material: Nickel Coated Brass
  • Wire Sheath Material: PVC
  • Environmental Certifications: RoHS, REACH


PRODUCTS APPLICATION

The EU German type Euro plug with electrical rates 2.5A, voltage 220V, according to the CEE7/16 (European plug), Connector Standards IEC 60320 (320) C7 figure 8 connector, connected with a two-wire ungrounded plug rated at 2.5 Amp, 250 V defined by CEE 7/16. The AC power cord is mainly used in Air Conditioners, Fridge, Washing Machines, Rice Cookers, Induction Cooker, Electric Fans, Electric Irons, Microwave Ovens, Computers, Laptops, Lamps, Various chargers and other small household appliances, electric tools and industrial use electrical equipment.

AC Power Cord Application



PRODUCTS STRUCTURE

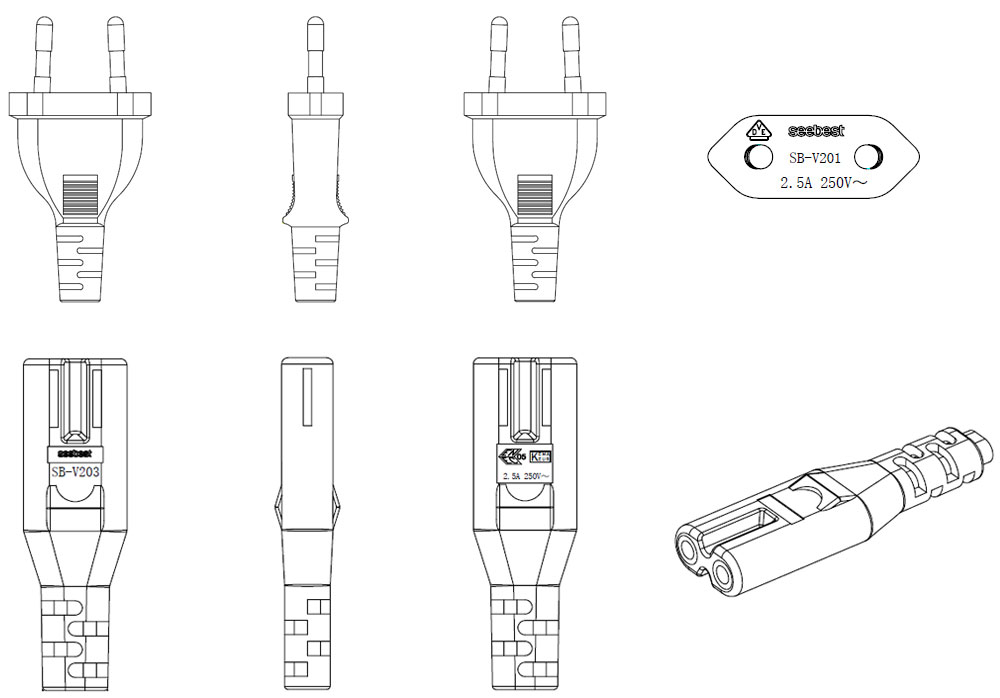

European VDE Power Cord 2 Pins Plug and IEC C7 Connector structure as below:

CEE7/16 Plug to C7 Connector



PRODUCTS SPECIFICATION

Approval:

VDE

OEM:

Yes

Current voltage:

250V

Overall diameter:

Criterion/OEM

Current rating:

2.5A

Outer Mold Material:

PVC

Number of Poles and Wires:

2 Poles, 2 Wires

Blade Material:

Nickel coated Brass

Cable End Termination:

C7

Contact Pin:

Nickel coated Brass

Color:

Black is standard and custom color is available

Conductor:

Bare or tinned stranded Copper

Environment Protections:

ROHS, REACH

Packing:

Standard Carton

CABLE TYPE:

H03VVH2-F 2*0.5mm2-0.75mm2

H05VVH2-F 2*0.75mm2
