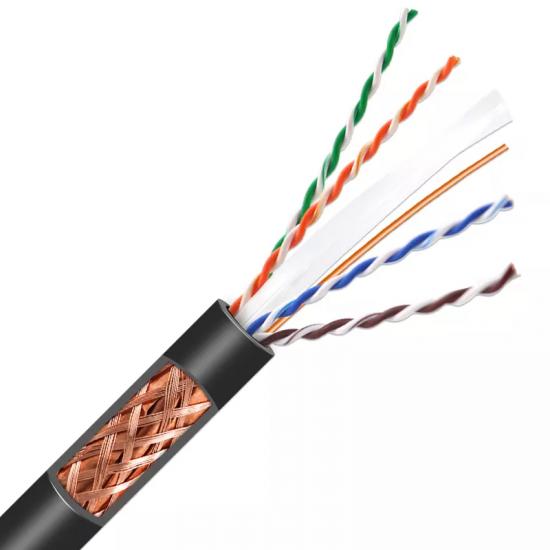

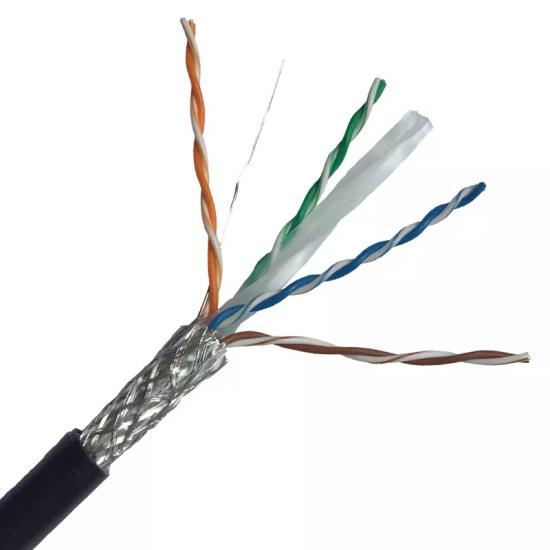

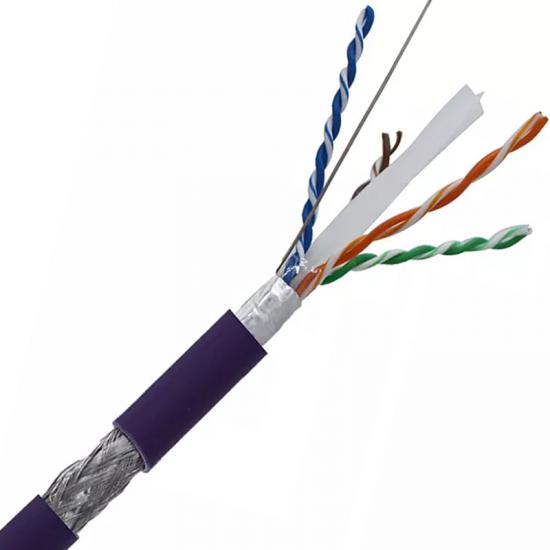

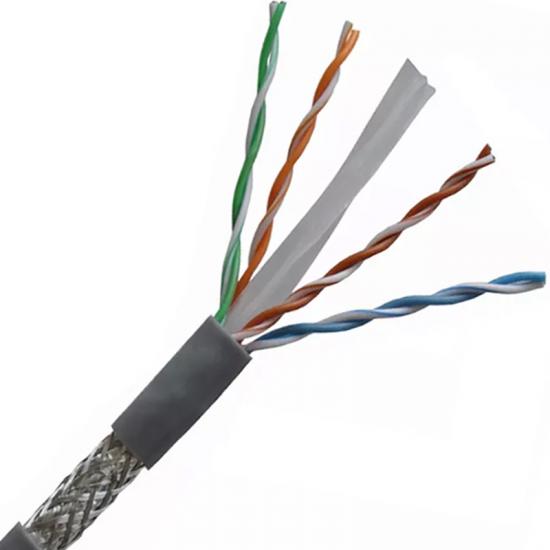

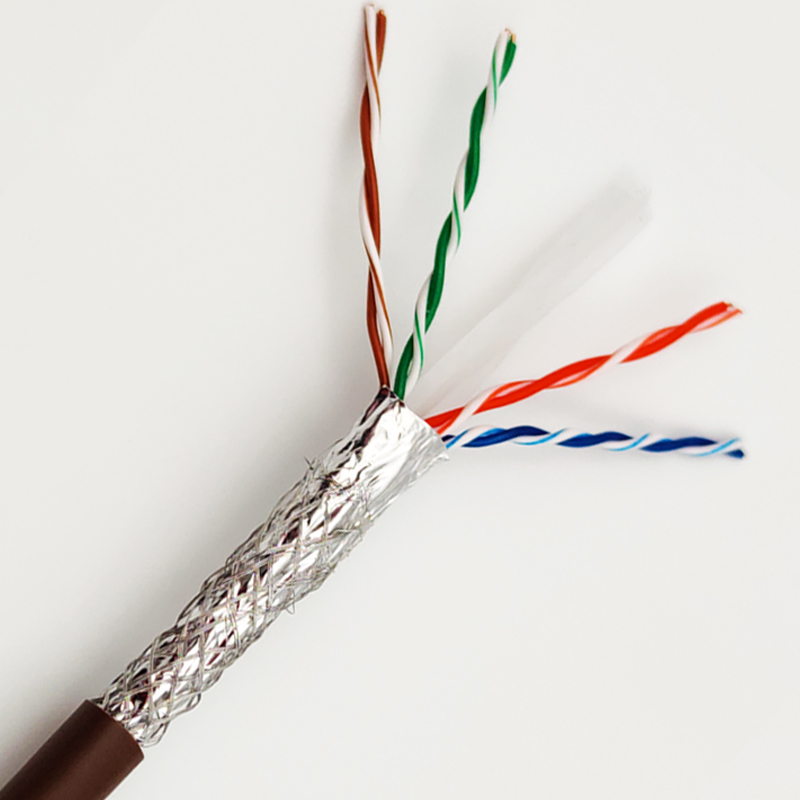

CAT6 SFTP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 250 Mhz. Tinned Copper Screening gives protection against EMI and avoid signal loss. Better mechanical properties of cable.
Brand:
SeebestItem NO.:
Seebest-EX-069Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 10-15 working days as soon as we received the deposit.High Speed 23AWG Solid Bare Copper Cat6 SFTP Network Cable
PRODUCTS FEATURES

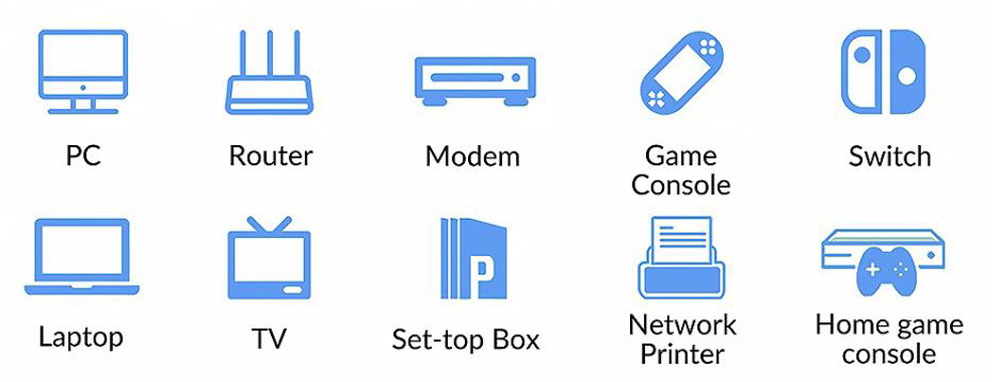

PRODUCTS APPLICATION
CAT6 SFTP Cable supports Gigabit Ethernet (1000 Base-T) standard. Operates at a bandwidth up to 250 Mhz. Tinned Copper Screening gives protection against EMI and avoid signal loss. Better Mechanical Properties of cable.
PRODUCTS SPECIFICATION
| Description of Cable | Products Main Technical Sheet |
| Products Name |
High Speed 23AWG Solid Bare Copper Cat6 SFTP Network Cable. |
| Conductor Material | Plain annealed copper wires, bare copper, Class 1. |
| Conductor Structure | 8C x 1/0.57 mm, 23 AWG. |
| Insulation Material | HDPE (High Density Polyethylene). |
| Insulation Thickness | 0.22 mm. |
| Insulation Colour |
Brown, brown/white; blue; blue/white; orange, orange/white; green, green/white. |
| Sheath Material | PVC (Polyvinyl Chloride). |
| Sheath Thickness | 0.50 mm. |
| Sheath Colour | White, brown, orange, grey, blue, or black. |
| Screen | Aluminum Foil |
|
Braiding |
Tinned Copper or Aluminum Magnesium Alloy Braiding |
| Core Number | 8 cores, 8C, 4x2 Cores. |
| Out Diameter | 7.0 mm. |
| About Net Weight | 14 kg/305m box. |
| Production Standard | ANSI/EIA/TIA-568B, ISO/IEC 11801. |
| Packing Type |

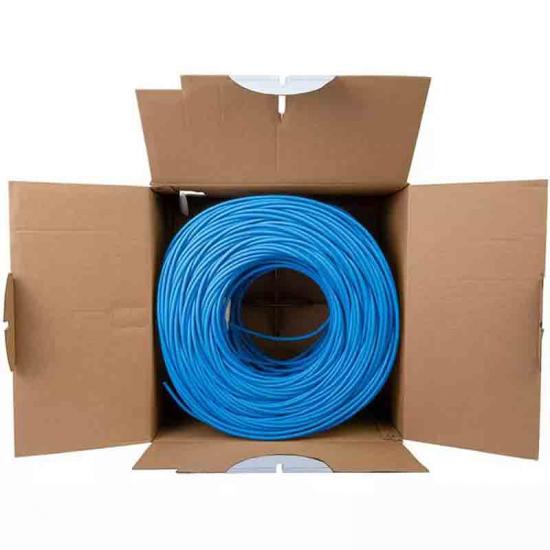

100meters or 305 meters per box, 2 boxes has been loaded into one outer carton. |
ELECTRICAL CHARACTERISTICS
|
Frequency (MHZ) |
Impendance (ohm) |
Return Loss (dB) |
Attenuation (dB/100m) |
NEXT Power Pair (dB) |
ACR (dB) |
Next Power Sum (dB) |
ELFEXT Worst Pair (dB/100m) |
ELEXT Power Sum (dB/100m) |
Nominal Velocity Propagation |
|
0.772 |
100 ± 15 |
19.4 |
1.8 |
76.0 |
74.0 |
74.0 |
70.0 |
67.0 |
0.65 |
|
1.0 |
100 ± 15 |
20.0 |
2.0 |
74.3 |
72.0 |
72.3 |
67.8 |
64.8 |
|
|
4.0 |
100 ± 15 |
23.0 |
3.8 |
65.5 |
61.0 |
63.3 |
55.8 |
52.8 |
|
|
8.0 |
100 ± 15 |
24.5 |
5.3 |
60.8 |
55.0 |
58.8 |
49.7 |
46.7 |
|
|
10.0 |
100 ± 15 |
25.0 |
6.0 |
59.3 |
53.0 |
57.3 |
47.8 |
44.8 |
|
|
16.0 |
100 ± 15 |
25.0 |
7.6 |
56.2 |
49.0 |
54.2 |
43.7 |
40.7 |
|
|
20.0 |
100 ± 15 |
25.0 |
8.5 |
54.8 |
46.0 |
52.8 |
41.8 |
38.8 |
|
|
25.0 |
100 ± 15 |
24.3 |
9.5 |
53.3 |
44.0 |
51.3 |
39.8 |
36.8 |
|
|
31.25 |
100 ± 15 |
23.6 |
10.7 |
51.9 |
41.0 |
49.9 |
37.9 |
34.9 |
|
|
62.5 |
100 ± 15 |
21.5 |
15.4 |
47.4 |
32.0 |
45.4 |
31.9 |
28.9 |
|
|
100.0 |
100 ± 15 |
20.1 |
19.8 |
44.3 |
24.5 |
42.3 |
27.8 |
24.8 |
|
|
200.0 |
100 ± 22 |
18.0 |
29.0 |
39.8 |
10.8 |
37.8 |
21.8 |
18.8 |
|
|
250.0 |
100 ± 22 |
17.3 |
32.8 |
38.3 |
5.5 |
36.3 |
19.8 |
16.8 |
MORE INFORMATION
|
Cat 5e Network Cable Construction |
Cat 6 Network Cable Construction |
|||||
|
Cat 5e UTP |
Cat 5e FTP |
Cat 5e SFTP |
Cat 6 UTP |
Cat 6 FTP |
Cat 6 SFTP |
|
|
Number of Twisted Pairs |
4 |
4 |
4 |
4 |
4 |
4 |
|
Conductor |
24 AWG Solid Bare Copper (Class 1) |
23 AWG Solid Bare Copper (Class 1) |
||||
|
Insulation |
High Density Polyethylene (HDPE) |
High Density Polyethylene (HDPE) |
||||
|
Drain Wire |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Separator |
- |
- |
- |
Yes |
Yes |
Yes |
|
Screen |
- |
Aluminum Foil |
Aluminum Foil |
- |
Aluminum Foil |
Aluminum Foil |
|
Braiding |
- |
- |
Tinned Copper
or Al-Mg
|
- |
- |
Tinned Copper
or Al-Mg
|
|
Rip Cord |
Optional |
Optional |
Optional |
Optional |
Optional |
Optional |
|
Sheath |
PVC or LSZH |
PVC or LSZH |
PVC or LSZH |
PVC or LSZH |
PVC or LSZH |
PVC or LSZH |
Category 6 supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). Cat 6 FTP twisted-pair cables with foil shielded have significantly improved parameters, and the bandwidth has been extended to 250MHz or more.
