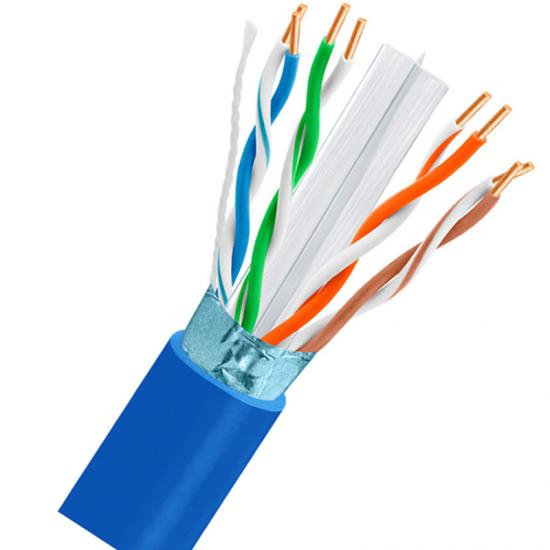

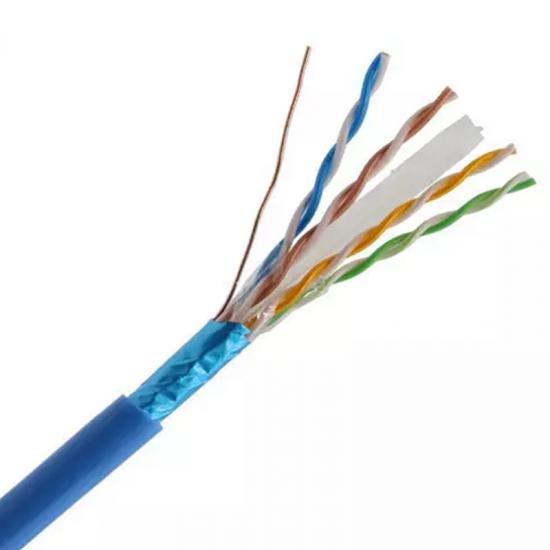

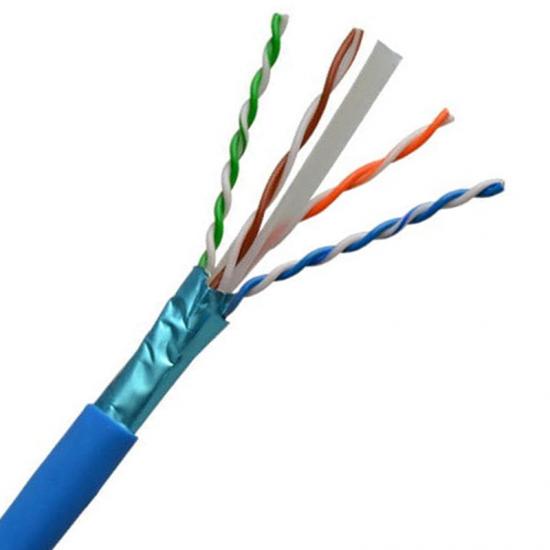

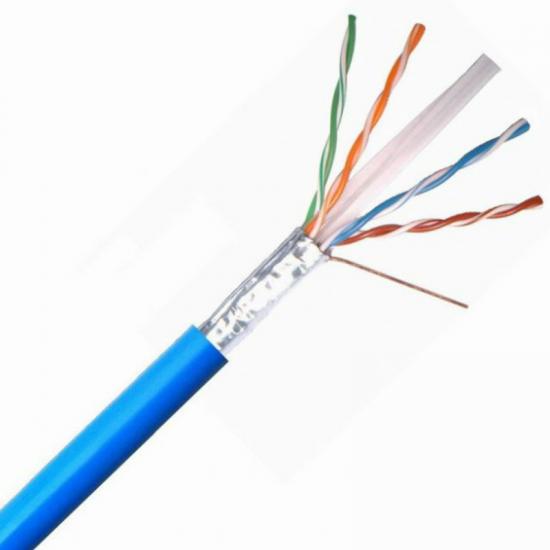

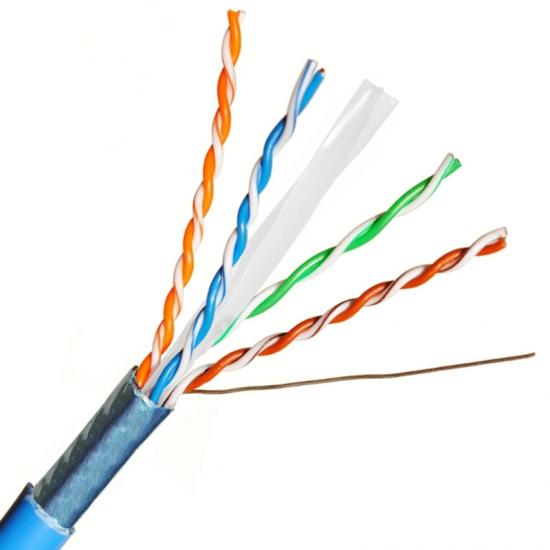

Solid Bare Copper Conductor Cat6 FTP Network Cable

Cat6 FTP Network Cable
Cat6 FTP Network Cable
Cat6 FTP Network Cable
Cat6 FTP Network Cable
Cat6 FTP Network Cable
Cat6 FTP Network Cable

Solid Bare Copper Conductor Cat6 FTP Network Cable

Category 6 supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). Cat 6 FTP twisted-pair cables with foil shielded have significantly improved parameters, and the bandwidth has been extended to 250MHz or more.

  • Brand:

    Seebest
  • Item NO.:

    Seebest-EX-038
  • Order(MOQ):

    100
  • Payment:

    T/T, L/C, Cash.
  • Product Origin:

    Xiamen City, China.
  • Color:

    Red, yellow, blue, green, brown, black, white, grey
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 10-15 working days as soon as we received the deposit.

Solid Bare Copper Conductor Cat6 FTP Network Cable

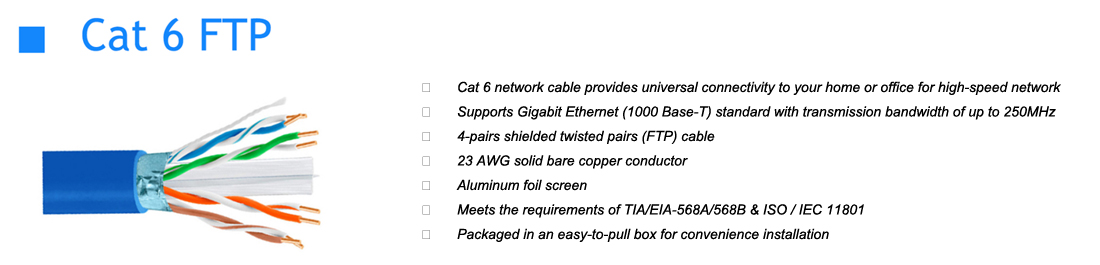

Cat 6 FTP Network Cable





Products Application

Category 6 supports a frequency range of up to 250MHz and is designed for transmission speeds of up to 1 gigabit per second (Gigabit Ethernet). Cat6 offer improved performance and transmission reliability, especially in connection with the 1000BaseT and 1000BaseTX protocols.

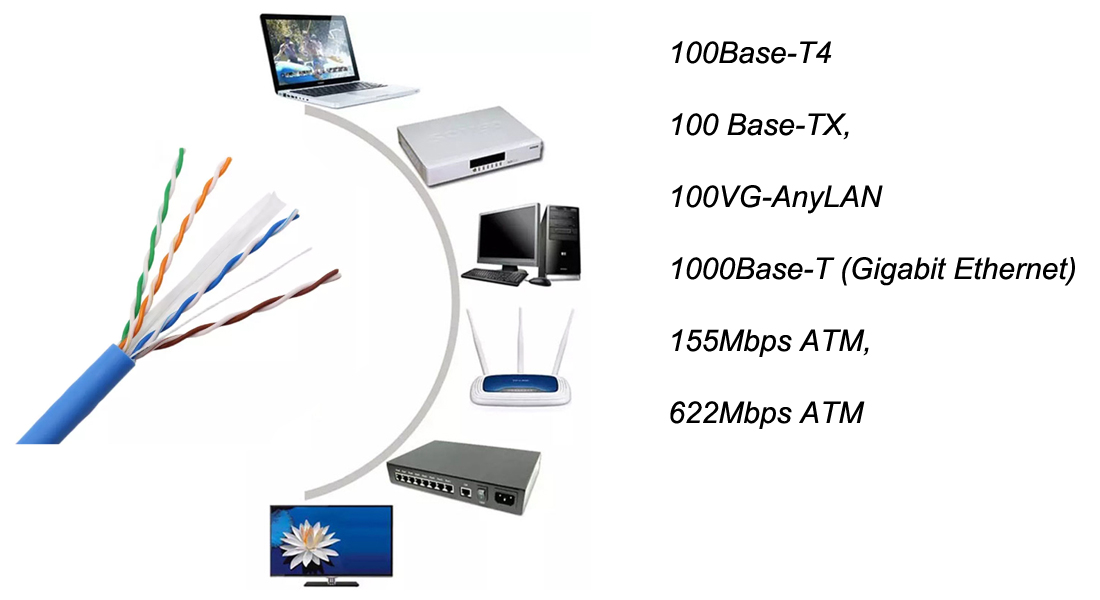

Network Cable Application


Products Specification

 Description of Cable   Products Main Technical Sheet
 Products Name

 Solid Bare Copper Conductor Cat6 FTP Network Cable.

 Conductor Material  Plain annealed copper wires, bare copper, Class 1.
 Conductor Structure  8C x 1/0.57 mm.
 Insulation Material  HDPE (High Density Polyethylene).
 Insulation Thickness  0.22 mm.
 Insulation Color

 Brown, brown/white; blue; blue/white;

 orange, orange/white; green, green/white.

 Sheath Material  PVC (Polyvinyl Chloride).
 Sheath Thickness   0.50 mm.
 Sheath Color  White, brown, orange, grey, blue, or black.
 Core Number  8 cores, 8C, 4x2 Cores.
 Out Diameter  6.5 mm.
 About Net Weight  14 kg/box.
 Production Standard  ANSI/EIA/TIA-568B, ISO/IEC 11801.

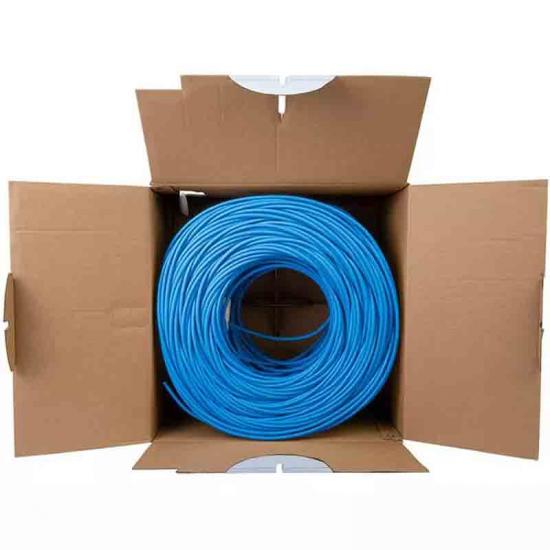

 Packing Type

 305 meters per box, 2 boxes has been loaded into one carton box.


Electrical Characteristics

Frequency

(MHZ)

Impendance

(ohm)

Return Loss

(dB)

Attenuation

(dB/100m)

NEXT Power Pair

(dB)

ACR

(dB)

Next Power Sum

(dB)

ELFEXT Worst Pair

(dB/100m)

ELEXT Power Sum

(dB/100m)

Nominal

Velocity

Propagation

0.772

100 ± 15

19.4

1.8

76.0

74.0

74.0

70.0

67.0

0.65

1.0

100 ± 15

20.0

2.0

74.3

72.0

72.3

67.8

64.8

4.0

100 ± 15

23.0

3.8

65.5

61.0

63.3

55.8

52.8

8.0

100 ± 15

24.5

5.3

60.8

55.0

58.8

49.7

46.7

10.0

100 ± 15

25.0

6.0

59.3

53.0

57.3

47.8

44.8

16.0

100 ± 15

25.0

7.6

56.2

49.0

54.2

43.7

40.7

20.0

100 ± 15

25.0

8.5

54.8

46.0

52.8

41.8

38.8

25.0

100 ± 15

24.3

9.5

53.3

44.0

51.3

39.8

36.8

31.25

100 ± 15

23.6

10.7

51.9

41.0

49.9

37.9

34.9

62.5

100 ± 15

21.5

15.4

47.4

32.0

45.4

31.9

28.9

100.0

100 ± 15

20.1

19.8

44.3

24.5

42.3

27.8

24.8

200.0

100 ± 22

18.0

29.0

39.8

10.8

37.8

21.8

18.8

250.0

100 ± 22

17.3

32.8

38.3

5.5

36.3

19.8

16.8
