Brand:
SeebestItem NO.:
Seebest-EX-076Order(MOQ):
5000Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:

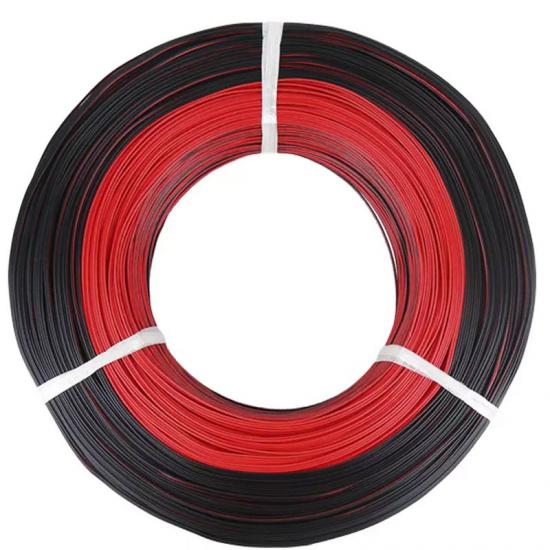

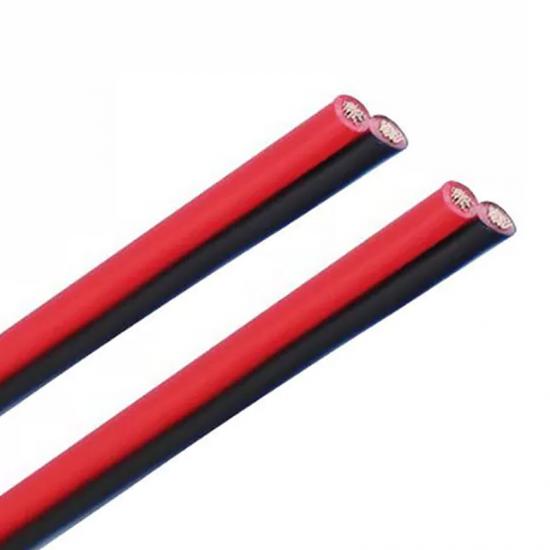

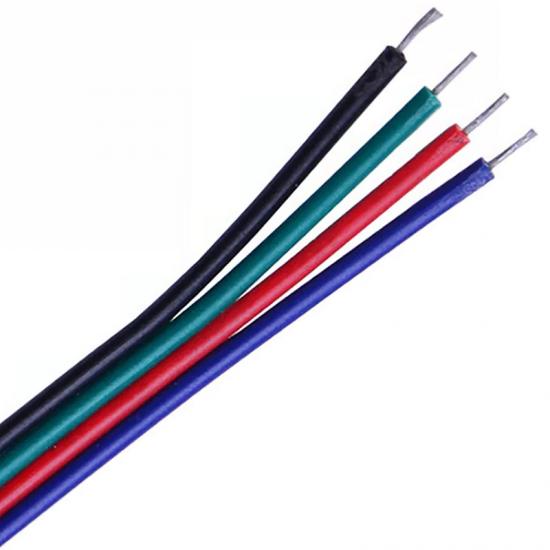

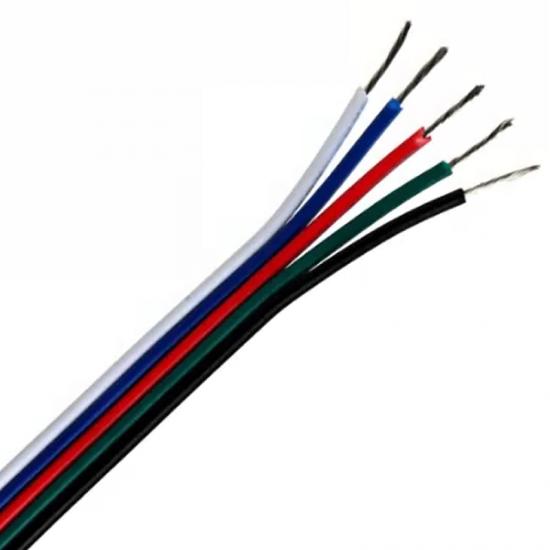

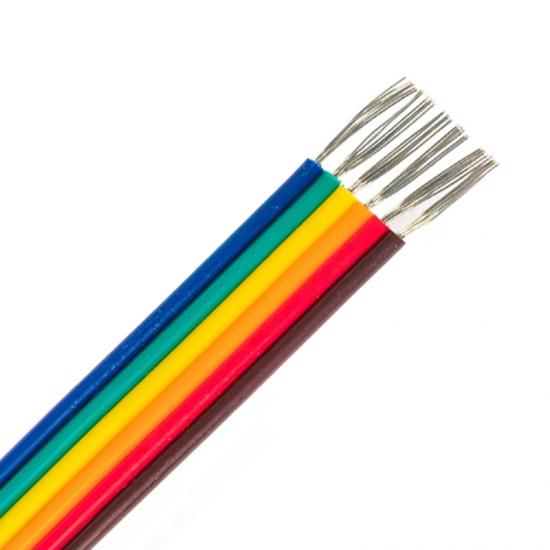

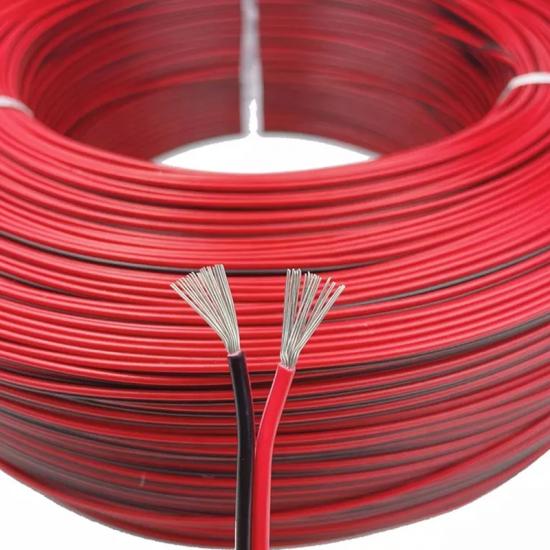

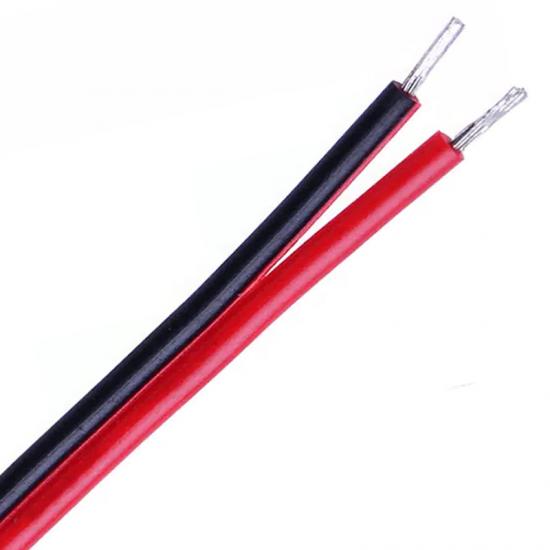

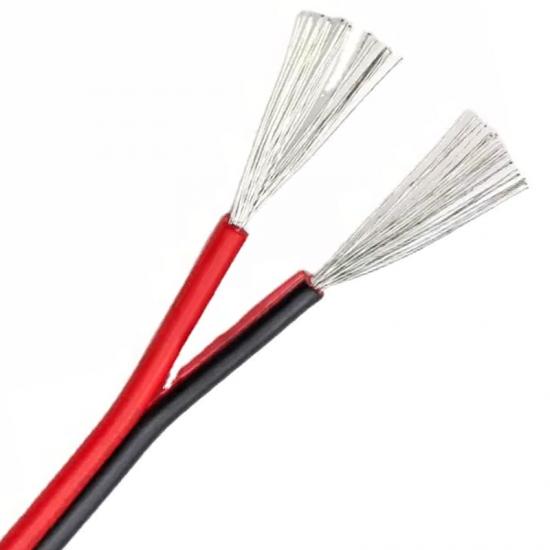

Within 3-7 working days as soon as we received the deposit.UL2468 Copper Conductor Flat Ribbon Wire And Cable
PRODUCTS FEATURES
PRODUCTS APPLICATION
UL2468 cable, its common nominal is AWG (American Wire Gauge) as the unit, the internal conductor should be divided into two kinds of bare copper and tinned copper according to the normal standard. It is widely used in digital cameras, instruments, chargers, audio, medical equipment, toys, household appliances and circuit boards and other fields.
PRODUCTS STRUCTURE

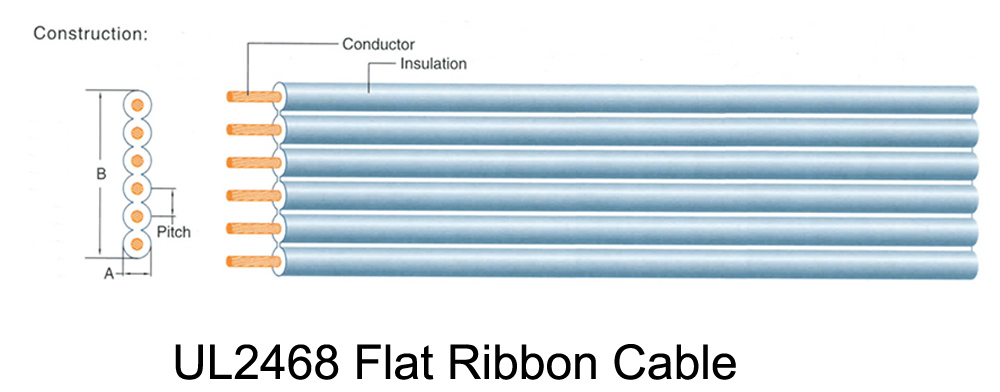

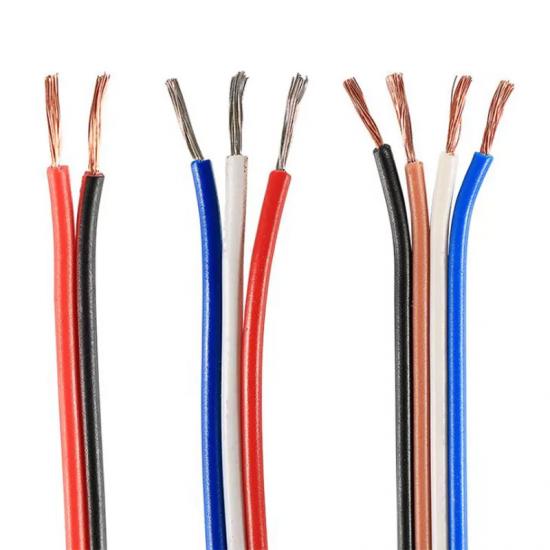

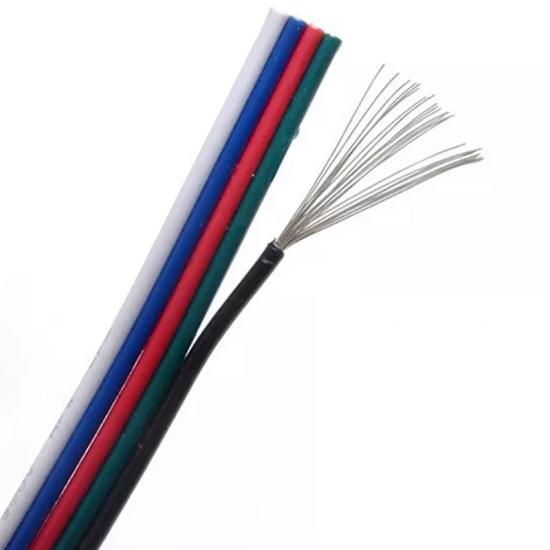

UL2468 Flat Ribbon Cable structure as below:
---Conductor Material
Plain annealed copper wire; bare copper or tinned copper.
---Insulation Material
PVC(polyvinyl chloride).
---Sheath Material
Non-Sheath.
PRODUCTS SPECIFICATION
|
Type |
Conductor |
Insulation |
Max. Cond. Resistance at 20°C
(Ω/km)
|
|||||
|
No. of Cores |
AWG |
Pitch
(mm)
|
Construction
(pcs/mm)
|
Diameter
(mm)
|
Thickness
(mm)
|
Overall Diameter
(mm)
|
||
|
UL2468 |
2 |
28 |
1.25 |
7/0.127 |
0.38 |
0.44 |
1.25x2.50 |
239 |
|
2 |
26 |
1.50 |
7/0.16 |
0.48 |
0.44 |
1.35x2.85 |
150 |
|
|
2 |
24 |
2.00 |
7/0.20 |
0.60 |
0.43 |
1.45x3.45 |
94.2 |
|
|
2 |
22 |
1.80 |
17/0.16 |
0.76 |
0.47 |
1.70x3.50 |
59.4 |
|
|
2 |
20 |
1.90 |
26/0.16 |
0.94 |
0.43 |
1.80X3.70 |
36.7 |
|
|
2 |
18 |
2.10 |
41/0.16 |
1.18 |
0.46 |
2.10x4.30 |
23.2 |
|
|
3 |
28 |
1.25 |
7/0.127 |
0.38 |
0.44 |
1.25x3.75 |
239 |
|
|
3 |
26 |
1.50 |
7/0.16 |
0.48 |
0.44 |
1.35x4.35 |
150 |
|
|
3 |
24 |
2.00 |
7/0.20 |
0.60 |
0.43 |
1.45X5.45 |
94.2 |
|
|
3 |
22 |
1.70 |
17/0.16 |
0.76 |
0.42 |
1.60x5.00 |
59.4 |
|
|
4 |
28 |
1.25 |
7/0.127 |
0.38 |
0.44 |
1.25x5.00 |
239 |
|
|
4 |
26 |
1.50 |
7/0.16 |
0.48 |
0.44 |
1.35x5.85 |
150 |
|
|
4 |
24 |
2.00 |
7/0.20 |
0.60 |
0.43 |
1.45X7.45 |
94.2 |
|
|
4 |
22 |
1.70 |
17/0.16 |
0.76 |
0.42 |
1.60x6.70 |
59.4 |
|
|
5 |
28 |
1.25 |
7/0.127 |
0.38 |
0.44 |
1.25x6.25 |
239 |
|
|
5 |
26 |
1.50 |
7/0.16 |
0.48 |
0.44 |
1.35x7.35 |
150 |
|
|
5 |
24 |
2.00 |
7/0.20 |
0.60 |
0.43 |
1.45x9.45 |
94.2 |
|
|
5 |
22 |
1.70 |
17/0.16 |
0.76 |
0.42 |
1.60x8.40 |
59.4 |
|
|
6 |
28 |
1.25 |
7/0.127 |
0.38 |
0.44 |
1.25x7.50 |
239 |
|
|
6 |
26 |
1.50 |
7/0.16 |
0.48 |
0.44 |
1.35x8.85 |
150 |
|
|
6 |
24 |
2.00 |
7/0.20 |
0.60 |
0.43 |
1.45X11.45 |
94.2 |
|
|
6 |
22 |
1.70 |
17/0.16 |
0.76 |
0.42 |
1.60x10.10 |
59.4 |
|
|
7 |
28 |
1.25 |
7/0.127 |
0.38 |
0.44 |
1.25x8.75 |
239 |
|
|
7 |
26 |
1.50 |
7/0.16 |
0.48 |
0.44 |
1.35x10.35 |
150 |
|
|
7 |
24 |
2.00 |
7/0.20 |
0.60 |
0.43 |
1.45x13.45 |
94.2 |
|
|
7 |
22 |
1.70 |
17/0.16 |
0.76 |
0.42 |
1.60x11.80 |
59.4 |
|
|
8 |
28 |
1.25 |
7/0.127 |
0.38 |
0.44 |
1.25x10.00 |
239 |
|
|
8 |
26 |
1.50 |
7/0.16 |
0.48 |
0.44 |
1.35x11.85 |
150 |
|
|
8 |
24 |
2.00 |
7/0.20 |
0.60 |
0.43 |
1.45x15.45 |
94.2 |
|
|
8 |
22 |
1.70 |
17/0.16 |
0.76 |
0.42 |
1.60x15.20 |
59.4 |
|
