American UL Power Cord
Home /

AC Power Cords

/

American UL Power Cord

/

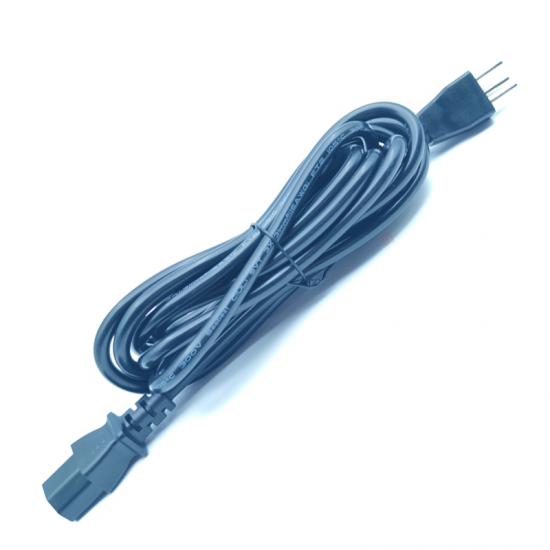

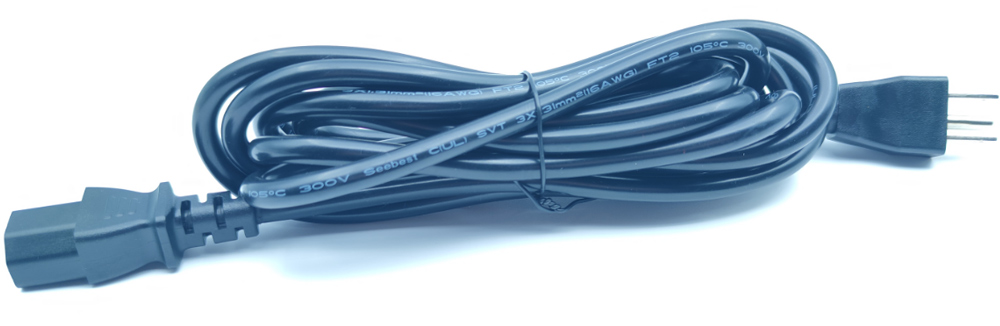

American UL AC Power Cord NEMA 5-15P Plug to IEC 60320 C13 Connector

American UL Power Cords
American UL Power Cords
American UL Power Cords
American UL Power Cords
American UL Power Cords
American UL Power Cords

American UL AC Power Cord NEMA 5-15P Plug to IEC 60320 C13 Connector

Plug is America NEMA 5-15P plug, maximum electric current rating is 15A, maximum voltage is 125V, C13 Connector Standards is IEC 60320.

  • Brand:

    Seebest
  • Item NO.:

    Seebest-EX-079
  • Order(MOQ):

    3000
  • Payment:

    T/T, L/C, Cash.
  • Product Origin:

    Xiamen City, China.
  • Color:

    Black or Customized according to client's requirements.
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    15-30 working days as soon as we received the deposit.

American UL AC Power Cord NEMA 5-15P Plug to IEC 60320 C13 Connector



PRODUCTS FEATURES

America UL Power Cord

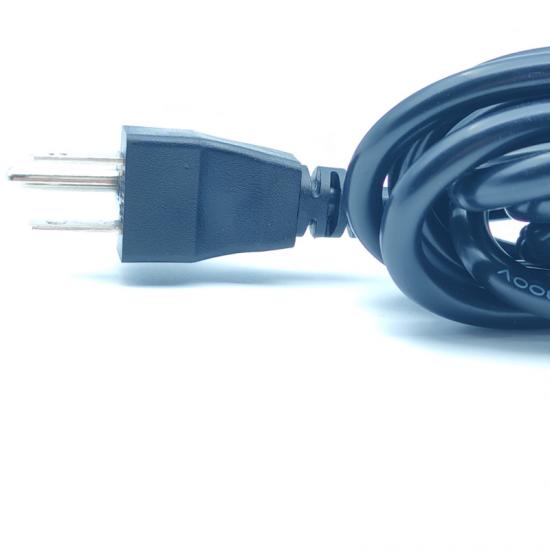

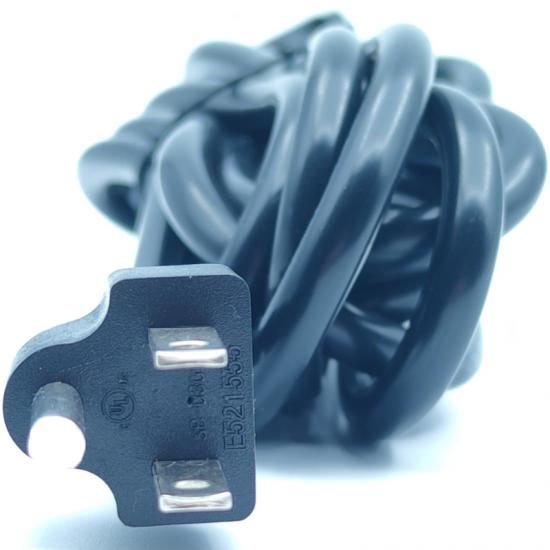

  • Plug type: NEMA 5-15P Plug
  • Standard: UL817
  • Approvals: UL
  • Electricity: 10A/13A/15A, 125V
  • Number of Poles and Wires: 3 Poles 3 Wires
  • Cable length: 1.0m, 1.5m, 1.8m, 2m, 3m or custom length

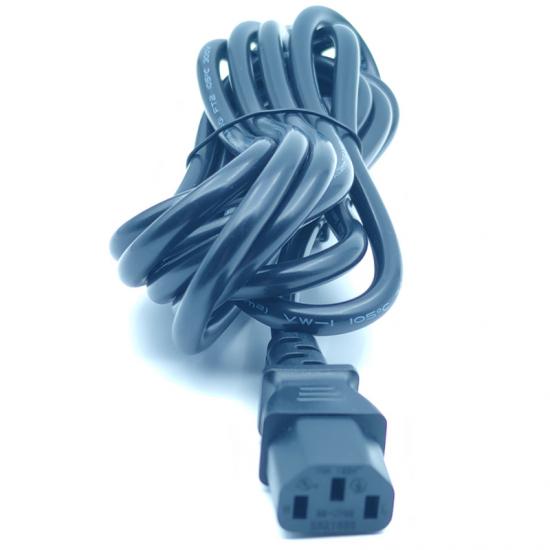

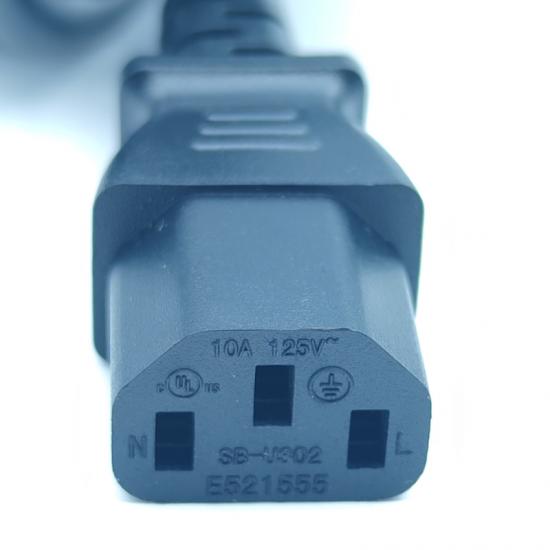

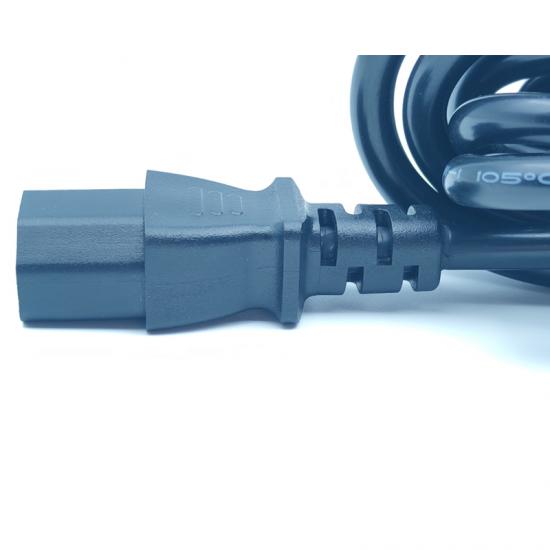

  • End: IEC 60320 C13
  • Color: Black is standard or custom color
  • Outer Mold Material: PVC
  • Plug Insert Material: PBT, ABS
  • Blade Material: Nickel Coated Brass
  • Wire Sheath Material: PVC
  • Environmental Certifications: RoHS, REACH


PRODUCTS APPLICATION

NEMA 5-15P are three prong male plugs used in most households and businesses in North America to supply power to devices. These plugs are rated at 15 amps on a 14-18AWG cord and up to 125V AC. The AC power cord is mainly used in desktop PCs, monitors, printers, scanners and other devices that use the 3 pin shroud power connector.

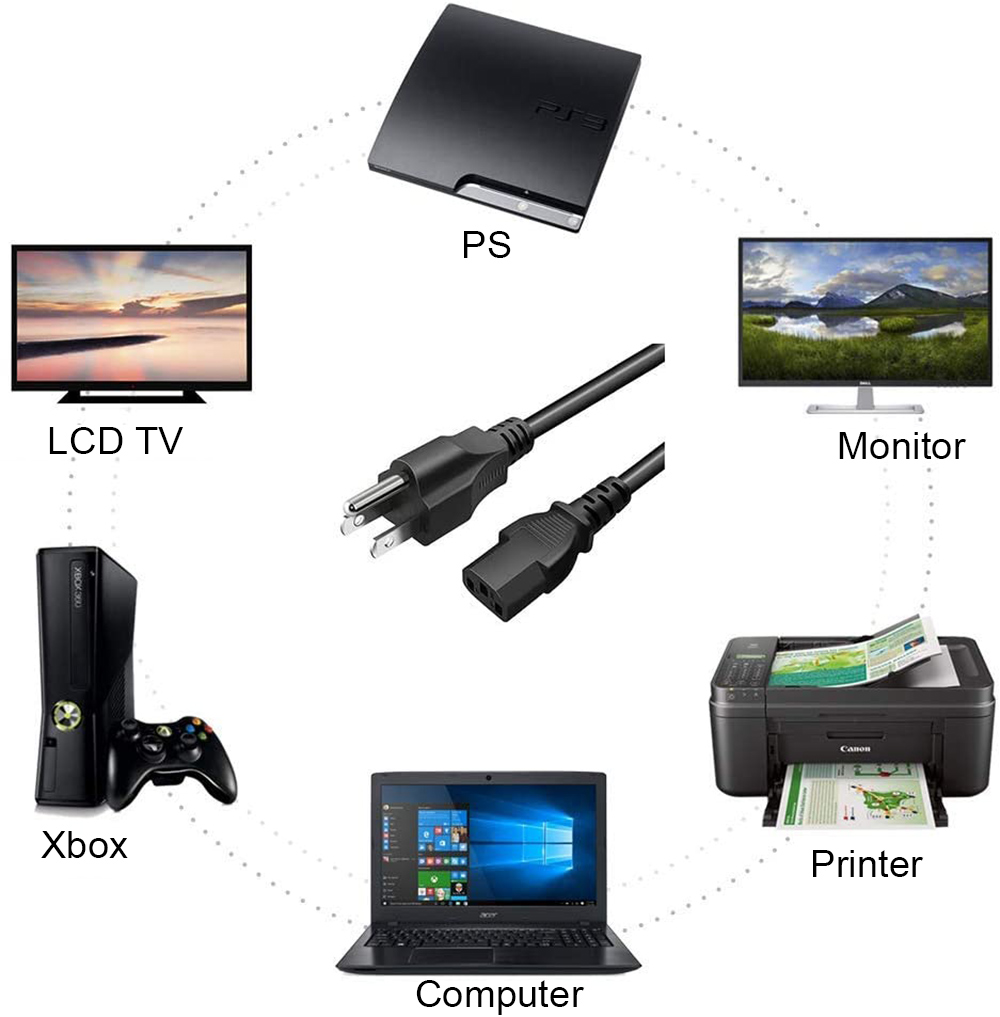

AC power cord application


PRODUCTS SPECIFICATION

Plug:

NEMA 5-15P

Approval:

UL

Rated Voltage:

125V

Rated Current:

10A/13A/15A

Number of Poles and Wires:

3 Poles 3 Wires

Cable End Termination:

C13

Outer Mold Material:

PVC

Plug Insert Material:

PBT, ABS

Blade Material:

Nickel coated brass

Conductor:

Stranded bare copper or tinned copper

Cable Insulation Material:

PVC

Cable Sheath Material:

PVC

Cable Length:

1.0m, 1.5m, 1.8m, 2m, 3m or custom length is available

Color:

Black is standard and custom color is available

Environment Protection:

RoHS, REACH


Suitable Cable Type

Cord AWG

Cord Type

Rated Current/Voltage

18AWG

SVT, SPT-1, SPT-2, SJT, SJTW

10A/125V

16AWG

SJT, SJTW, SVT, SPT-2

13A/125V

14AWG

SJT, SJTW

15A/125V
