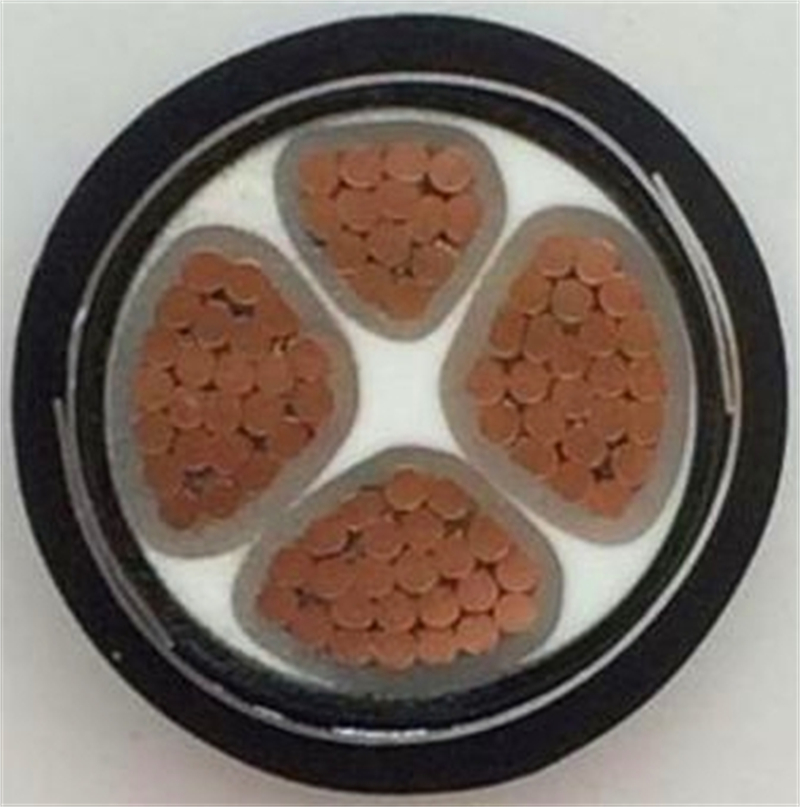

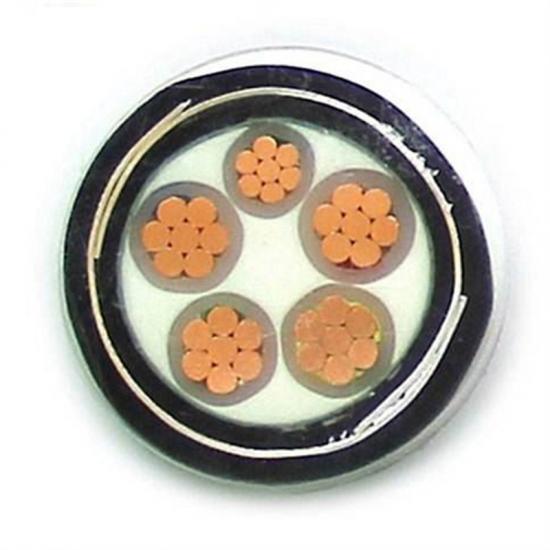

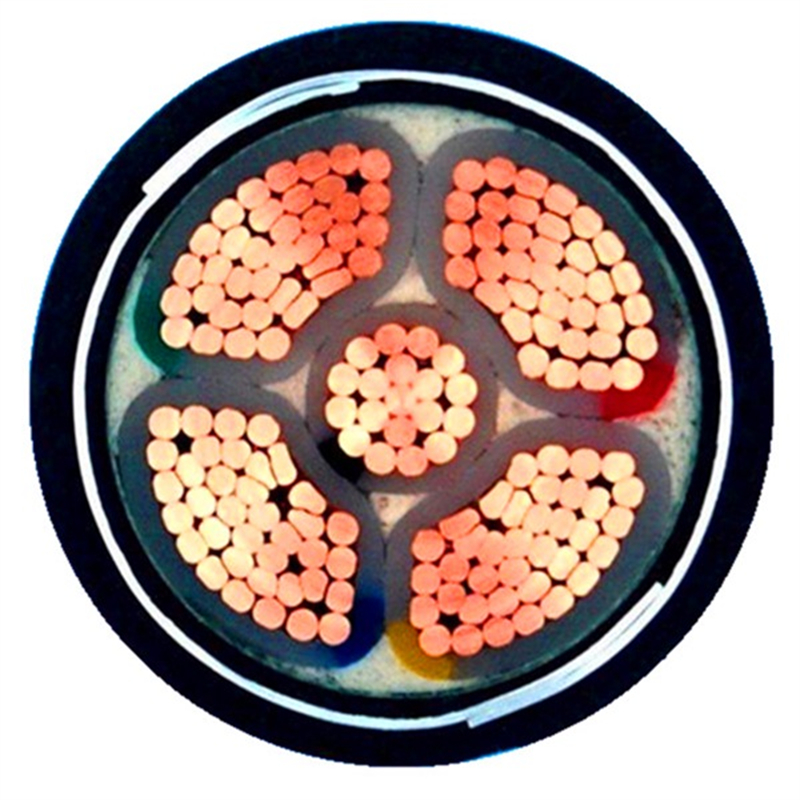

YJV22 Copper Wire XLPE Insulated STA Armoured PVC Sheath Power Cables. The structurer is CU/XLPE/PVC/STA/PVC, includes the Copper Wire Condutor, XLPE Insulation, PVC Inner Sheath, Steel Tape Armoured, PVC Out Sheath. STA armoured cable is a steel tape armored cable. It is a kind of armored cable. It is usually used for transmission lines below 35KV. The steel tape armored cable has a metal armor layer in the cable sheath, which is mainly used to prevent the cable is damaged by external squeezing.
Brand:
SeebestItem NO.:
Seebest-EX-047Order(MOQ):
500Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 10-15 working days as soon as we received the deposit.YJV22 Copper Wire XLPE Insulated STA Armoured PVC Sheath Power Cables
PRODUCTS NAME
YJV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables.
PRODUCTS KEYWORDS
YJV22, N2XBY, STA Armoured, cu/xlpe/pvc/sta/pvc, steel tape armoured power cable, copper wire power cable, xlpe insulated cable, electric cable, wire and cables.
PRODUCTS APPLICATION
YJV22 Copper Wire XLPE Insulated STA Armoured PVC Sheath Power Cables, power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.

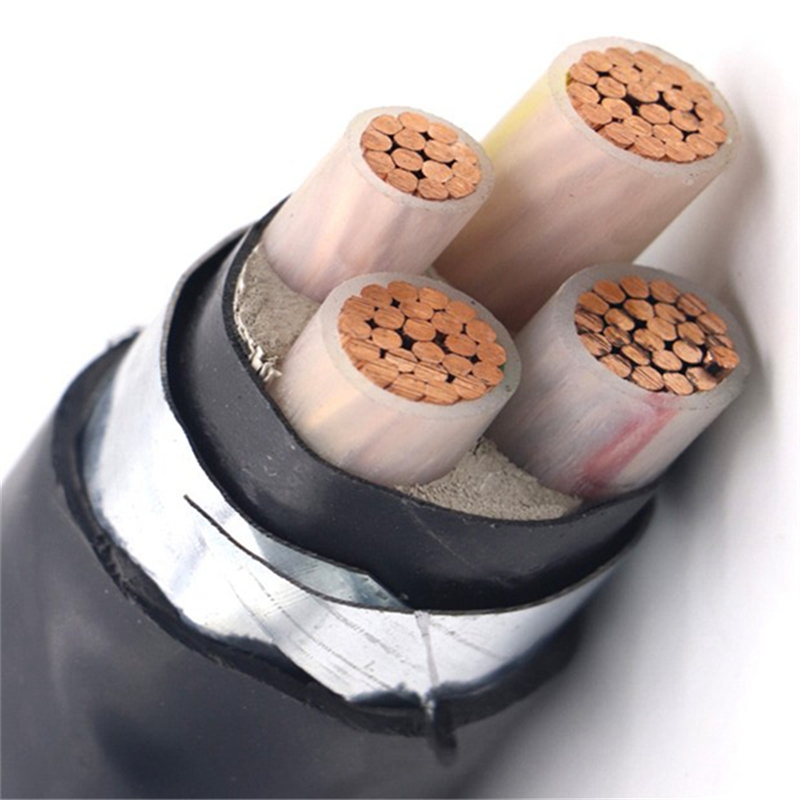

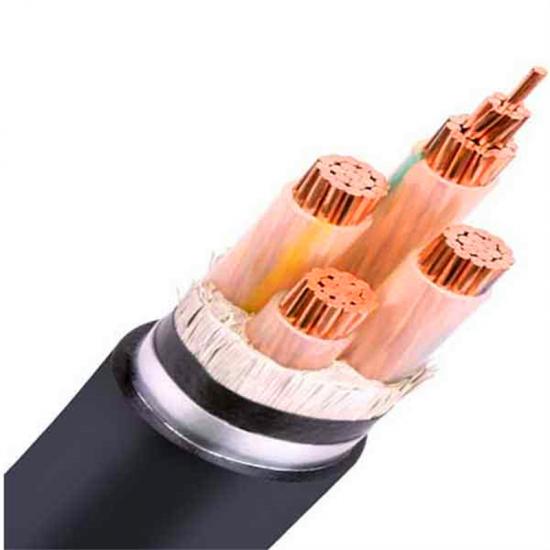

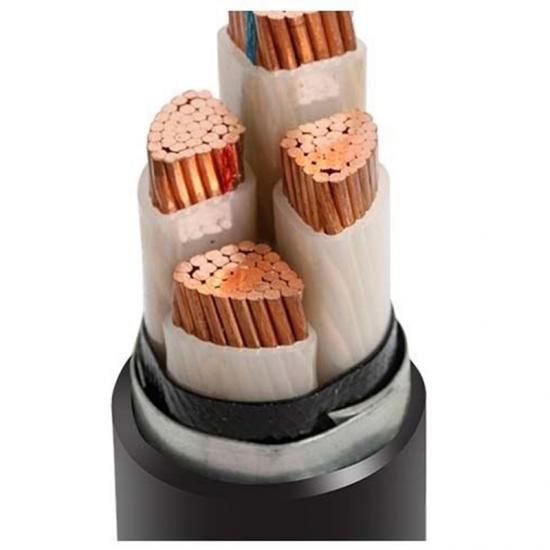

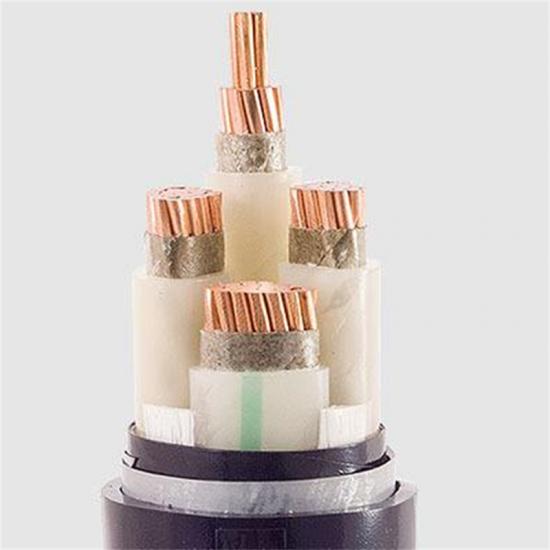

PRODUCTS STRUCTURE
YJV22 Copper Wire XLPE Insulated STA Armoured PVC Sheath Power Cables,
the structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1, or stranded Class 2.
---Insulation Material
XLPE (corss-linked polyethylene).
---Inner Sheath Material
PVC (polyvinyl chloride).
---Armoured Material
Galvanized steel tape armoured, double layers, 100% coverage.
---Out Sheath Material
PVC (polyvinyl chloride).
a
PRODUCTS DIMENSIONS
| Description of Cable | Products Main Technical Sheet |
| Products Name |
YJV22 Copper Wire XLPE Insulated STA Armoured PVC Sheath Power Cables. |
| Conductor Material | Plain annealed copper wires, stranded Class 2. |
| Conductor Structure | 3C x 7/2.14 mm. |
| Insulation Material | XLPE (corss-linked polyethylene). |
| Insulation Thickness | 1.2 mm. |
| Insulation Colour | Brown, blue, yellow/green; or others. |
| Inner Sheath Material | PVC (Polyvinyl Chloride). |
| Inner Sheath Thickness | 1.0 mm. |
| Inner Sheath Colour | Black. |
| Armoured Material | Galvanized steel tape, double layers. |
|
Out Sheath Material |
PVC (Polyvinyl Chloride). |
| Out Sheath Thickness | 1.8 mm. |
| Out Sheath Colour | Black, red, orange, or others. |
| Conductor Cross-section | 3 x 25 mm2. |
| Core Number | Three cores, 3 cores, 3C. |
| Out Diameter | 17.7 mm. |
| Voltage Rate | 600/1000V, 0.6/1kV (U0/U). |
| About Net Weight | 1166 kg/km. |
| Production Standard |
GB/T 12706-2020, IEC 60502. |
|
Max. Conductor DC Resistance at 20℃ in Air |
0.727 Ω/km. |
|
Min. Insulated Resistance at 70℃ |
0.009 MΩ.km. |
|
Max. Ampacity at 25℃ in Underground |
110A. |
