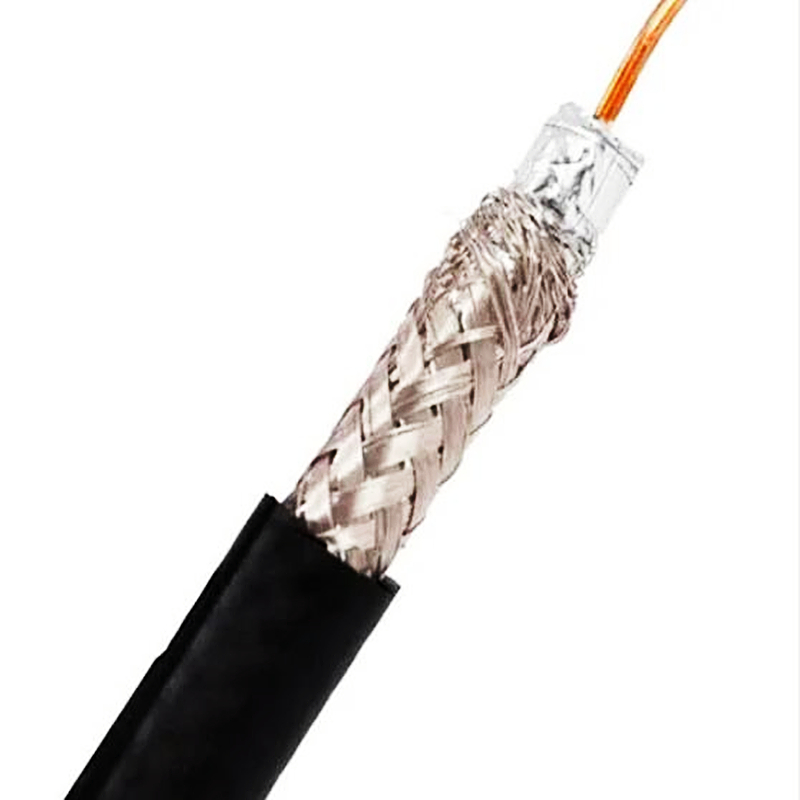

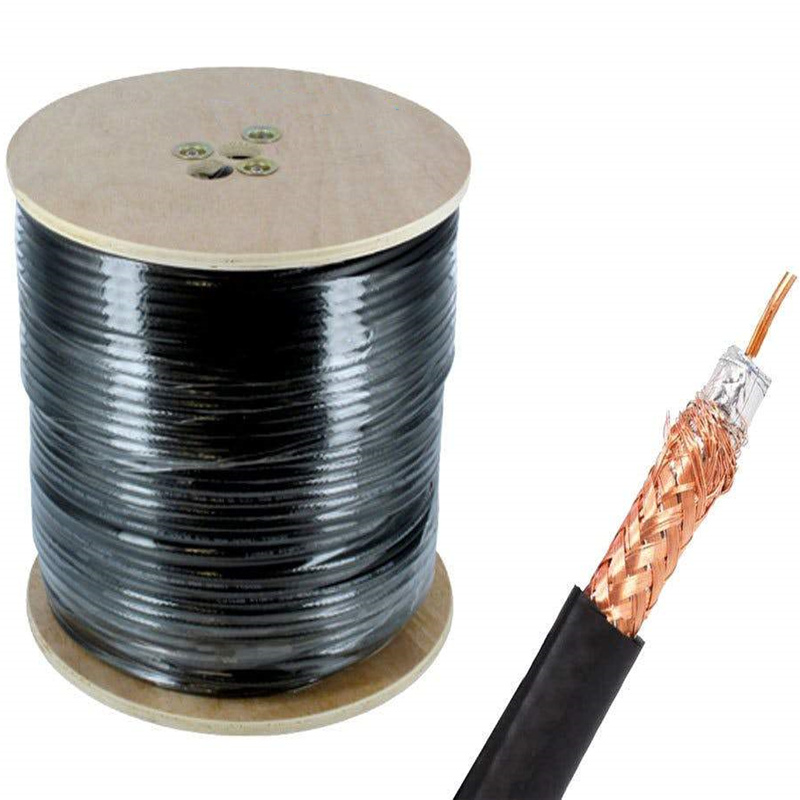

Professional Factory RG 59 20AWG Signal Coaxial Cable, 75 Ohm SDI Coaxial Cable, RG-59, 20AWG Solid Bare Copper Conductor, Foamed HDPE Insulation, Aluminum Foil Screened, Tinned Copper or Bare Copper Braid Shield, PVC Sheath/Jacket, CMR flame retardant. Coaxial cable, or coax is a type of r conductor surrounded by a concentric conducting shield, with the two separated by a dielectric; many coaxial cables also have a protective outer sheath or jacket. The term coaxial refers to the inner conductor and the outer shield sharing a geometric axis.
Brand:
SeebestItem NO.:
Seebest-EX-041Order(MOQ):
5000Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
White, or black.Shipping Port:
Xiamen port, China.Lead Time:
Within 7-10 working days as soon as we received the deposit.Professional Factory RG 59 20AWG Signal Coaxial Cable
PRODUCTS NAME
Professional Factory RG 59 20AWG Signal Coaxial Cable.
PRODUCTS KEYWORDS
Coaxial Cable, SYWV75-5, RG 6, RG 11, RG 59, CCTV cable, CATV cable, CT coaxial cable, Cable Television Connect Cable, video signal, professional factory.
PRODUCTS APPLICATION
Professional Factory RG 59 20AWG Signal Coaxial Cable. RG6, RG11, RG58, RG59, RG179, RG213 cables for high quality RG Type Coaxial cables, 75 Ohm is suitable for many applications, including low power video, video signal, and broadband signals.
PRODUCTS FEATURES
Professional Factory RG 59 20AWG Signal Coaxial Cable, can be divided into 2 kind of types, baseband coaxial cable and broadband coaxial cable. The coaxial cable has the follow features:
3. The product has passed the UL 444 certification and has excellent quality.
PRODUCTS RELATIVE-MERITS
Professional Factory RG 59 20AWG Signal Coaxial Cable, advantages of coaxial cable: it can support high bandwidth communication on a relatively long line without repeater. However, their disadvantages are also obvious: first, they are large in size, and the diameter of the thin cable is 1.02mm, which requires a lot of space in the cable duct; Second, it can not bear entanglement, pressure and severe bending, which will damage the cable structure and prevent signal transmission; Finally, the cost is high, and all these disadvantages can be overcome by conventional network lines. Therefore, in the current LAN environment, many places can use network cable instead of coaxial cable.
PRODUCTS STRUCTURER
Professional Factory RG 59 20AWG Signal Coaxial Cable
1.Conductor Material: Plain annealed copper wire, solid Class 1, 20AWG.
2. Insulated Material: Foamed HDPE (polyethylene).
3. Shielded Material: Aluminum Foil Tape
4. Braided Material: Bare copper wire, or tinned copper wire.
5. Sheath Material: PVC or LSZH.
PRODUCTS DIMENSIONS
| Item No. | Description of Products |
| Products Name |
Professional Factory RG 59 20AWG Signal Coaxial Cable. |
| Conductor Material | Plain annealed copper wires, Class 1. |
| Conductor Structure | 1C x 1/0.81 mm, 20AWG, 0.064". |
| Insulation Material | Foamed PE (Polyethylene). |
| Insulation Thickness | 3.66 mm, 0.144". |
| Insulation Colour |
white. |
| Shielded Material | Aluminum Foil Tape, 100% coverage, overlap >2mm. |
| Braided Material | Bare or tinned Copper Wire; coverage: >60%; 64x0.10mm. |
| Sheath Material | PVC (Polyvinyl Chloride). |
| Sheath Thickness | 0.76 mm, 0.03". |
| Sheath Colour | White, or black. |
| Core Number | Single core, 1 core, 1C. |
| Out Diameter | 6.1 mm, 0.305". |
| About Net Weight | 28 kg/km. |
| Production Standard | GY/T 135-1998, IEC 60096-0-1-2012, EN 50117-1, ANSI/SCTE 74. |
| Packing Type |
100 Meters per roll, the rolls will be loaded on Wooden Pallet; the wooden pallet must be showed the IPPC logo. |
COMPANY PROFILE
WirCablesPro, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.
COMPANY ADVANTAGE
---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.
COMPANY PRODUCTS
---Electrical Wires: PVC or LSZH Insulated Electrical Wires.
---Power Cables: 0.6/1kV, PVC, XLPE, or LSZH Insulated Power Cables.
---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282,
VDE 0250, and other Electronic Wires.
---Customized Products: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Power
Cables, LSZH, LSOH, LSFH and other RoHs Cables, and Environmental Protection Cables.
---Communication Cables: Networking Cables, Telephone Cables, Coaxial Cables, Speaker Cables.
---Power Plugs: CCC, UL, VDE, and other standards Power Plugs.
COMPANY SLOGAN
---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,
Technology Supporter, and Sales Assistant in Wire and Cables Industry.
COMPANY FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.
2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.
3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm2, the MOQ is 5,000 meters;
For the Power Cables more than 25mm2, the MOQ is 1,000 meters;
For the networking cables, the MOQ is 100 boxes/cartons;
For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.
For other customized wire and cables, please negotiate the MOQ with us immediately.
4. Can you give me the price discount?
We can give you the price discount, but the discount percent depends on the quantity, quality, packaging and payment terms in your order.
In addition, price is an important factor, but it should not the decisive factor; the price can be lower, but we must keep the safe bottom-line. The high-quality products can help you saving more money, and there is not potential safety hazard, you don't worry about them every day.
5. Can you provide the OEM, OBM and ODM services?Yes, we can provide OEM, OBM and ODM services for you, but you should provide the Power of Attorney for Trademark and other detailed information to us.

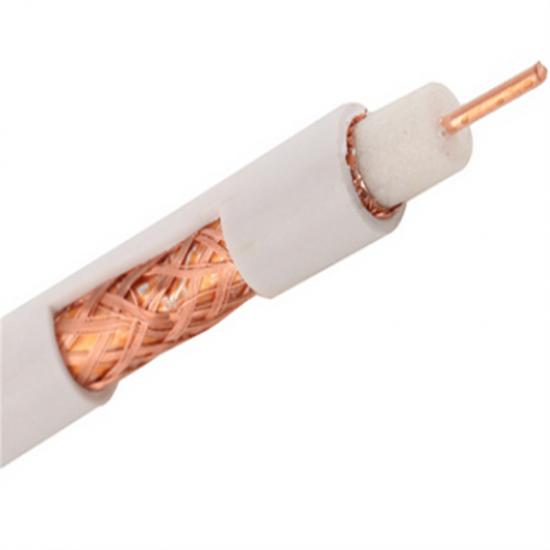

High Quality RG 6 CATV 18AWG Coaxial Cable, 75 Ohm SDI Coaxial Cable, RG-6, 18 AWG Solid Bare Copper Conductor, Foamed HDPE Insulation, Aluminum Foil Screened, Tinned Copper or Bare Copper Braid Shield, PVC Sheath/Jacket, CMR flame retardant. Coaxial cable, or coax is a type of r conductor surrounded by a concentric conducting shield, with the two separated by a dielectric; many coaxial cables also have a protective outer sheath or jacket. The term coaxial refers to the inner conductor and the outer shield sharing a geometric axis.
Learn More

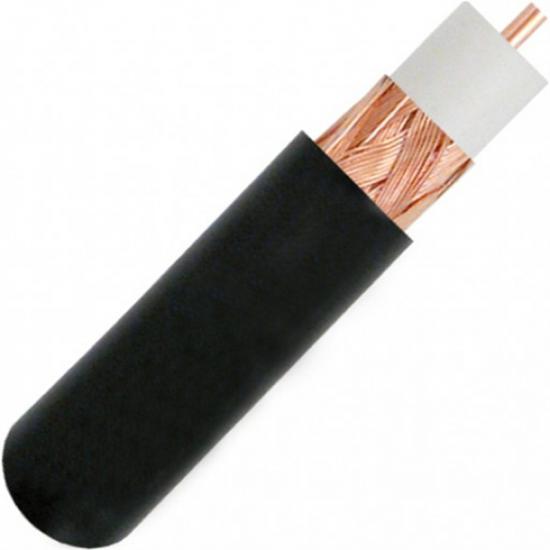

High Quality Factory SYWV75-5 Coaxial Cable. Coaxial cable is a kind of electric wire and signal transmission line, which is generally made of four layers of materials: the innermost part is a conductive copper wire, the outer part of the line is surrounded by a layer of plastic (used for insulator and dielectric), and the outer part of the insulator is a thin mesh conductor (generally copper or alloy), and the outer part of the conductor is the outermost insulating material as the outer skin.
Learn More

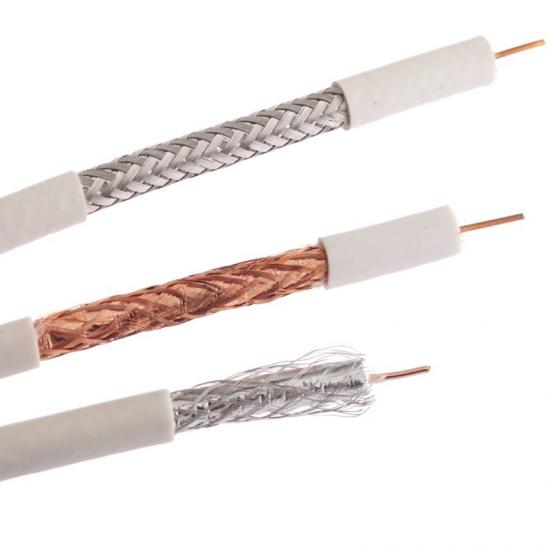

Chinese Factory Good Quality RG 11 CCTV 14AWG Coaxial Cable, 75 Ohm SDI Coaxial Cable, RG-11, 14AWG Solid Bare Copper Conductor, Foamed HDPE Insulation, Aluminum Foil Screened, Tinned Copper or Bare Copper Braid Shield, PVC Sheath/Jacket, CMR flame retardant. Coaxial cable, or coax is a type of r conductor surrounded by a concentric conducting shield, with the two separated by a dielectric; many coaxial cables also have a protective outer sheath or jacket. The term coaxial refers to the inner conductor and the outer shield sharing a geometric axis.
