BS5467 YJV32 XLPE Insulated SWA Armoured ​Power Cable

YJV32 power cable
YJV32 power cable
YJV32 power cable
YJV32 power cable
YJV32 power cable

BS5467 YJV32 XLPE Insulated SWA Armoured ​Power Cable

BS5467 YJV32 XLPE Insulated SWA  Armoured Power Cable. Multi-core copper conductor XLPE insulated PVC sheath power cable with steel wire armour (SWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

  • Brand:

    Seebest
  • Item NO.:

    Seebest-EX-048
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Cash.
  • Product Origin:

    Xiamen City, China.
  • Color:

    Black, Orange, and others.
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    Within 15-20 days as soon as we received the deposit.

BS5467 YJV32 XLPE Insulated SWA  Armoured Power Cable



PRODUCTS NAME

BS5467 YJV32 XLPE Insulated SWA  Armoured Power Cable.

PRODUCTS KEYWORDS

BS 5467, SWA, YJV32, SWA Armoured, cu/xlpe/pvc/swa/pvc, power cable, copper wire, xlpe insulated cable, electric cable, wire and cables.

PRODUCTS APPLICATION

BS5467 YJV32 XLPE Insulated SWA  Armoured Power Cable, these power and control cables are used for electricity supply in low vMulti-core PVC cable with steel wire armour (SWA). Power and auxiliary fixed wiring cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

Seebest Cable

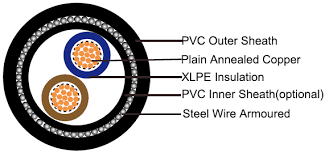

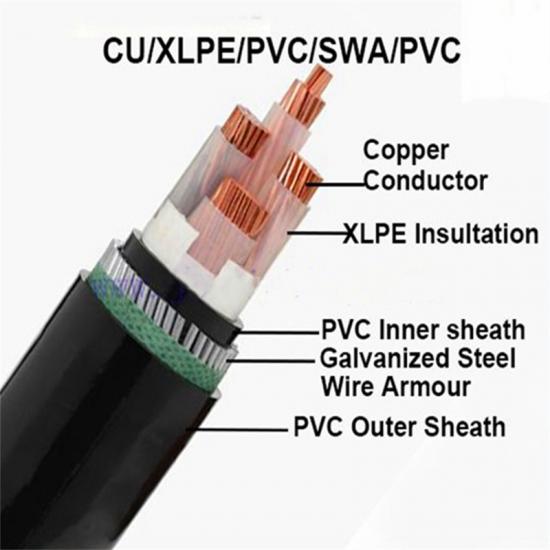

PRODUCTS STRUCTURE

    BS5467 YJV32 XLPE Insulated SWA  Armoured Power Cable, the structure as below:

---Conductor Material

     Plain annealed copper wire, solid Class 1, or stranded Class 2.

---Insulation Material

     XLPE (polyvinyl chloride).


---Inner Sheath Material

     PVC (polyvinyl chloride).


---Armoured Material

     SWA (Steel Wire Armoured).

---Out Sheath Material

     PVC (polyvinyl chloride).

aSeebest Cable

PRODUCTS DIMENSIONS

 Description of Cable   Products Main Technical Sheet
 Products Name

 BS5467 YJV32 XLPE Insulated SWA  Armoured Power Cable.

 Conductor Material  Plain annealed copper wires, stranded Class 2.
 Conductor Structure  3C x 19/2.14 mm.
 Insulation Material  XLPE (cross-linked polyethylene).
 Insulation Thickness  1.4 mm.
 Insulation Colour  Brown, blue, yellow/green; or others.
 Inner Sheath Material  PVC (Polyvinyl Chloride).
 Inner Sheath Thickness  1.2 mm.
 Inner Sheath Colour  Black.
 Armoured Material  SWA (Steel Wire Armoured).
 Armoured Wire Diameter  2.0 mm.
 Out Sheath Material  PVC (Polyvinyl Chloride).
 Out Sheath Thickness  2.0 mm.
 Out Sheath Colour  Black, orange, or others.
 Conductor Cross-section  3 x 70 mm2.
 Core Number  Three cores, 3 cores, 3C.
 Out Diameter  35.0 mm.
 Voltage Rate  600/1000V, 0.6/1kV (U0/U).
 About Net Weight  3518 kg/km.
 Production Standard

 GB/T 12706-2020, IEC 60502, BS 6346, VDE 0276.

 Max. Conductor DC

 Resistance at 20℃ in Air

 0.268 Ω/km.

 Max. Ampacity

 at 25℃ in Underground

 245A.
