AC Electric Car 3.5KW 16A Adjustable Portable EV Charger

Portable EV Charger
Portable EV Charger
Portable EV Charger
Portable EV Charger
Portable EV Charger
Portable EV Charger
Portable EV Charger

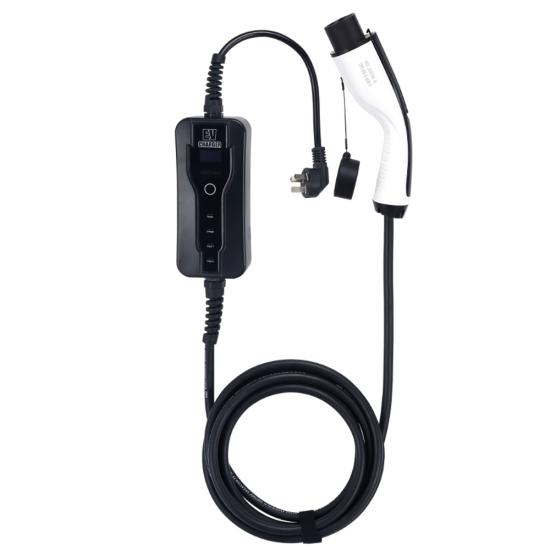

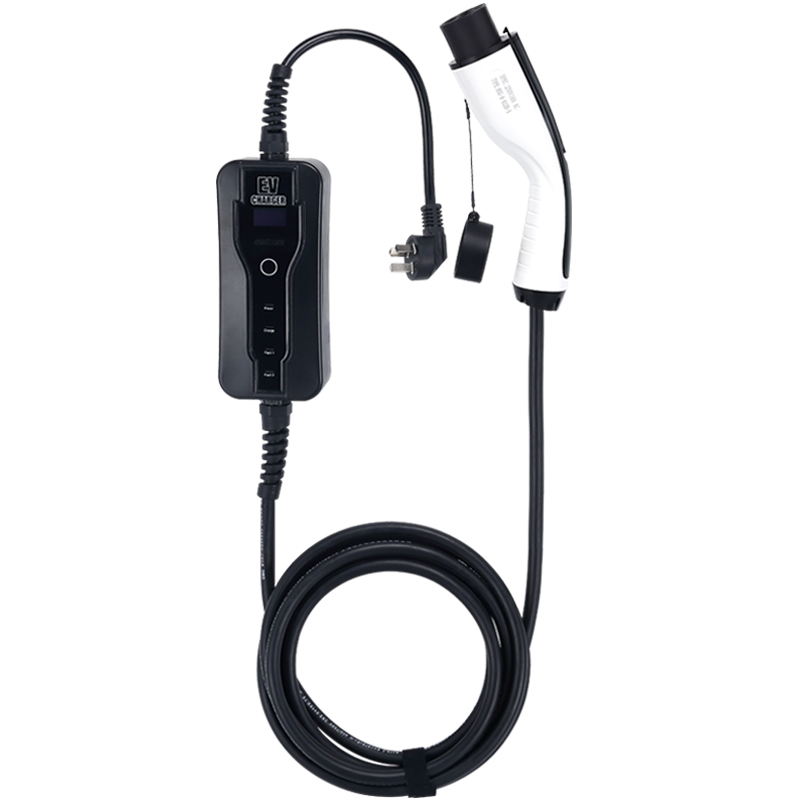

AC Electric Car 3.5KW 16A Adjustable Portable EV Charger

The portable EV charger is designed to make EV charging quick and effortless. Compact and durable for home use.

  • Brand:

    Seebest
  • Item NO.:

    Seebest-EX-080
  • Order(MOQ):

    10
  • Payment:

    T/T, L/C, Cash.
  • Product Origin:

    Xiamen City, China.
  • Color:

    Black or Customized according to client's requirements.
  • Shipping Port:

    Xiamen port, China.
  • Lead Time:

    15-30 working days as soon as we received the deposit.

AC Electric Car 3.5KW 16A Adjustable Portable EV Charger



PRODUCTS FEATURES

Portable EV Charger



  • Portable and compact design

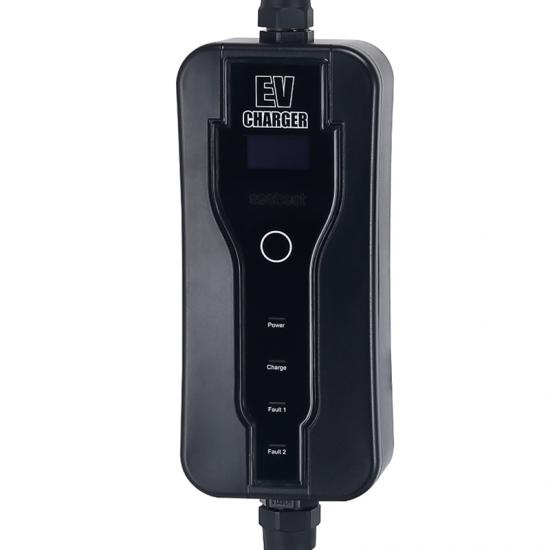

  • Friendly interface
  • Adjustable Current 8A-16A
  • Scheduled Charging
  • Full Protection
  • IP66 Enclosure for Indoor and Outdoor Use



PRODUCTS APPLICATION

Commercial EV Charging/Workplace EV Charging, Hotels EV Charging, Home/Residential EV Charging, Public EV charging


PRODUCTS SPECIFICATION

Model

EV-SB16A01

EV-SB16A02

EV-SB16A03

Version

GB Version

EU Version

US Version

Charging Capacity

3.5kW

3.5kW

3.5kW

Power Specification

Rated Voltage

200~240VAC / Single Phase

AC Input Connection

L/N/PE

L/N/PE

L1/L2/GND

Rated Current

8A/10A/13A/16A (Adjustable)

Frequency

50/60Hz

Output Power

3.5kW

3.5kW

3.5kW

Mechanical

Service Life

≥10000 times

≥10000 times

≥10000 times

Insertion Force

≤100N

≤100N

≤100N

Lock Retention Force

≥200N

≥200N

≥200N

Vehicle Rolling

2 tons of vehicle rolled back and forth more than 3 times

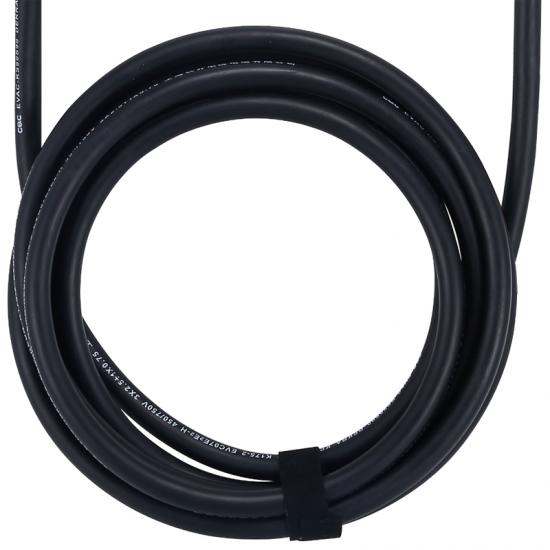

Cable Specification

3X2.5mm²+2X0.5mm²

3X2.5mm²+2X0.5mm²

3X14AWG+1X18AWG

Cable Length

5m or customizable

Environmental

Operating Temperature

-30℃~+50℃

-30℃~+50℃

-30℃~+50℃

Humidity

Max. 95% (Non-condensing)

Altitude

≤2000m

Protection Degree

IP55

IP55

IP55

Cooling Method

Natural Cooling

Safety

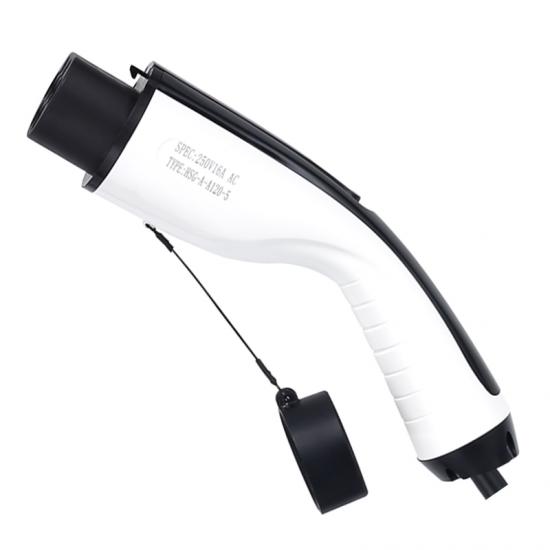

Charging Interface

GB/T 20234.2

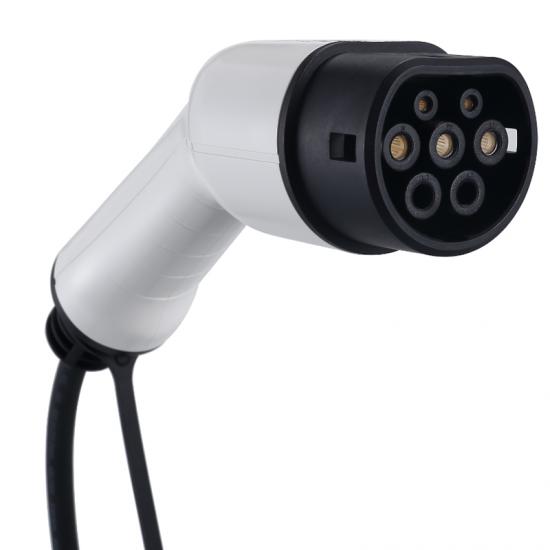

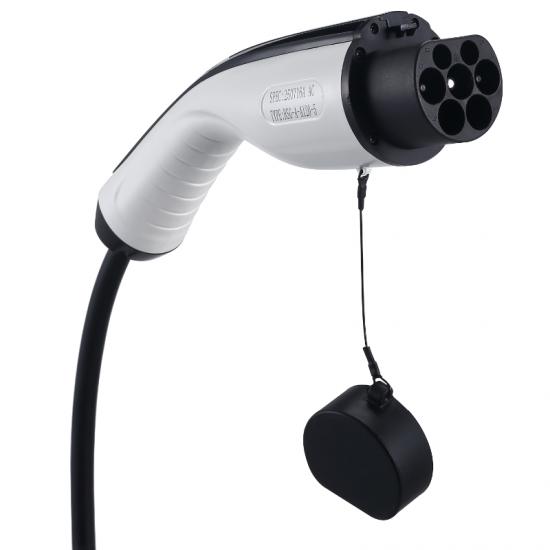

IEC 62196-2 Type 2 Plug

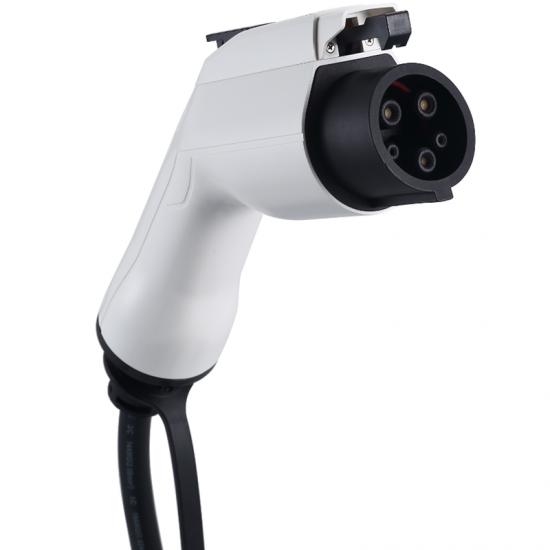

SAE J1772 Type 1 Plug

Warranty

12 Months
