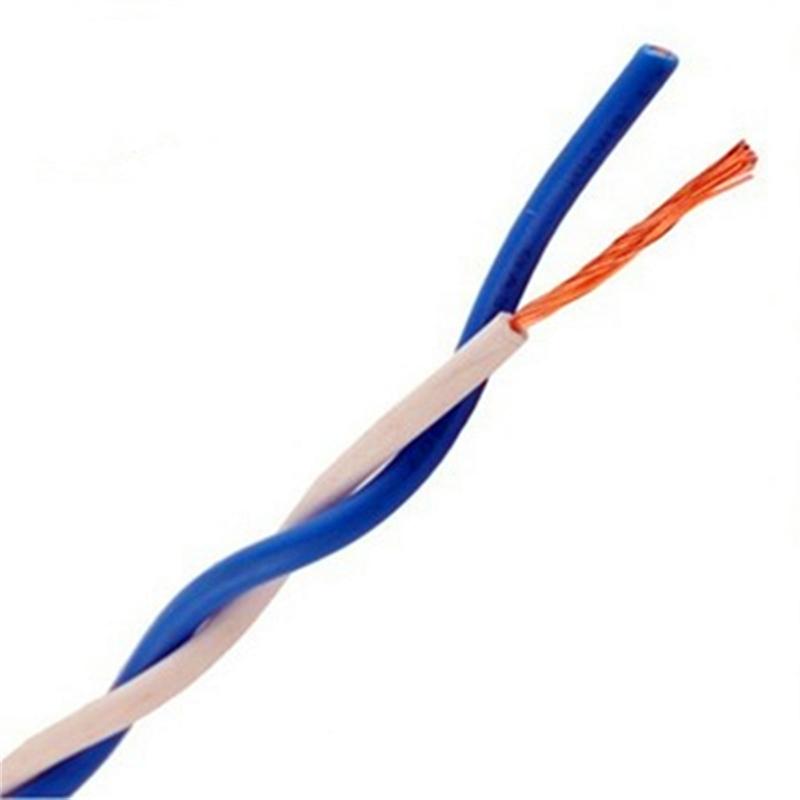

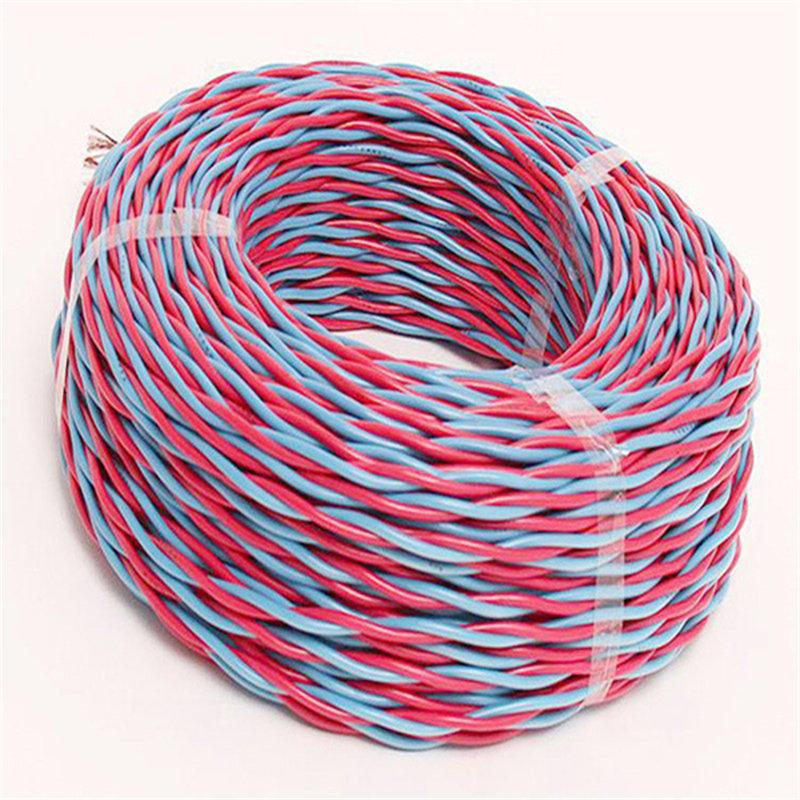

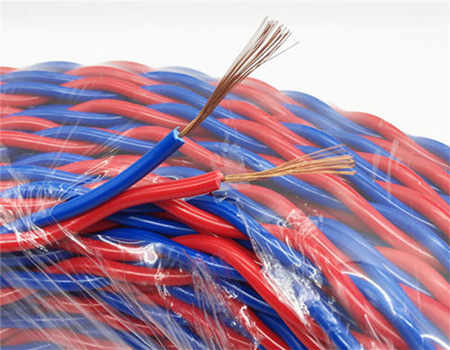

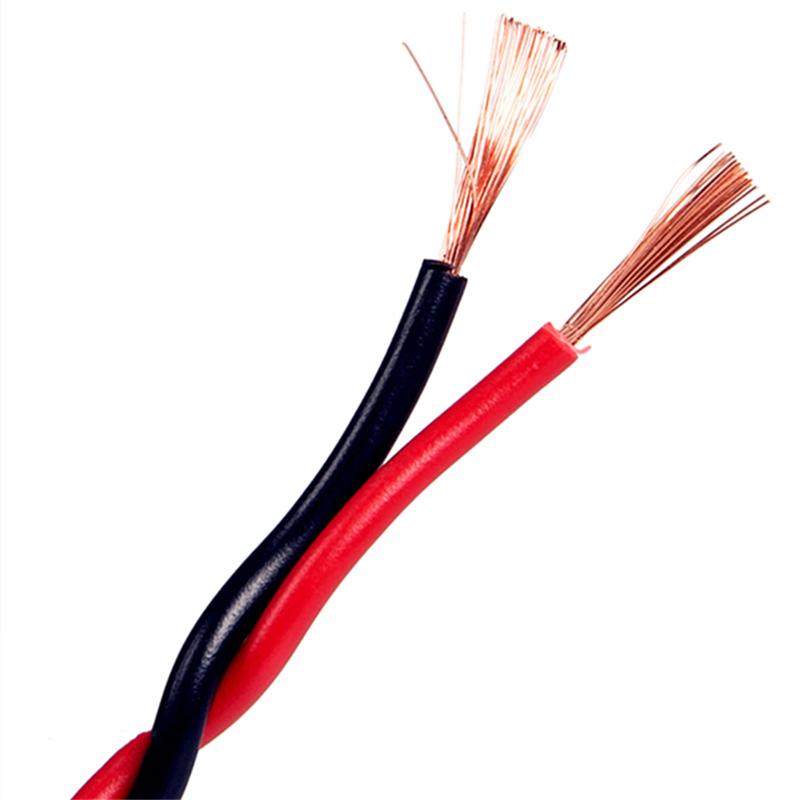

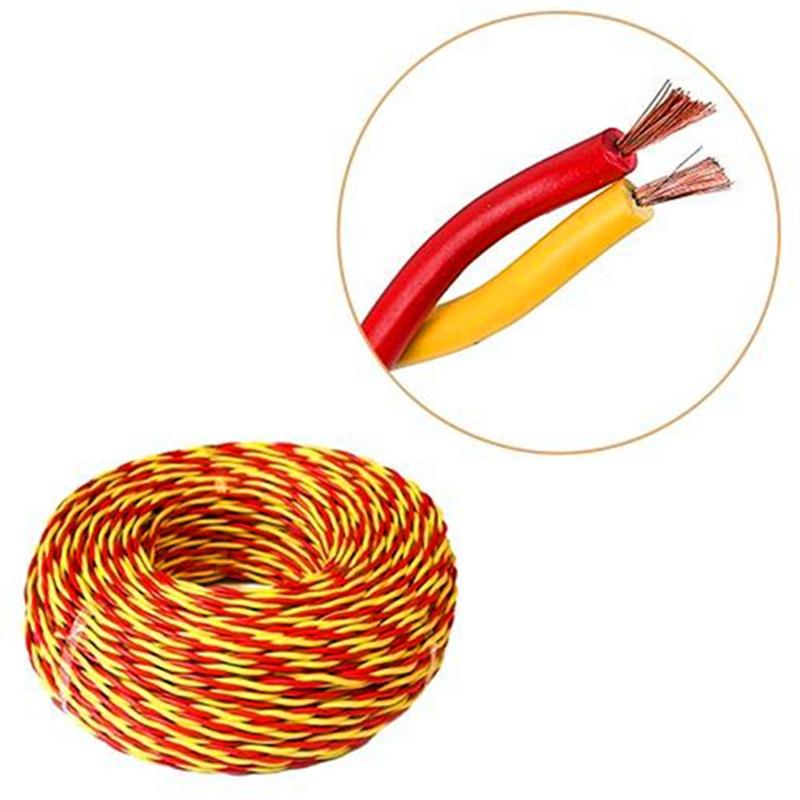

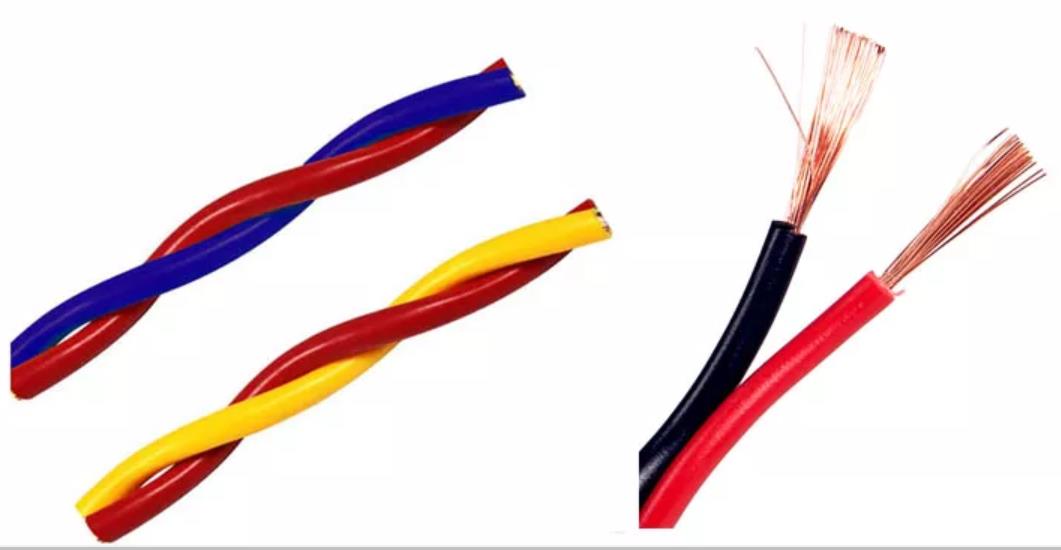

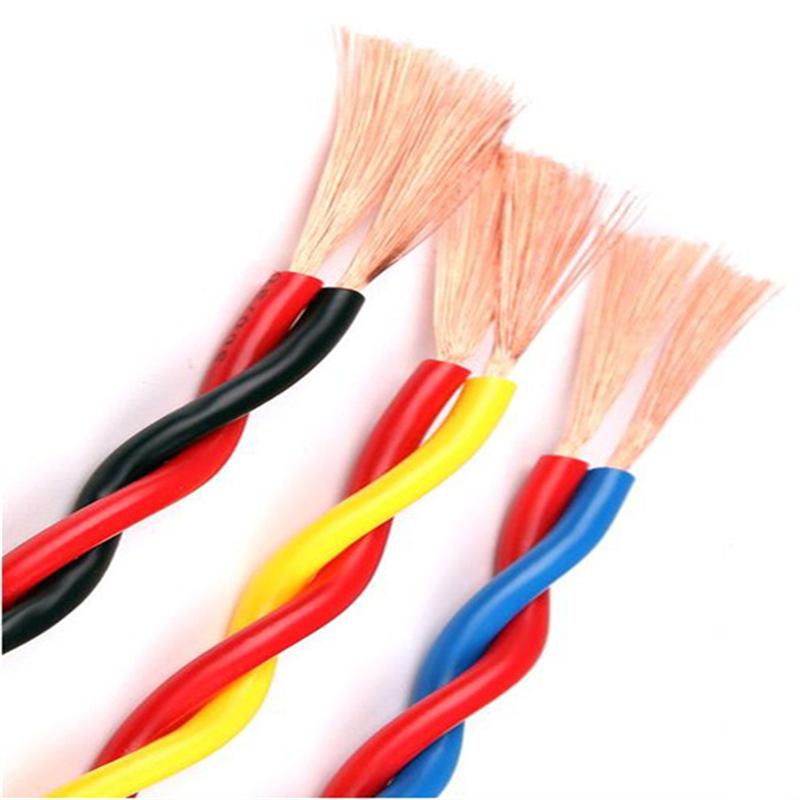

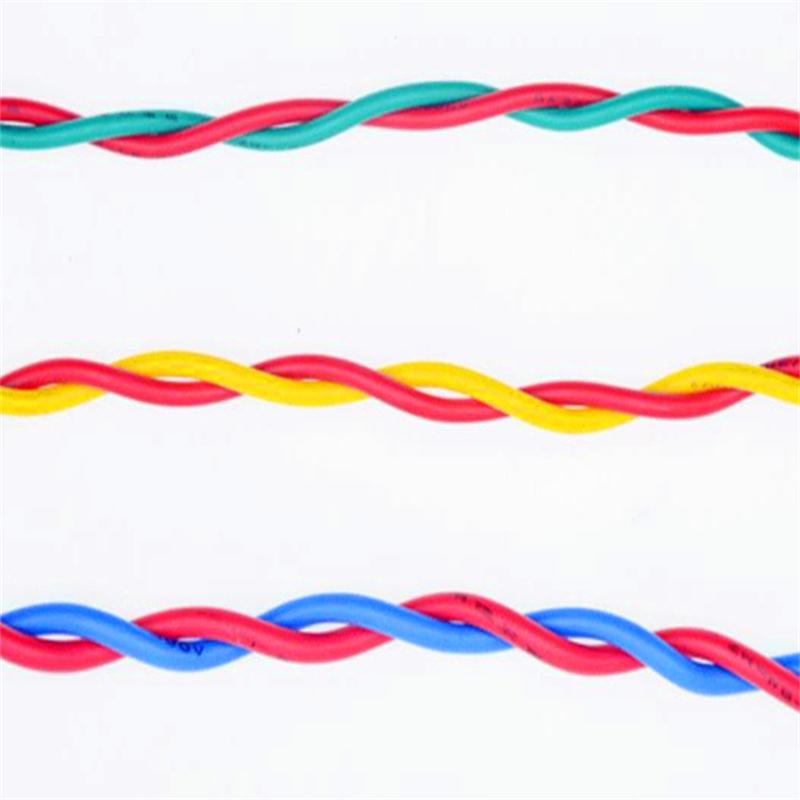

RVS PVC Insulated Flexible Twisted Electrical Wire and Cables.
RVS twin twisted flexible wire refers to the cable of one flexible insulated core twisted with another flexible insulated core with the voltage 300/500V. We supply different types of twisted pair cables with China National Standard
JB/T 8734.3-2016.
Brand:
SeebestItem NO.:
Seebest-EX-010Order(MOQ):
3000Payment:
T/T, L/C, Cash.Product Origin:
Xiamen City, China.Color:
Red, yellow, blue, green, brown, black, white, greyShipping Port:
Xiamen port, China.Lead Time:
Within 3-7 working days as soon as we received the deposit.RVS PVC Insulated Flexible Twisted Electrical Wire and Cables
PRODUCTS NAME
RVS PVC Insulated Flexible Twisted Electrical Wire and Cables.
PRODUCTS KEYWORDS
RVS, flexible twisted cable, tranded copper wire, pvc insulated cable, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
RVS PVC Insulated Flexible Twisted Electrical Wire and Cables, it applies to the connecting line of home appliances, instrumentation, power lighting with AC rated voltage 300/300V.
RVS PVC Insulated Flexible Twisted Electrical Wire and Cables. It can be used to power electrical control signal and the switching signal transmission . RV wire and cable soft structure design, conductor bending radius is small, and is suitable for wet and oil installations. Meanwhile, RV cables in access to the CCC and CE mark certification, in line with HD (EU harmonized standards) requirements applicable not only to the Chinese market, but also for the European market.
PRODUCTS STRUCTURE
RVS PVC Insulated Flexible Twisted Electrical Wire and Cables, the structure as below:
---Conductor Material
Plain annealed copper wire, stranded Class 5, or Class 6.
---Insulation Material
Flexible PVC (polyvinyl chloride).
---Sheath Material
Non-Sheath.
aPRODUCTS DIMENTIONS
| Description of Cable | Products Main Technical Sheet |
| Products Name | RVS PVC Insulated Flexible Twisted Electrical Wire and Cables. |
| Conductor Material | Plain annealed copper wires, stranded Class 5, or Class 6. |
| Conductor Structure | 84/0.20 mm. |
| Insulation Material | Flexible PVC (Polyvinyl Chloride). |
| Insulation Thickness | 0.8 mm. |
| Insulation Colour | Red, black; red, blue; yellow, green; black, white; or others. |
| Sheath Material | Non-sheath. |
| Conductor Cross-section | 2 x 2.5 mm2. |
| Core Number | Two cores, 2 cores, 2C. |
| Out Diameter | 7.2 mm. |
| Voltage Rate | 300/300V (U0/U). |
| About Net Weight | 63 kg/km. |
| Production Standard | JB/T 8734-2016, GB/T 5023-2008, IEC 60227, EN 50525. |
| Product Type | 100 Meters per roll. |
|
Max. Conductor DC Resistance at 20℃ in Air |
7.98 Ω/km. |
|
Min. Insulated Resistance at 70℃ |
0.009 MΩ.km. |
|
Max. Ampacity at 40 ℃ in air |
25A. |
